Hikmicro BX20 | 256 x 192 pixels

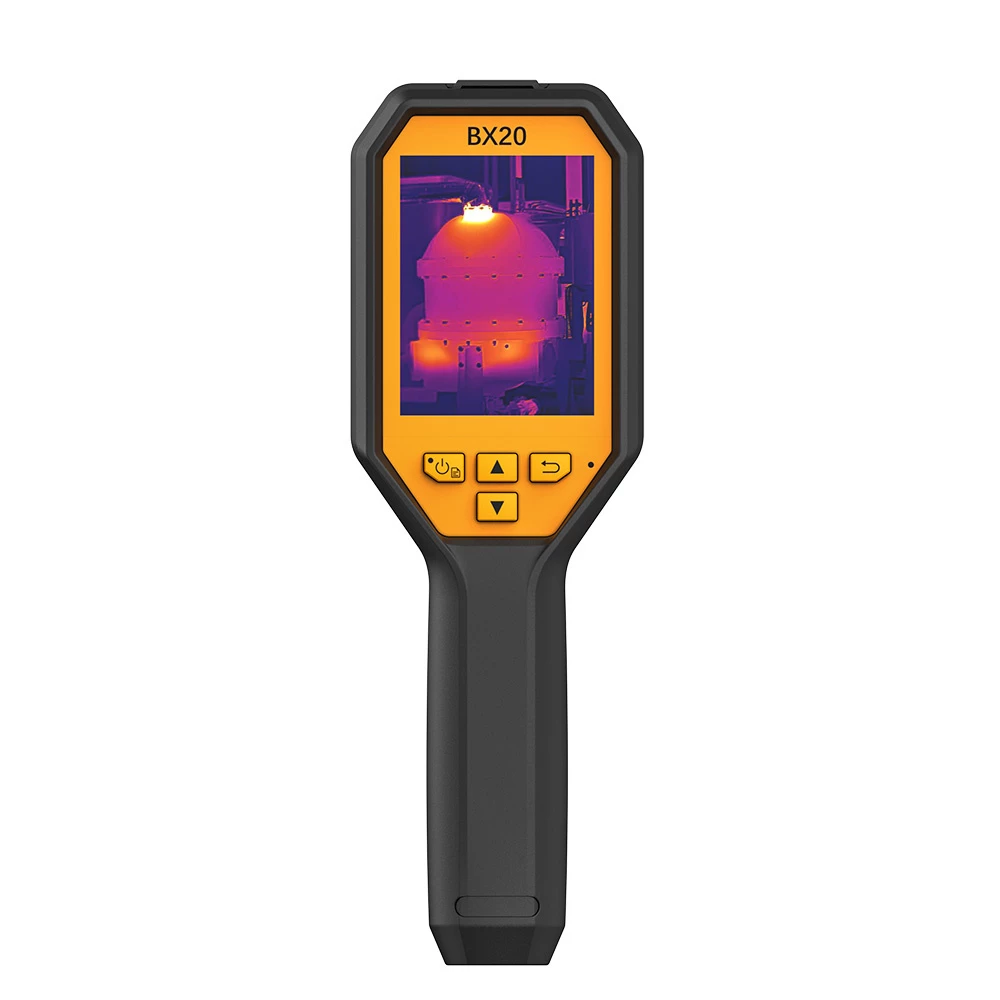

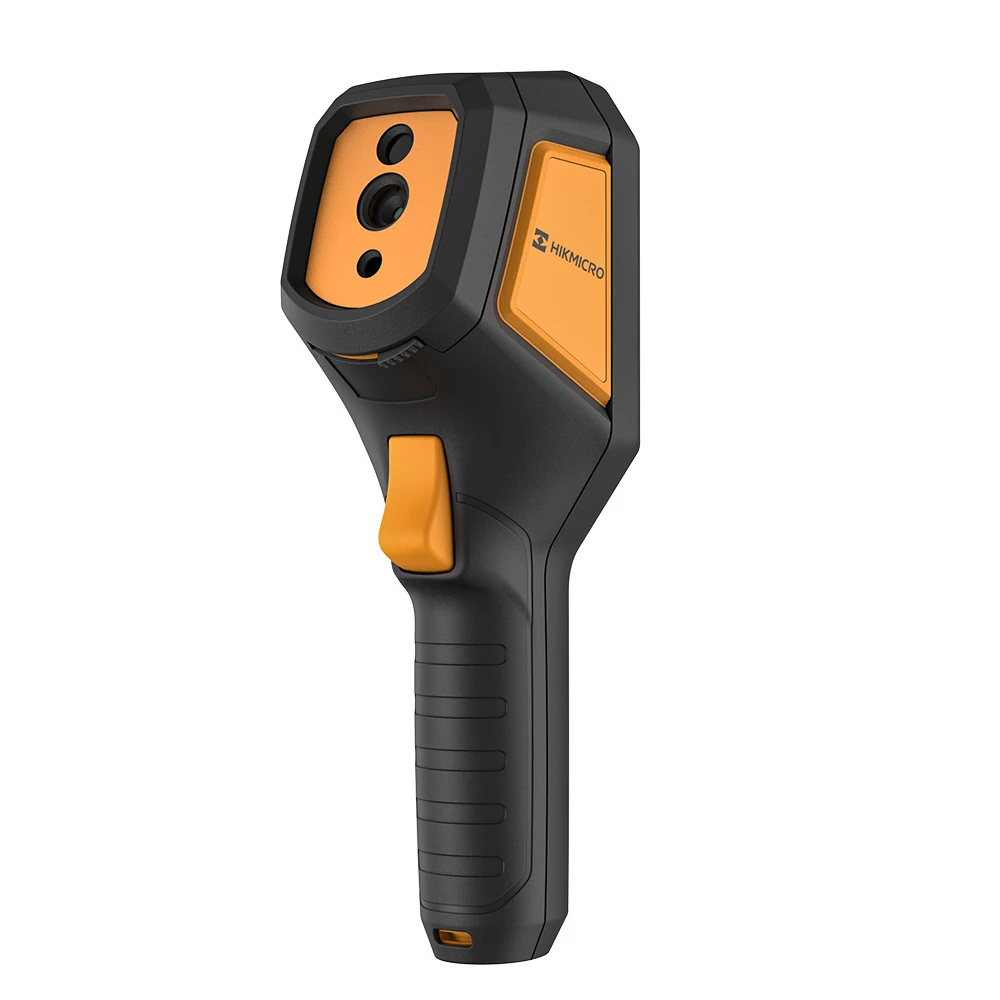

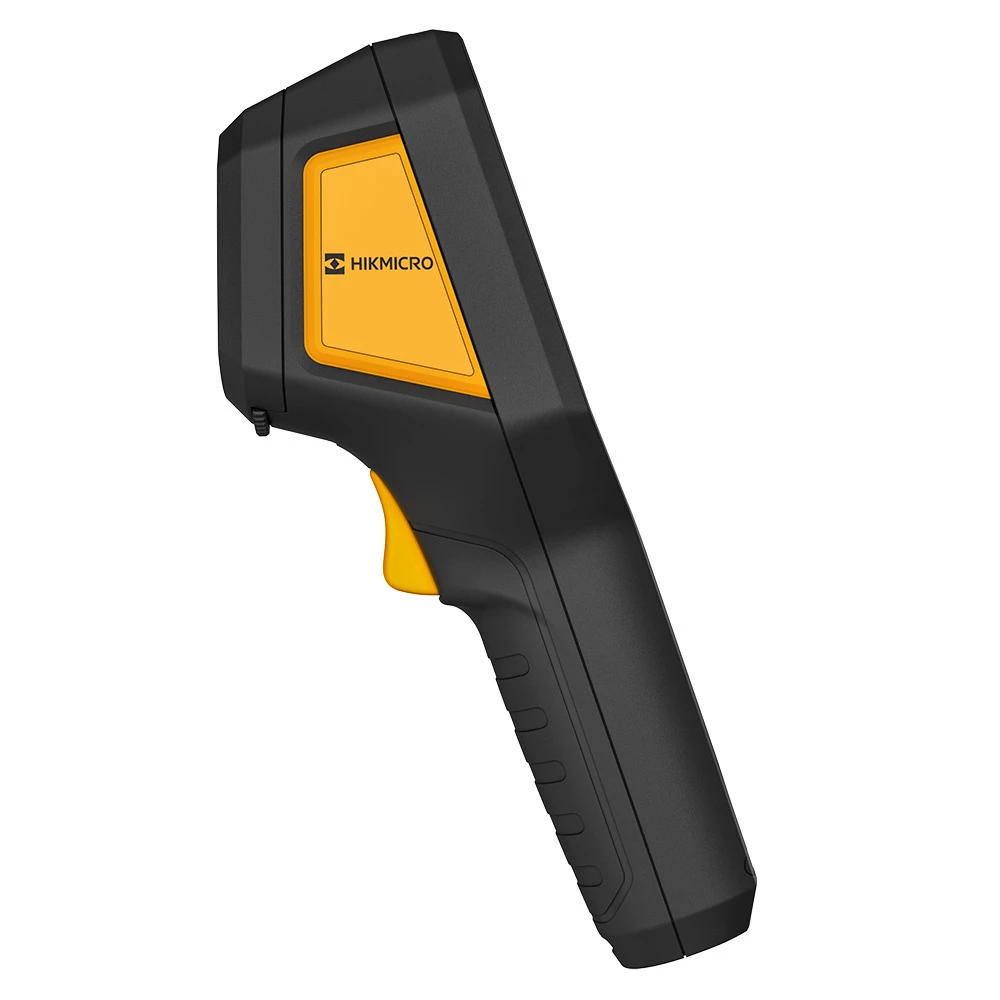

HIKMICRO BX20 thermal imaging camera 256 x 192 pixels

The HIKMICRO BX20 is certified to measure temperatures in various explosive environments, allowing it to quickly detect invisible faults. Equipped with a 256 x 192 resolution thermal detector and a 2 MP visual camera, it covers the temperature range from -20 °C to 550 °C, which is suitable for a variety of situations.

This camera allows personnel to quickly identify faults through accurate temperature measurements of high-temperature objects in the environment. At the same time, it supports decision-making and ensures safety.

Key features

• ATEX: II 3 G Ex ic IIC T6 Gc
• IECEx: Ex ic IIC T6 Gc
• Thermal resolution: 256 x 192 (49,152 pixels)
• NETD: < 40 mK (@ 25°C, F#=1.0)
• Temperature measurement range: -20°C to 550°C
• Accuracy: Max. (±2°C, ±2%), for ambient temperature 15°C to 35°C and object temperature above 0°C
• Measurement presets: Midpoint, Hotspot, Coldspot, user-set point
• 25 Hz frame rate
• 3.2" LCD screen
• Up to 6 hours of continuous operation
