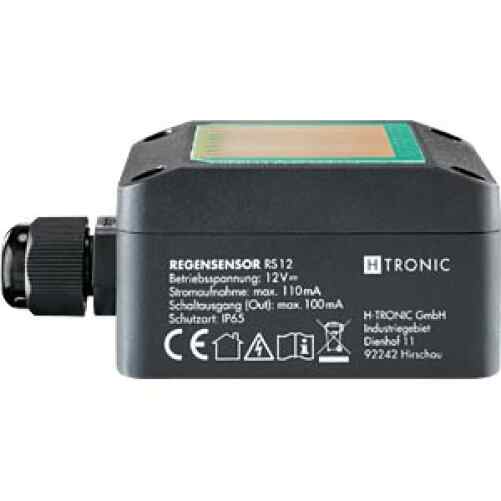

• Ambient temperature: -20 ... +60 °C.
• Dimensions: 65 x 50 x 35 mm
• Rain sensor weight: 64 g.
• Angle weight: 30 g.
• Supply voltage: 12 V DC
• Current consumption with heating: Max. 110 mA
• Switching Output (Out): Max. 100 mA
• Protection class IP65

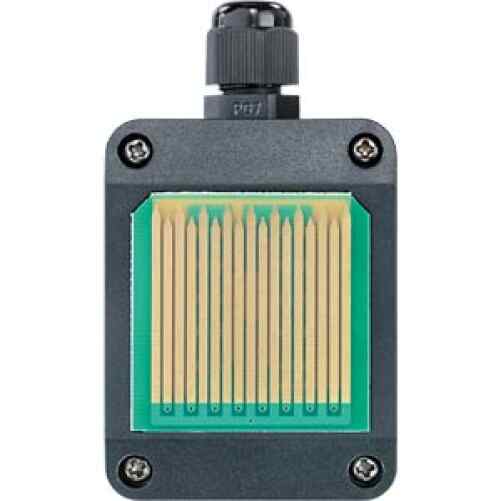

The RS 12 rain sensor responds to rain, snow and hail.
With additional control electronics, you can, for example, have a sunshade or awning retract in the event of precipitation, close a skylight or have only the precipitation reported.
A heater prevents freezing or condensation and ensures reliable operation.
The rain sensor is connected to the sensor input of the control electronics via the switching output designed as an open collector.

The following connections are possible:

• Relay
• Indicator light 12 V DC
• LED 12 V
• Control signal for PLC.

Mounting options
With the included mounting angle, you can mount the RS 12 on a flat roof, sloping roof or on a wall.

Included:

• Rain sensor
• 45° mounting angle
• 4 screws M 2.6 x 8 mm
