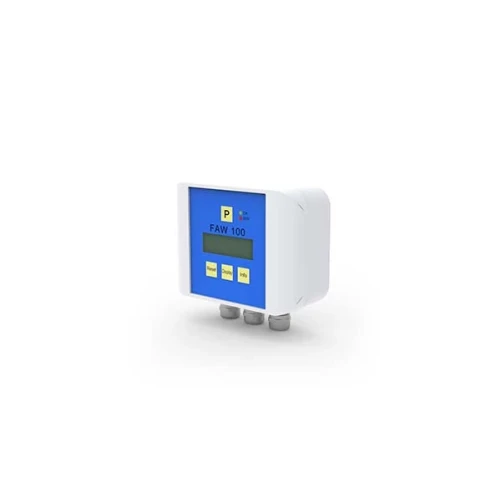

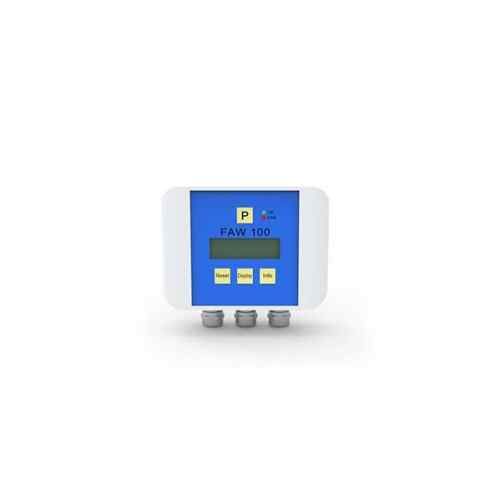

FAW 100 - Wall Mount Displays with analog and frequency output.
On backorder, please contact us for the expected delivery date.
The FAW 100 are high-precision panel-mounted frequency meters with control outputs.
All versions have a graphical display, intuitive user interface, scalable 4 - 20 mA output and frequency output. The K-factor and display size are freely adjustable, allowing the device to be adapted to any meter and application.
- Excellent rating: 96.42% had a good to very good experience
- Personal customer service and advice
- Extra discount possible for large quantities: Contact us
Description
The FAW 100 are high-precision panel-mounted frequency meters with control outputs.
All versions have a graphical display, intuitive user interface, scalable 4 - 20 mA output and frequency output. The K-factor and display size are freely adjustable, allowing the device to be adapted to any meter and application.
The input fits pickups with 24 V frequency output. Optional features include 20-point linearization, control inputs and outputs for batching or limit monitoring, and a built-in RS485 interface. For direct mains supply, a version with a wide input range (100 to 240 V AC) is available.
For fast test setups in the laboratory and simple setting of individual parameters, the PC-based controller SW EasyControl for WINDOWS is available free of charge.
Technical Data
- Frequency input for 24 V digital signals
- Analog Output: 4 to 20 mA
- 24V frequency output, freely scalable
- 20 point linearization of the measured value
- Control input und Control input
- RS485 interface
- Power Supply: 24 V DC or 100 to 240 V AC
Features
- High accuracy
- Intuitive user interface
- Remote control SW free of charge
