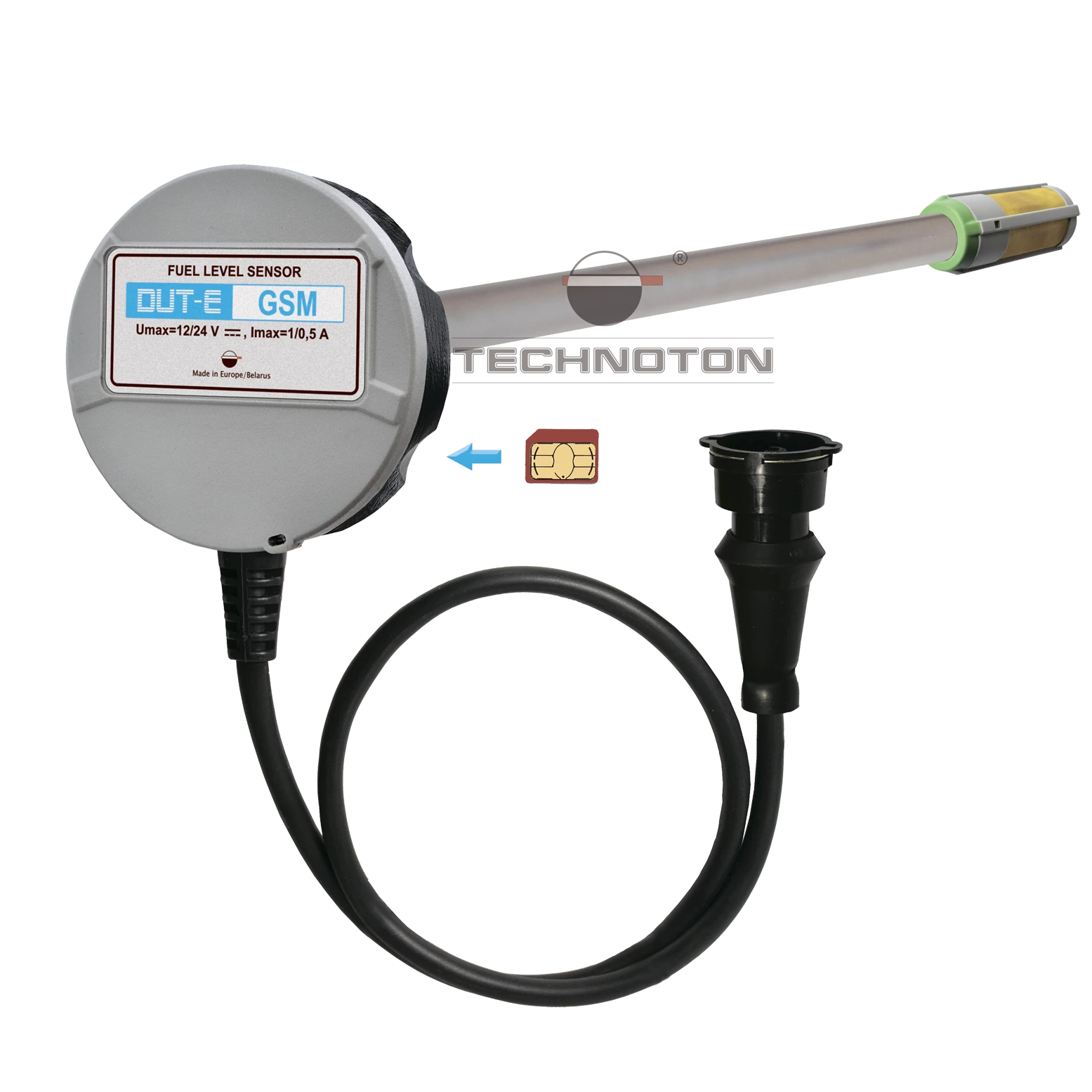

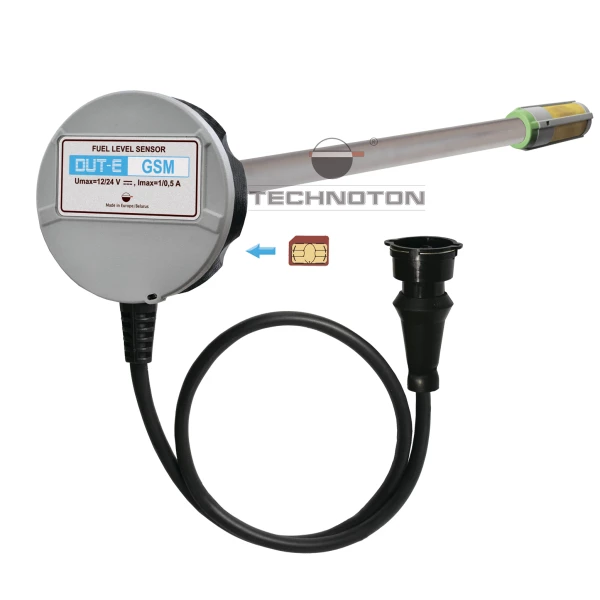

Fuel level sensor DUT-E with GSM and GPS

Built-in GPS receiver and GSM modem

DUT-E GSM enables measurement of fuel tank volume and real-time tracking of satellite positions via GPS and GLONASS. Data is transmitted to the Internet via mobile GSM network. DUT-E GSM - out-of-the-box hardware solution for fuel monitoring and vehicle location tracking.

Remote configuration via the Internet

DUT-E GSM settings can be changed locally during fuel level sensor installation or remotely via the Internet. The technical support specialist can change the settings from the office, without any physical contact with the sensor and without asking the fleet manager to stop the vehicle, where the sensor is installed.

Recognize events and send ready-made reports

DUT-E GSM generates up to 20 different ready-to-use analytical reports, with fuel volume data, vehicle location, speed, direction of movement, etc. Regular reports are generated (from 1 second to 24 hours) or after event recognition. Event is a situation where the operating parameter changes, e.g. engine start/stop, tank refill, fuel theft from tank, speeding, etc.

Operation without a server

DUT-E GSM can operate without a telematics server, as reports are sent directly to the user via SMS and e-mail. This feature is especially useful for owners of stationary machines, who do not need GPS position, but do need wireless transmission of fuel data.

We can manufacture sensors of any insertion length, up to 1000 mm (price + 10%), Maximum extension of measuring probe - 3000 mm, from 1000 mm on request.

*Install the DUT-E in the geometric center of a fuel tank.

Accessories:

• Mounting kit MK DUT-E
• Service adapter S6 SK и S6 BT
• Additional section DUT-E
• Summator DUT-E SUM
