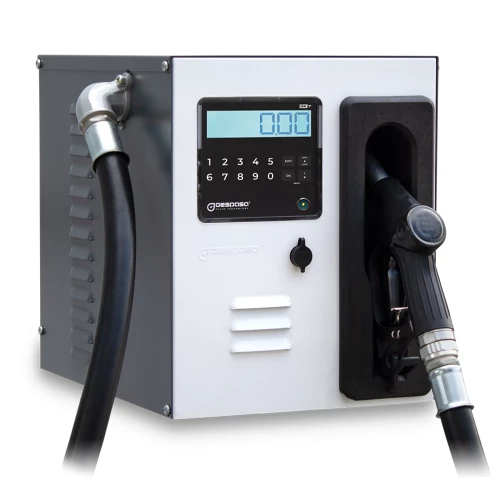

The compact supply kits with controller are suitable for the diesel own consumption supply, measuring and control for fleet vehicles.
Its installation is suitable and advisable for transport companies, private vehicle fleets, agricultural companies,...
It is composed of:
CHASSIS:
- Made of steel and stainless steel
- Special interior and exterior treatment against corrosion
- Finished with brilliant epoxid paint
- Weatherproof
PUMP:
- self-suction, eccentric with self-adjusting blades
PULSER:
- MGI-110 90º Hall Effect - Accuracy ±0.5 %
CONTROLLER:
- GK-7 own consumption
NOZZLE
- automatic
HOSE
- 4 m delivery diesel hose double layer, with adapters in both ends
COMPACT 75K-60-230 V - 60 users - 200 services
- IRON-75 230 VAC self-suction with self-adjusting blades
- Flow rate: 65-70 l/min
Size and weight (approx.):
- Dim.: 405x460x405 mm (length x width x height)
- Weight: 39.5 kg
COMPACT 100K-60-230 V - 60 users - 200 services
- AG-100 230 VAC self-suction withself-adjusting blades -*Ask for 24 V model
- Flow rate: 75-85 l/min
Size and weight (approx.):
- Size: 405x460x405 mm (length x width x height)
- Weight: 32.5 kg
