Pulse flow meter for diesel, gasoline

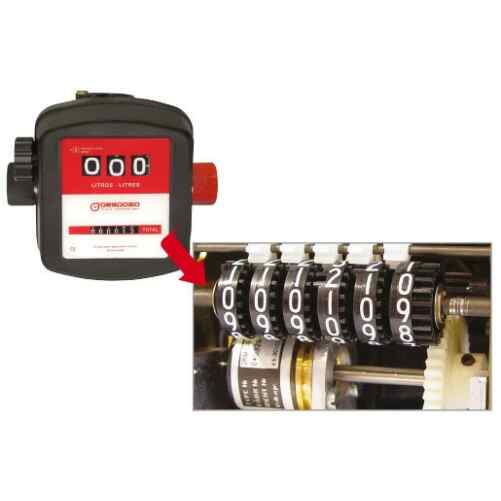

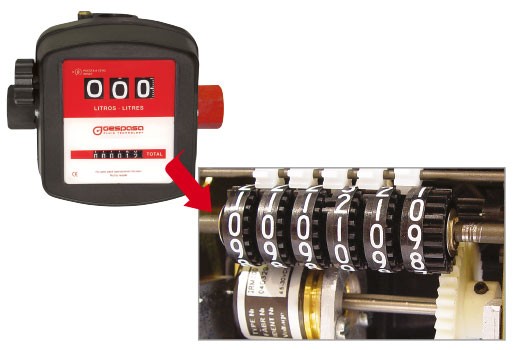

This meter has the same features as the MG-80 mechanical meter with a pulser inside of 2 communication channels that allow connection to a proprietary consumption controller.
It is equipped with a side bus and 90 cm connection cable. Pulses per liter: 10 pulses per channel
- MGI-80 - Mechanical aluminum meter with pulse output - Type: 32050-CF00000
- MGI-80V - Mechanical aluminum meter with viton hinges and pulse output - Type: 32230-CF00000
- Flow rate: 15-90 l/min
- Accuracy: ±1%
- Partial indicator of 3 digits and totalizer of 6 digits
- Maximum working pressure: 3.5 bar
- Maximum temperature: 60ºC
- Minimum temperature: -10 ºC
- Polyamide + fiberglass housing
- Connection 1″ GAS (BSP) with 3 inlets and 2 outlets
- It comes with 2 additional Male/Female 1″ GAS (BSP) adapters (other threads on order). The 1″ GAS (BSP) red adapter has a built-in 350 µm (micron) filter screen.
- It is suitable for hydrocarbon fluid (refer to other fluids).
- Size and weight (approx.):
- Dim.: 150x150x170 mm (length x width x height)
- Weight: 1.6 kg
