Hikmicro AD21 Acoustic Leak Detector

HIKMICRO AD21 Akoestische Lekdetector 1024 x 600 resolutie

The Hikmicro AD21 is an acoustic leak detector that uses advanced sound processing techniques. The system detects sound waves from water leaks and converts them into audible sounds and readings perceptible to the human ear.

The HIKMICRO acoustic leak detector AD21 is an advanced instrument designed specifically for technicians and plumbers. It is designed to locate leaks in piping, water supplies, and both residential and commercial buildings.

This instrument is equipped with four adjustable digital band-pass filters, with a maximum gain of 80 dB. The filtering and amplification of sound frequencies allows you to accurately identify leakage points.

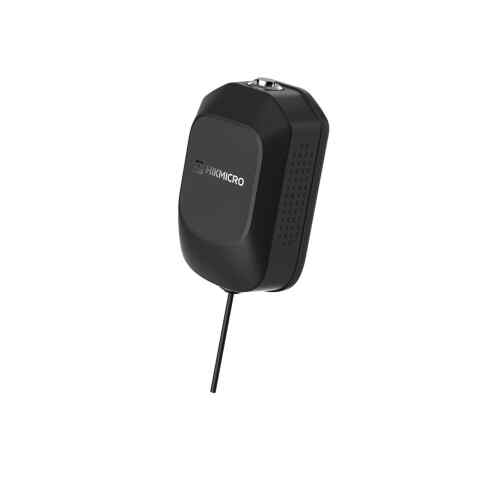

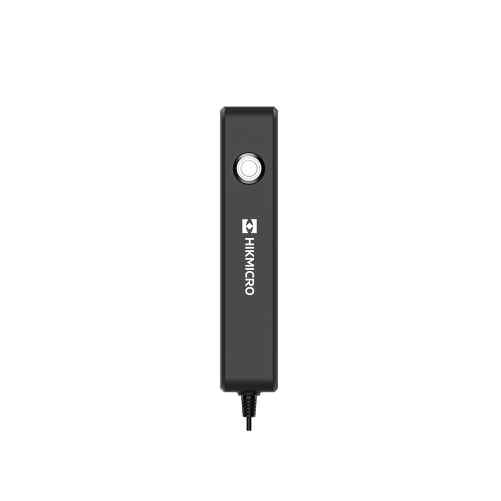

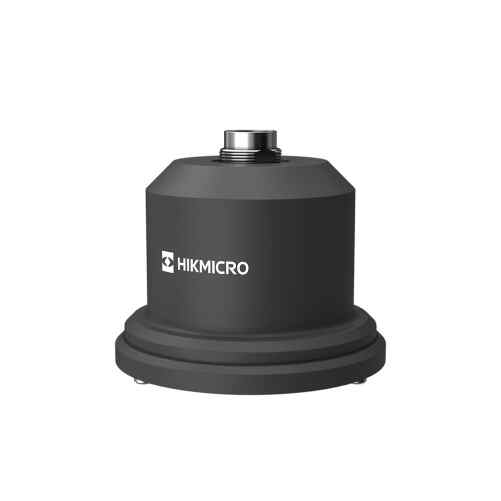

The device can be widely applied with both handheld sensor and pick-up sensor. In addition, overlooked leaks can be detected, minimizing resource waste and loss.

The AD21 uses the fundamental operating principle based on the propagation characteristics of sound waves and shock waves. When water flows through a leakage point in the pipeline, it generates specific sound and shock wave patterns. The detector receives and analyzes these signals to accurately determine the location of the leak.

Using advanced sound processing techniques, the AD21 detects sound waves from water leaks and translates them into audible sounds and readings that can be perceived by the human ear.

Key features:

• Supports four adjustable digital band-pass filters
• Frequency range from 150 Hz to 7500 Hz

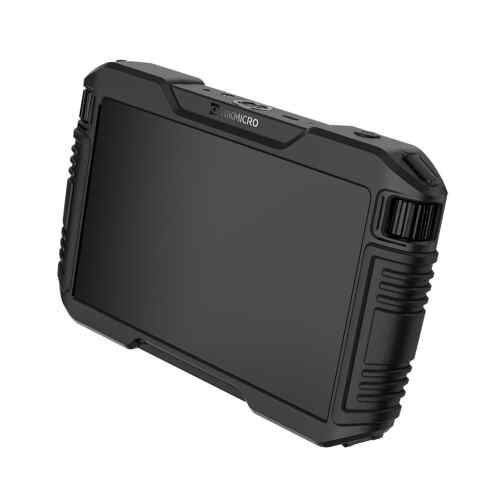

• 7″ LCD touchscreen with a resolution of 1024 x 600
• Up to 11 hours of continuous use
