VZOA 20 Aquametro Oil Meter - (30-1000 Max 1500 litre/hr) Pulse Output = 1 Litre/Pulse
€1.270,00 (€1.536,70 incl. VAT)
VZOA 20 Contoil Oil Meter - (30-1000 Max 1500 litre/hr)
Mechanical Totalizer (Litres) Non-reset
Pulse Output = 1 Litre/Pulse Reed Pulse
20mm Flanged PN25 (JIS and ANSI no additional cost)
Product Code: 92304
Available on backorder
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
VZOA 20 Contoil Oil Meter - (30-1000 Max 1500 litre/hr)
Mechanical Totalizer (Litres) Non-reset
Pulse Output = 1 Litre/Pulse Reed Pulse
20mm Flanged PN25 (JIS and ANSI no additional cost)
Max Temp 130C
Max Pressure PN25
Positive Displacement / Low Pressure Drop Design
Accuracy 0.5% of actual value
8 Digit Totaliser
Product Code: 92304
Specification
VZOA 20 FL 130/25-RV1
Â

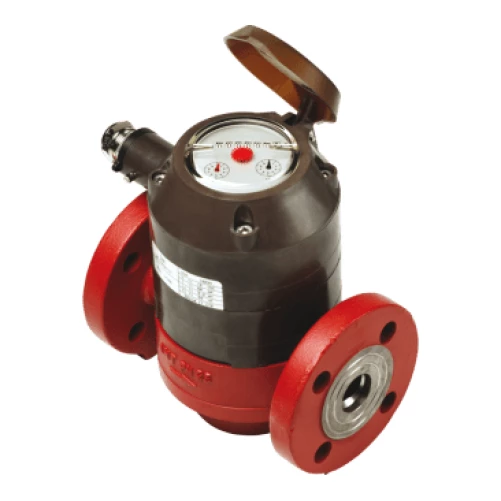

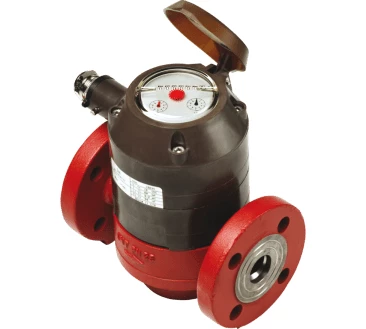

CONTOIL® oil meter VZOA 20 FL 130/25-RV 1
Ring piston meter for mineral oil, with rotatable roller counter
Nominal diameter: DN 20 mm
Connection for flanges: DN 20 to DIN 2501
Nominal pressure: PN 25 bar
Installation length: 165 mm
Installation position: horizontal / vertical
Temperature, max: 130 °C
Measuring range (at visc. 1...20 mPa.s): 30...1500 l/h
Max. continuous flow Qn: 1000 l/h
Max. measuring deviation: ± 0.5% of measured value
Repeatability: ± 0.2%
Narrowest readable value: 0.1 l
Registration capacity: 10 Mio l
With RV Reed pulser integrated in register unit
Contact load max: 48 V AC/DC, 50 mA, 2 W
Pulse value: 1 l
| Weight | 10 kg |
|---|
