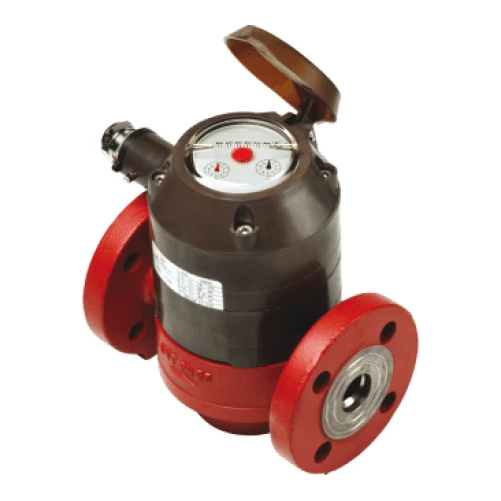

VZOA 15 Aquametro Oil Meter - (10-400 Max 600 litre/hr) Pulse Output = 0.1 Litre/Pulse Reed Switch
€1.505,00 (€1.821,05 incl. VAT)
VZOA 15 Contoil Oil Meter - (10-400 Max 600 litre/hr)
Mechanical Totalizer (Litres) Non-reset
Pulse Output = 0.1 Litre/Pulse Reed Switch
15mm PN25 Flanges (JIS and ANSI no additional cost)
Product Code: 92316
Available on backorder
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
VZ0A 15 Contoil Oil Meter - (10-400 Max 600 litre/hr)Â
Ring Piston or Oscillating Piston Type
Mechanical Totalizer (Litres) Non-reset
Pulse Output = 0.1 Litre/Pulse Reed Switch
15mm PN25 Flanges (JIS and ANSI no additional cost)
Max Temp 180°C
Max Pressure PN25
Positive Displacement / Low Pressure Drop Design
Accuracy ± 0.5% of actual value
8 Digit Totaliser
Product Code: 92316
Specification
VZOA 15 FL 180/25-RV0,1
CONTOIL® oil meter VZOA 15 FL 180/25-RV 0.1
Ring piston meter for mineral oil, with rotatable roller counter
Nominal diameter: DN 15 mm
Connection for flanges: DN 15 to DIN 2501
Nominal pressure: PN 25 bar
Installation length: 165 mm
Installation position: horizontal / vertical
Temperature, max: 180 °C
Measuring range (at visc. 1...20 mPa.s): 10...600 l/h
Max. continuous flow Qn: 400 l/h
Max. measuring deviation: ± 0.5% of measured val-ue
Repeatability: ± 0.2%
Smallest readable value: 0.01 l
Registration capacity: 1 Mio l
With RV Reed pulser integrated in register unit
Contact load max: 48 V AC/DC, 50 mA, 2 W
Pulse value: 0.1 l
| Weight | 10 kg |
|---|
