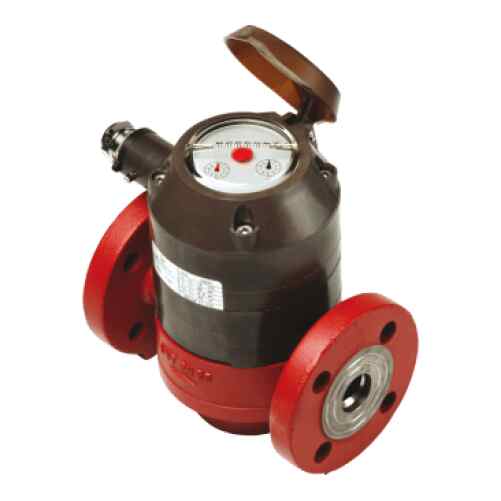

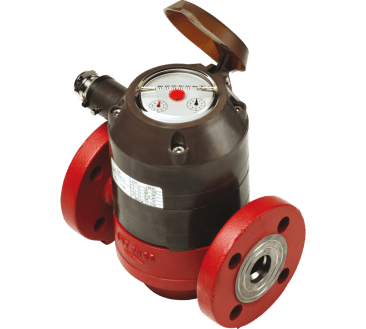

VZ0A 15 Contoil Oil Meter - (10-400 Max 600 litre/hr)
Ring Piston or Oscillating Piston Type
Mechanical Totalizer (Litres) Non-reset
Pulse Output = 0.01 Litre/Pulse Inductive Pulser
15mm PN25 Flanges (JIS and ANSI no additional cost)
Max Temp 130°C
Max Pressure PN25
Positive Displacement / Low Pressure Drop Design
Accuracy ± 0.5% of actual value
8 Digit Totaliser
Product Code: 92302
Specification
CONTOIL® oil meter VZOA 15 FL 130/25-IN 0.01
Ring piston meter for mineral oil, with rotatable roller counter
Nominal diameter: DN 15 mm
Connection for flanges: DN 15 to DIN 2501
Nominal pressure: PN 25 bar
Installation length: 165 mm
Installation position: horizontal / vertical
Temperature, max: 130 °C
Measuring range (at visc. 1...20 mPa.s): 10...600 l/h
Max. continuous flow Qn: 400 l/h
Max. measuring deviation: ± 0.5% of measured val-ue
Repeatability: ± 0.2%
Smallest readable value: 0.01 l
Registration capacity: 1 Mio l
With built-on inductive IN pulser as per DIN 19234
Supply 5...15 V DC, signal at 8 V DC  1 mA /  3 mA
Pulse value: 0.01 l
