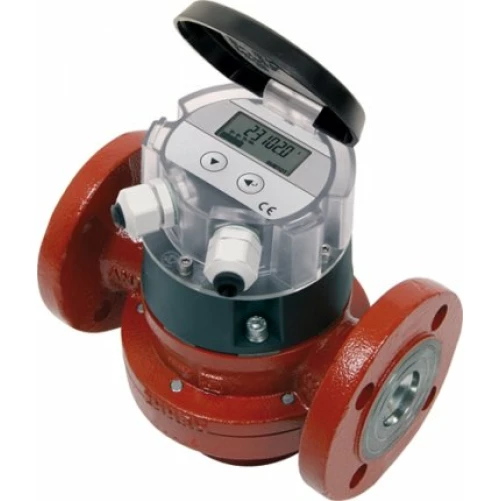

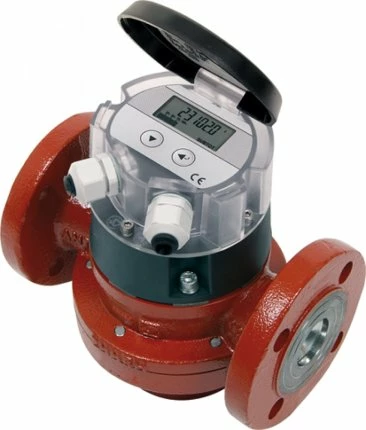

VZFA II 40 Contoil Oil Meter - (225-6000 Max 9000 litre/hr)
Digital Display (Rate/Total/Temp/Mass)
40mm Flanged
PN25 Product Code:Â
Max Temp 130C
Max Pressure PN25 Positive Displacement / Low Pressure Drop Design
Accuracy 0.5% of actual value
8 Digit Totaliser 4-20mA & Pulse Output
Specification
VZFA II 40 FL 130/25
CONTOIL® flow meter for mineral oil.
Electronic counter with display
Characteristics:
Display of total volume, resettable
trip volume (up to 8 totalizers,
4 or resettable), flow rate,
temperature, mass and normalized
volume in m3, liters, US gallons or
tons, kilograms and pounds.
Programmable outputs.
Nominal diameter: DN 40mm
Connection flange: DN 40
Nominal pressure: PN 25bar
Installation length: 300mm
Installation position: horiz / vert
Temperature, max: 130°C
Measuring range: 225...9000l/h
Max. continuous flow: 6000l/h
Max. deviation: ±0.5% of value
Repeatability: ±0.2%
Registration capacity: 100Mio
LCD display: 8 positions, 8mm high
Outputs: 1 analog and 2 digital
Analog: 4...20mA
Digital Pulse, Frequency, Logic
Nominal voltage: 24V DC
Power supply via 4...20mA: 6...30V DC
Protection class: IP66/IP68/IP69
Ambient temperature: -25...+70°C
