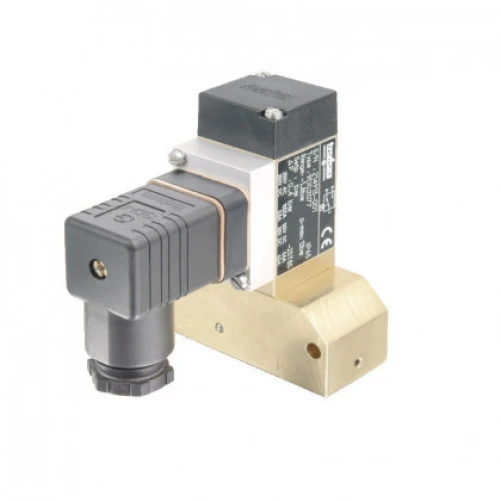

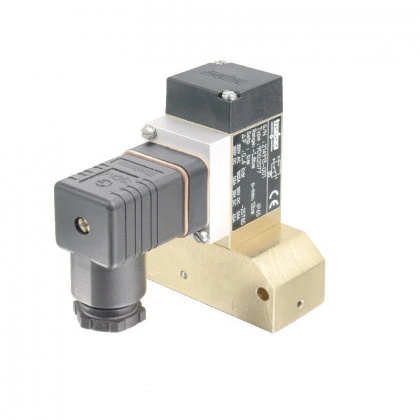

Trafag Differential pressure switches 9D0 PSTD4 / -1...+6 Bar

Trafag Differential pressure switches 9D0 PSTD4 / -1...+6 Bar

€443,58 (€536,73 incl. VAT)

On backorder, please contact us for the expected delivery date.

Type: PSTD4
Code: 9D0.2076.770.04.15.58.V3
Measuring range [bar] : -1...+6
Measuring element : bellows
Output : microswitch SPDT
Process connection : G1/4 BSP, G1/8″BSP, M10x1 or flange connection
Enclosure : IP65
Plug : DIN 43650
Ambient temperature [ºC] : -25 to +85
Ship Approval: ABS, BV, DNV, GL, KRS, LRS, RMRS, RINA

Product information and datasheets →

Available on backorder

Why buy from Sensors.nl:

Excellent rating: 96.42% had a good to very good experience
Personal customer service and advice
Extra discount possible for large quantities: Contact us

SKU: 9D0.2076.770.04.15.58.V3 / PSTD4 Categories: Trafag, Trafag Pressure Switches Tags: 9D0.2076.770.04.15.58.V3 / PSTD4, Trafag Differential pressure switches 9D0, update2026

Description

Compact design
Rugged housing
High repeatability
Protection IP65 (with plug connector)
Any mounting position possible

Rate this product

Extra information

Weight	1 kg
Pressure range (Bar)	-1 … 6, -1 … 8
Differential pressure	0 … 4, 0 … 6
Pressure max.	12, 8
Switching differential	0.2 (fixed), 0.3 (fixed)
Brand	Trafag
