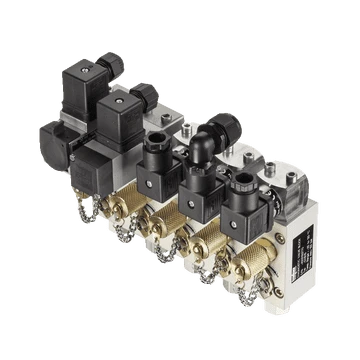

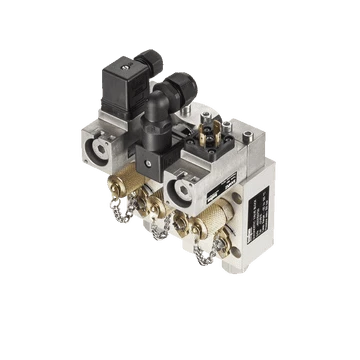

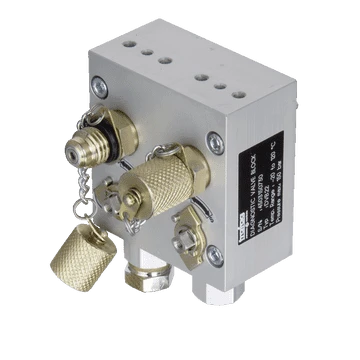

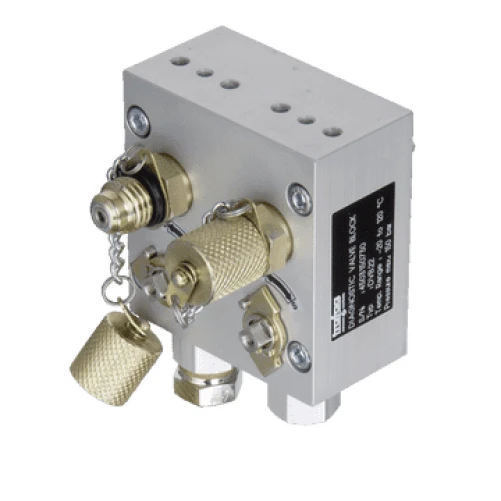

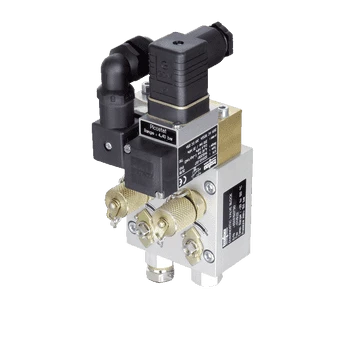

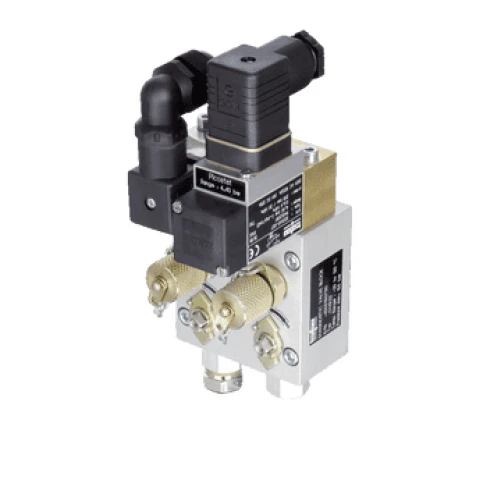

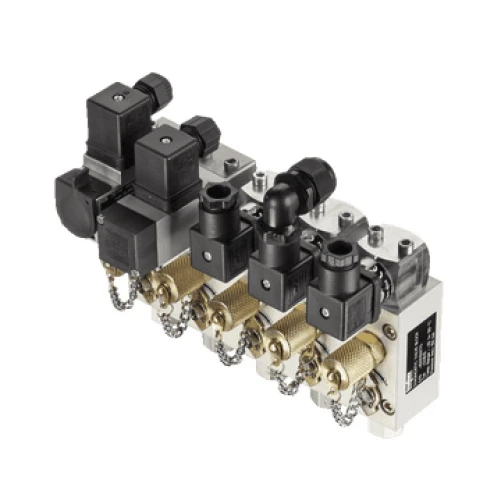

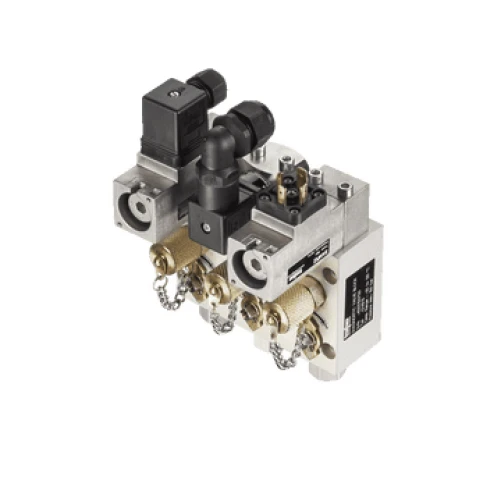

Trafag test valve DVB

• Product code DVB
• Designation Diagnostic Valve Block
• Product category Accessories
• Measuring range -0.8 ... 100 bar
• Ambient temperature -20 ° C ... + 120 ° C

Capabilities and types:

• DVB11 / 1 P-in, 1 test connection, 1 P-out
• DVB12 / 2 P-in, 2 test connection, 2 P-out
• DVB13 / 3 P-in, 3 test connection, 3 P-out
• DVB14 / 4 P-in, 4 test connection, 4 P-out
• DVB15 / 5 P-in, 5 test connection, 5 P-out
• DVB22 / 1 P-in, 2 test connection, 2 P-out
• DVB23 / 1 P-in, 3 test connection, 3 P-out
• DVB24 / 1 P-in, 4 test connection, 4 P-out
• DVB25 / 1 P-in, 5 test connection, 5 P-out
• DVB32 / 1 P-in, 1 test connection, 2 P-out
• DVB33 / 1 P-in, 1 test connection, 3 P-out
• DVB34 / 1 P-in, 1 test connection, 4 P-out
• DVB35 / 1 P-in, 1 test connection, 5 P-out
