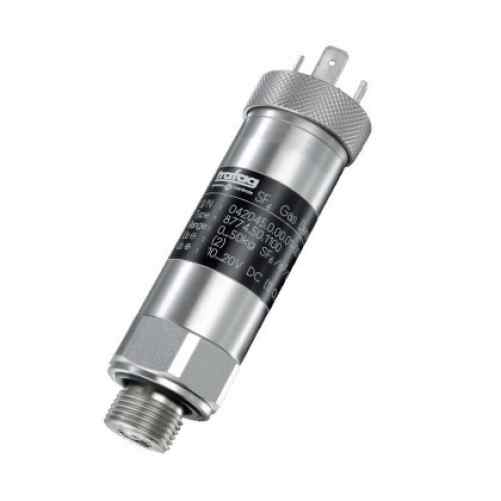

Trafag Gas Sealing Sensor 8774

Technical data:

• Applications: high voltage switches, medium voltage switches
• Dielectric strength: 250 VAC, 50 Hz
• Measurement principle: Oscillating quartz measurement
• Vibrations: 15 g (max. 6 mm), 5 ... 2000 Hz
• Media temperature: -40 ° C ... 70 ° C
• Shock: 100g / 6ms
• Ambient temperature: permanently -40 ... + 70 ° C, max. 200 hours per year, -55 ... + 70 ° C
• Protection: IP65
• Output signal: digital: current pulses
• Density signal: pulse frequency 10 ... 292 Hz, range 0 ... 60 kg SF6 / m3
• Analog: 6.5 ... 20 mA
• Density signal: current loop 10 ... 275 Hz, range 0 ... 56.1 kg SF6 / m3
• Measuring range: 0 ... 60 kg SF6 / m3, 10 ... 253 Hz
