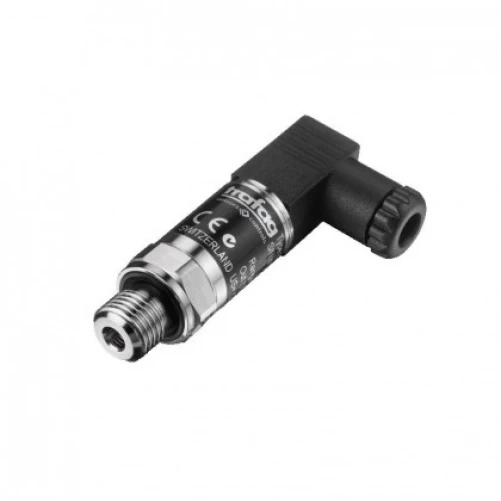

Trafag Pressure Transmitter DIN-conn NAT-8252 NAT4.0V / 0...4.0 Bar

€211,05 (€255,37 incl. VAT)

On backorder, please contact us for the expected delivery date.

Measuring range: 0...4.0 bar
Output: 0...10 VDC
Power supply: 24 (15...32) VDC
Accuracy: +/- 0.5 FS
Housing: stainless steel
Sensor: thin-film, 1.4542 (ASIC technology)
Electr. connection EN 175301-803C, spacing 9.4 mm, Mat. PA

Available on backorder

Why buy from Sensors.nl:

Excellent rating: 96.42% had a good to very good experience
Personal customer service and advice
Extra discount possible for large quantities: Contact us

Add to quote

SKU: 8252 76 2517 01 0000 0000 17 34 44 61 / NAT4.0V Categories: Pressure transmitters, Trafag Tag: update2026

Description

The industrial pressure transmitter NAT 8252 features an exceptionally long-term stable thin-film-on-steel sensor cell with triple (optionally 5-fold) overpressure protection. Optionally, the NAT 8252 is available as a pressure switch with 1 or 2 switching outputs. The robust design and wide temperature range from -40°C to +125°C qualify the NAT 8252 as the ideal solution for a wide range of demanding applications.

Rate this product

Extra information

Weight	1 kg
Pressure range (Bar)	0 ... 2.5, 0 ... 4, 0 ... 6, 0 ... 10, 0 ... 16, 0 ... 25, 0 ... 40, 0 ... 100, 0 ... 250, 0 ... 400, 0 ... 600
Output	0 ... 10 VDC, 4 ... 20 mA
Electrical connection	DIN EN175301-803-C
Overpressure max.	7.5, 12, 18, 30, 48, 75, 120, 300, 750, 1000, 1500
Nutrition	15 ... 32, 9 ...32
Accuracy @25°c typ.	± 0.5
Brand	Trafag

Downloads

Product Documents

Documents

Data sheet
