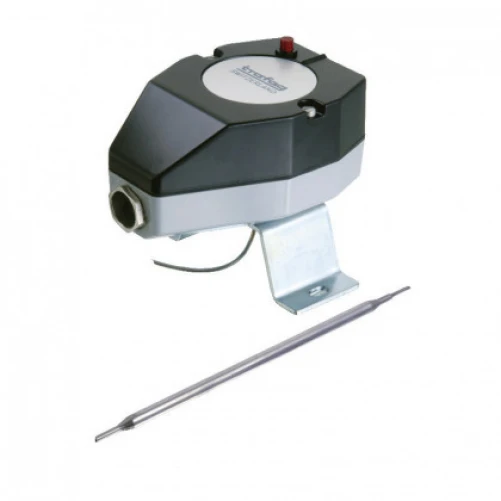

Trafag Limiter Thermostat IS...R

€196,25 – €214,99

Staff discount:

Quantity	Price
1 - 4	€196,25 – €214,99
5 - 9	€186,44 – €204,24
10 - 24	€176,63 – €193,49

Sensor material

Range (°C)

Sensor max.

Clear

96.42% Has a good to very good experience with SENSORS.NL
Personalized customer service
Spacious assortment with a wide range of top brands
Need an additional discount for quantities? Please contact us

SKU: N/A Categories: Immersion Thermostats, Trafag, Trafag thermostats

Measuring range [°C] : +5...+95 to 350.0
Sensor: mechanical
Capillary length: 2 mtr., Cu / stainless steel
Output : micro switch SPDT, reset function
Housing : Alu epoxy coated IP65
Ambient temperature [°C] : -30...+70
Accuracy: +/- 2% of full scale
Setting: internal
Reset: external
Calibrated for rising temperature

Download specifications

Rate this product

Weight	1 kg
Sensor material	1.4435 (AISI316L), Copper
Range (°C)	+20 … +150, +20 … +230, +5 … +95, +70 … +350
Sensor max.	105, 165, 250, 380
Capillary	2000 mm, 3000 mm
Brand	Trafag
