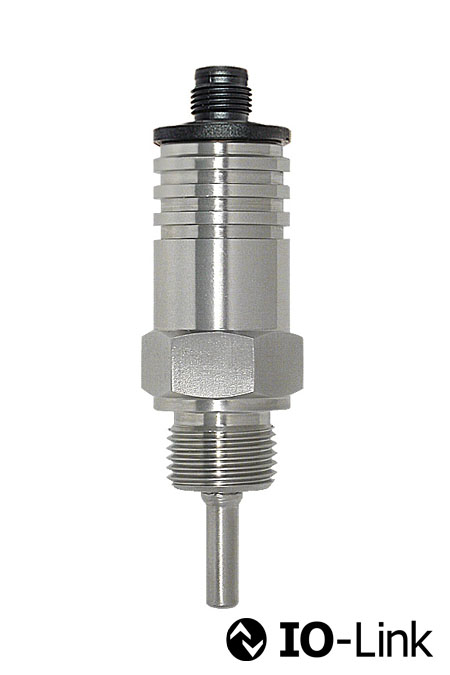

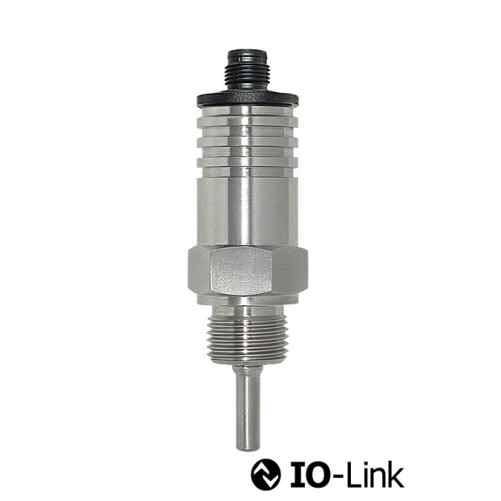

Modular temperature sensors with IO-Link type: MKTS-IO

€162,75 (€196,93 incl. VAT)

On backorder, please contact us for the expected delivery date.

Type: MKTS-IO
Transmitter: IO-Link
Sensor: Pt100 sensor, 3-wire
Installation length: 50 mm
Sensor tube diameter: 6 mm (standard)
Process connection: 1/2 "
Electrical connection: M12x1, 4-pole, metal
Configuration: inclusive (please specify at time of order)
Housing material: stainless steel 1.4571
Protection rating: min. IP65
Application range: -50 ... + 150 ° C
Other specifications on request, see datasheet

Available on backorder

Why buy from Sensors.nl:

Excellent rating: 96.42% had a good to very good experience
Personal customer service and advice
Extra discount possible for large quantities: Contact us

Add to quote

SKU: MKTS-IO-50-G1/2" Categories: IO-link, Müller IE, Recorders active, Sensors Tags: io sensors, io temperature sensors; io communication; io-link transducer, io transmitters, io-link, io-link sensors, update2026

Description

Technical characteristics:

Input: Pt100 / thermocouple type J / K / N
Measuring range: -50 ... + 200 ° C
Accuracy <0.02% of range
Operating temperature: -20 ... + 80 ° C
Output: IO-Link
Resolution: 16 bit Setting: via software (IO-Link interface)
Electrical connection: M12x1, 4-pole
Internal protection: fully encapsulated
Vibration resistant
Material: stainless steel 1.4571, PBT GF30
Protection rating: min. IP65

What is IO-Link?

IO-Link is the first worldwide standardized IO technology (IEC 61131-9) that communicates with sensors and actuators. The high-performance point-to-point communication is based on the long-established 3-wire sensor and actuator connection without additional requirements on the cable material. IO-Link is thus not a field bus, but the evolutionary further development of the hitherto proven connection technology for sensors and actuators.
