Name: RTAOM100-24
SKU: RTAOM100-24
Availability: InStock

RTAOM100-24

€45,00 (€54,45 incl. VAT)

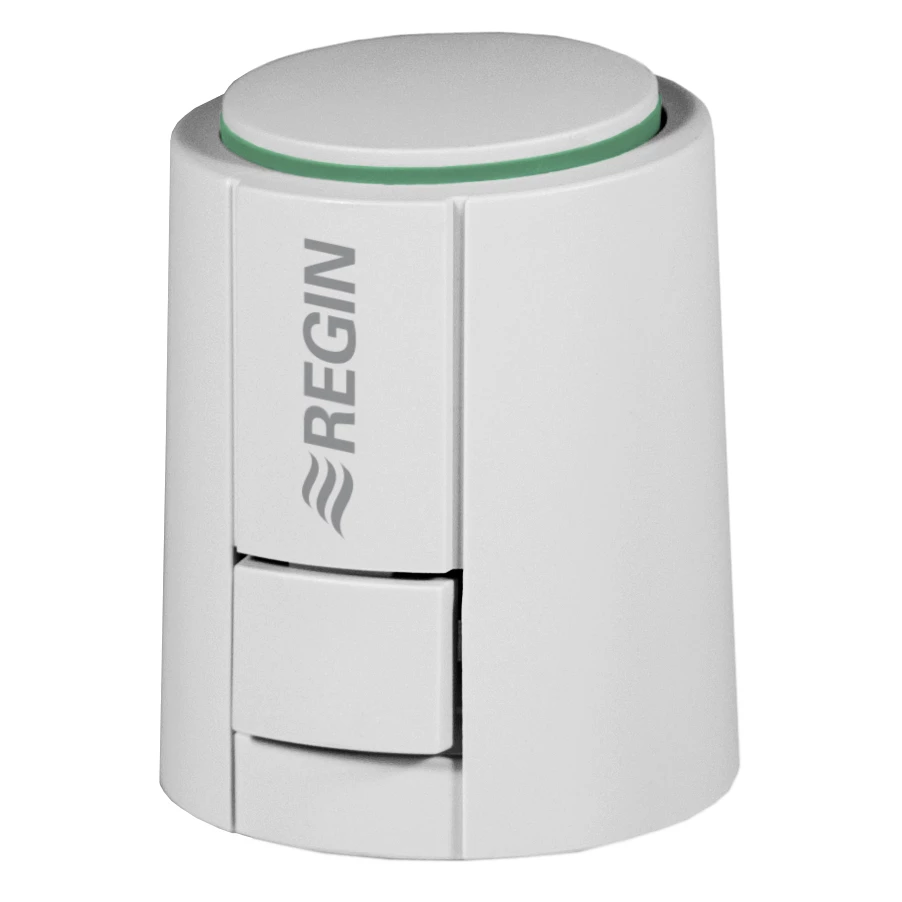

Thermal actuator

96.42% Has a good to very good experience with SENSORS.NL

Personalized customer service

Spacious assortment with a wide range of top brands

Need an additional discount for quantities? Please contact us

SKU: RTAOM100-24 Category: Actuators Tag: Actuators

Specifications

Specifications for RTAOM100-24
Force	100 N
Supply voltage	24 V AC/DC
Power consumption	1 W, inrush current 300 mA during max 2 min
Cable length	1 m
Control signal	On/off, NO
Stroke length	4 mm
Speed	52.5 s/mm

Specifications for Thermal actuators 100 N, 4 mm stroke
Protection class	IP54
Ambient humidity (non-condensing)	10...90 % RH
Storage temperature	-25...65 °C
Connection toward valve	Snap-on, adapter between valve and actuator needed
