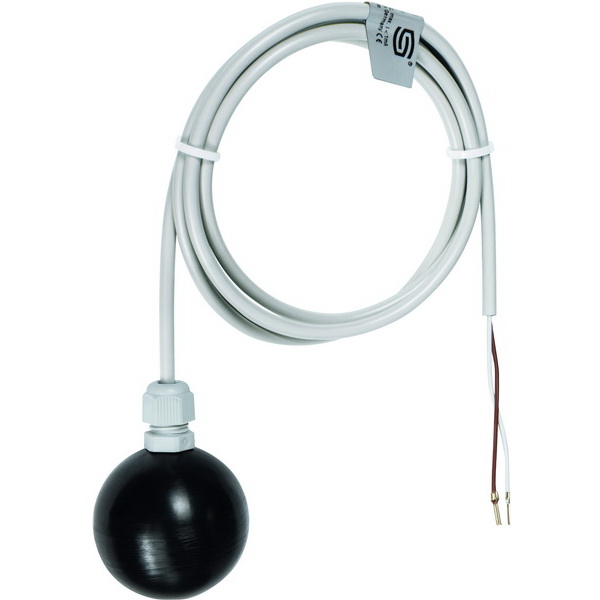

RPTF2 NTC 1, 8 kOhm Room-pendulum temperature sensor

Resistance thermometer THERMASGARD~ RPTF2 with passive output. Housing made of plastic with quick release screws. The sensor was specially developed as a black bulb sensor for measurement in larger rooms and halls. Due to the measuring method used and through correct positioning in the room, a representative temperature display is achieved. The RPTF2 determines the effective radiant section or effective radiant heat at the measurement point. Taking into account the heat radiation and the thermal comfort (wind chill), the global temperature is determined. The feeling temperature is an interplay of thermal radiation and thermal convection (the globetemperature relates to the air temperature approx. 70 % to 30 %).
