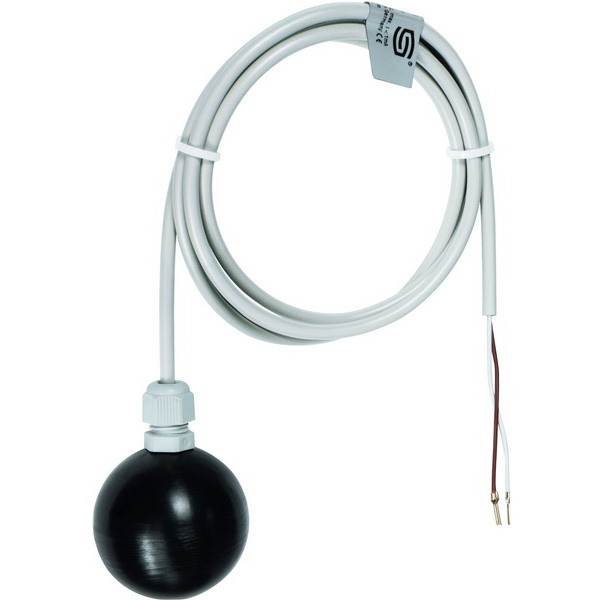

RPTF2 NTC 10k with PVC cable Room-pendulum temperature sensor

Name: RPTF2 NTC 10k met PVC-kabel Ruimte-pendeltemperatuuropnemer
SKU: 041008850
Availability: InStock

€71,38 (€86,37 incl. VAT)

Item No. 1101-6071-5211-010 / 110160715211010
EAN 4 251325 605678 / 4251325605678

Productinformatie en datasheets →

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

Add to quote

SKU: 041008850 Categories: Recorders passive, Pendulum temperature sensors passive, S+S regeltechnik

Beschrijving

Resistance thermometer THERMASGARD~ RPTF2 with passive output. Housing made of plastic with quick release screws. The sensor was specially developed as a black bulb sensor for measurement in larger rooms and halls. Due to the measuring method used and through correct positioning in the room, a representative temperature display is achieved. The RPTF2 determines the effective radiant section or effective radiant heat at the measurement point. Taking into account the heat radiation and the thermal comfort (wind chill), the global temperature is determined. The feeling temperature is an interplay of thermal radiation and thermal convection (the globetemperature relates to the air temperature approx. 70 % to 30 %).
