Name: RDAS18S-24A
SKU: RDAS18S-24A
Availability: PreOrder

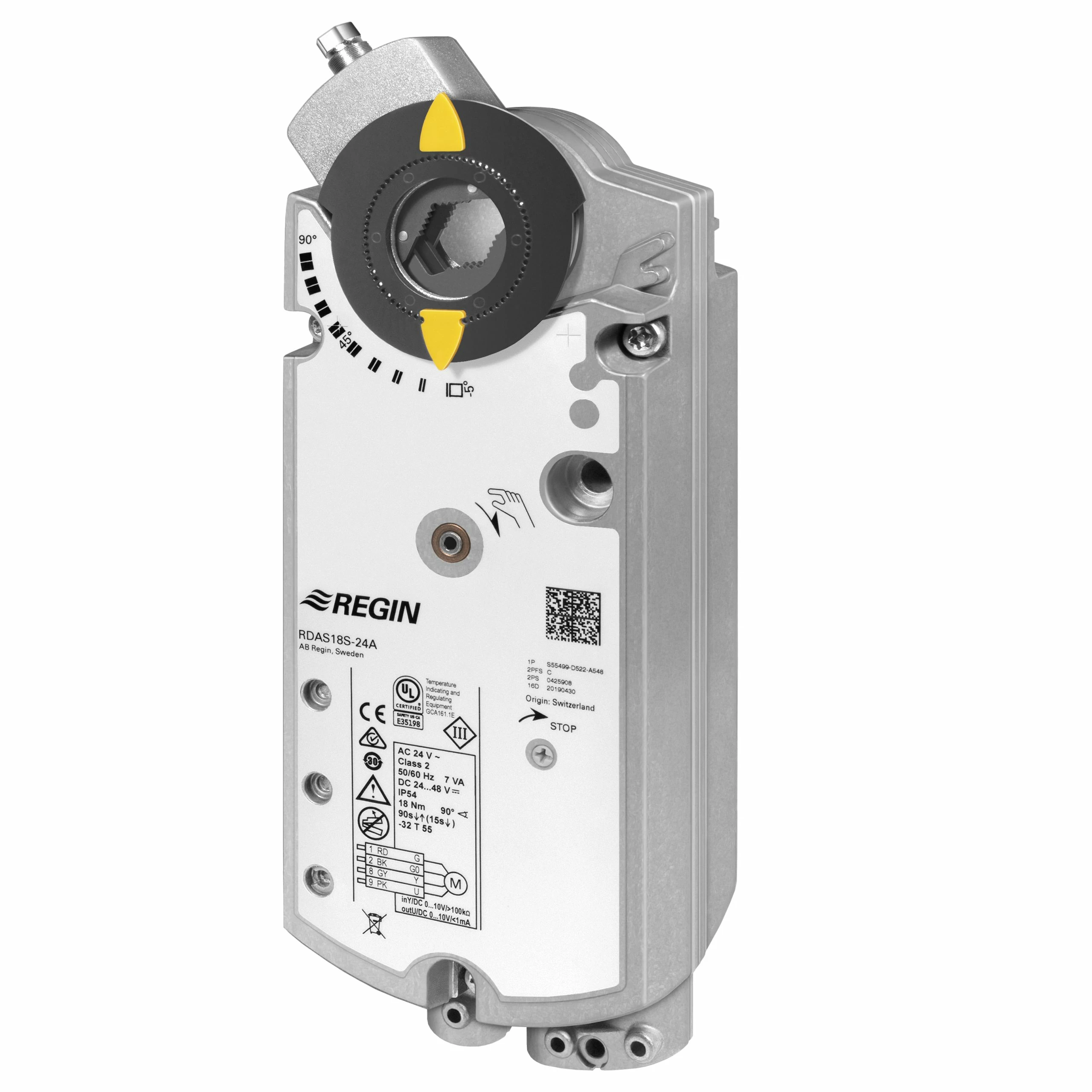

RDAS18S-24A

€451,50 (€546,32 incl. VAT)

On backorder, please contact us for the expected delivery date.

18 Nm, 0-10 V, 24 V, spring return

Product information and datasheets →

Available on backorder

Why buy from Sensors.nl:

Excellent rating: 96.42% had a good to very good experience

Personal customer service and advice

Extra discount possible for large quantities: Contact us

Specifications

Specifications for RDAS18S-24A
Supply voltage	24 V AC/DC
Power consumption	7 VA (5W - Running / 3W - Holding)
Cable length	0.9 m
Torque	18 Nm
Running time, actuator	90 s
Running time, spring	15 s
Auxiliary switch	No
Angle limitation	95 °
Damper shaft, round	8...25.6 mm
Damper shaft, square	6...18 mm
Damper shaft, min shaft length	20 mm
Max damper size (area)	3 m²

Specifications for RDAS 18 Nm
Appliance class	Class III
Protection class	IP54
Ambient humidity (non-condensing)	0...95 % RH
Storage temperature	-32...70 °C
Cable nominal cross section	0.75 mm²
Cable length extension, maximum	300 m
Working angle, rotation	90 °
