RCFD-230C-BLACK

On backorder, please contact us for the expected delivery date.

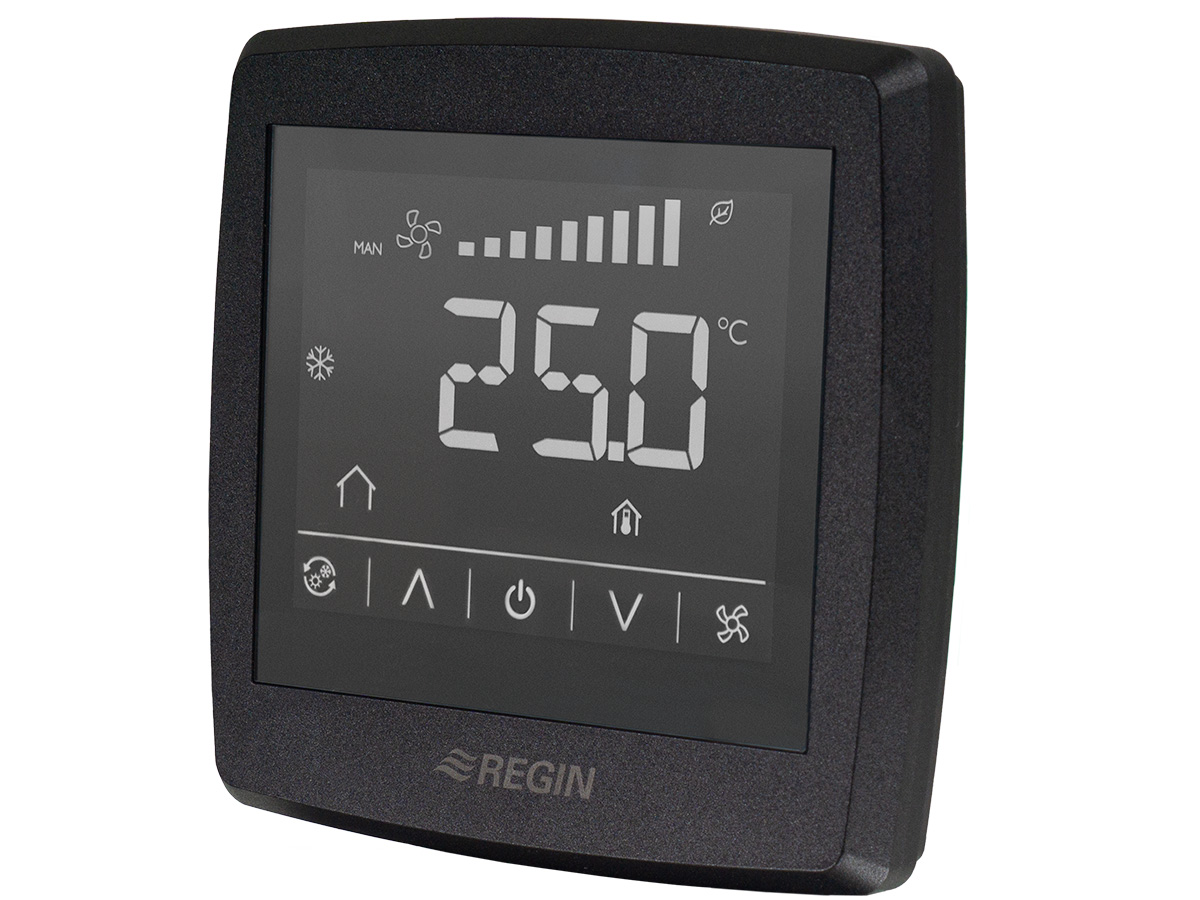

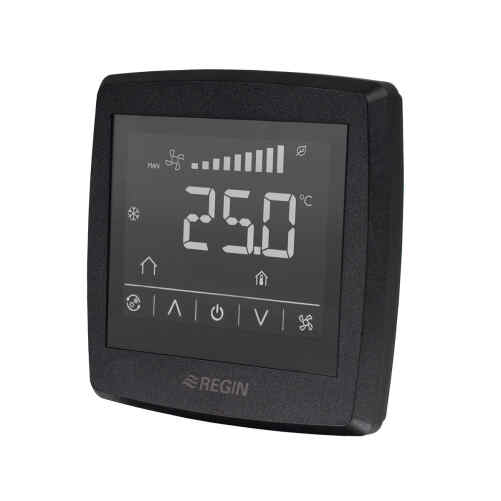

Flush-mounted fan-coil controller with communication via RS485

Product information and datasheets →

Why buy from Sensors.nl:

Excellent rating: 96.42% had a good to very good experience

Personal customer service and advice

Extra discount possible for large quantities: Contact us

Specifications

Specifications for RCFD-230C - Room thermostat with touch display and communication for fan-coil applications
Protection class	IP30
Ambient humidity (non-condensing)	10...90 % RH
Storage temperature	-20...70 °C
Mounting	Room
Weight, incl. packaging	0.24 kg
Analog inputs type (AI)	PT1000
Digital outputs type (DO)	230VAC/5A
Accuracy, temperature 1	±0.5 °K @ 0...50 °C
Terminal type	Screw Terminal
Terminal wire size	1.5 mm²
Material, Fire resistance	UL 94 V-0
Material, housing	Polycarbonate, PC
