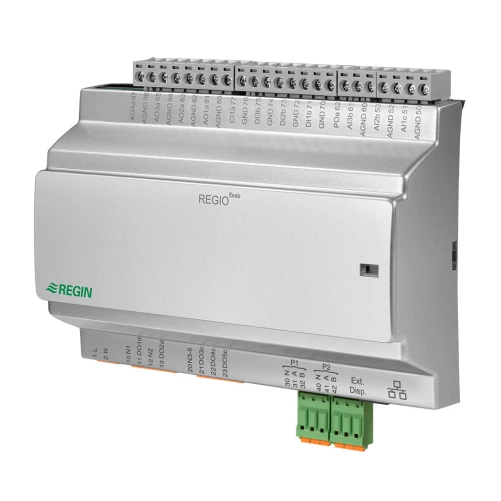

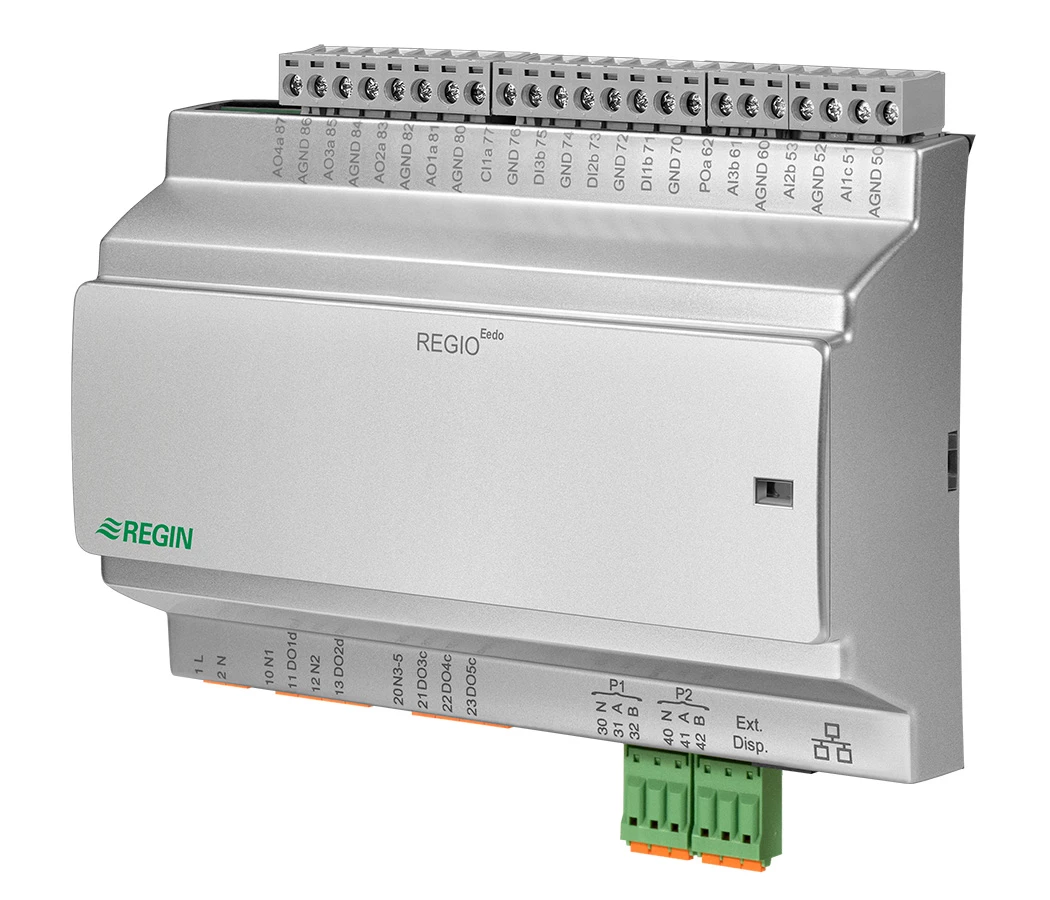

RC-E163W-1
Region Eedo is a configurable 230 V zone controller for e.g. fan coils.It is prepared for quick connection of the ED-RU room units. The controller is compatible with other Regin products and can easily be integrated into larger systems.The controller can be used in systems with communication, e.g. EXOline, Modbus or BACnet (over RS485 or TCP/IP). It is installed in a ceiling void, on a junction box plate or on a DIN rail.
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
Specifications
| Controller Type | Room Control |
|---|---|
| Power Supply | 230 V AC |
| Mounting | DIN rail |
| Display | No |
| Supported protocols | EXOline, Modbus, BACnet |
| Port type | Ethernet, RS-485 |
| Power Supply | 230VAC (207...253 V AC 50/60Hz / ), 11.0 VA |
| Dimensions, external (WxHxD) | 149x121x58 mm |
| AI | 3 |
| DI | 3 |
| CI | 1 |
| AO | 4 |
| DO | 5 |
| Battery type | CR2032 |
|---|---|
| Battery life time | 5 years |
| Protection class | IP30 |
| Ambient humidity (non-condensing) | 0...95 % RH |
| Mounting | DIN-rail, Wall, Ceiling |
| Analog inputs type (AI) | PT1000 or 0...10 V DC |
| Digital inputs type (DI). | Potential-free contact |
| Digital outputs type (DO) | Triac outputs: 230 V AC, 300 mA / Relay outputs: 230 V AC, 3 A |
| Condensation inputs type (CI) | Input for Regin's condensation detector KG-A/1 |
| Analog outputs type (AO) | 0...10 V DC |
