RC-A203W-4-TP

Name: RC-A203W-4-TP
SKU: RC-A203W-4-TP
Availability: InStock

€435,00 (€526,35 incl. VAT)

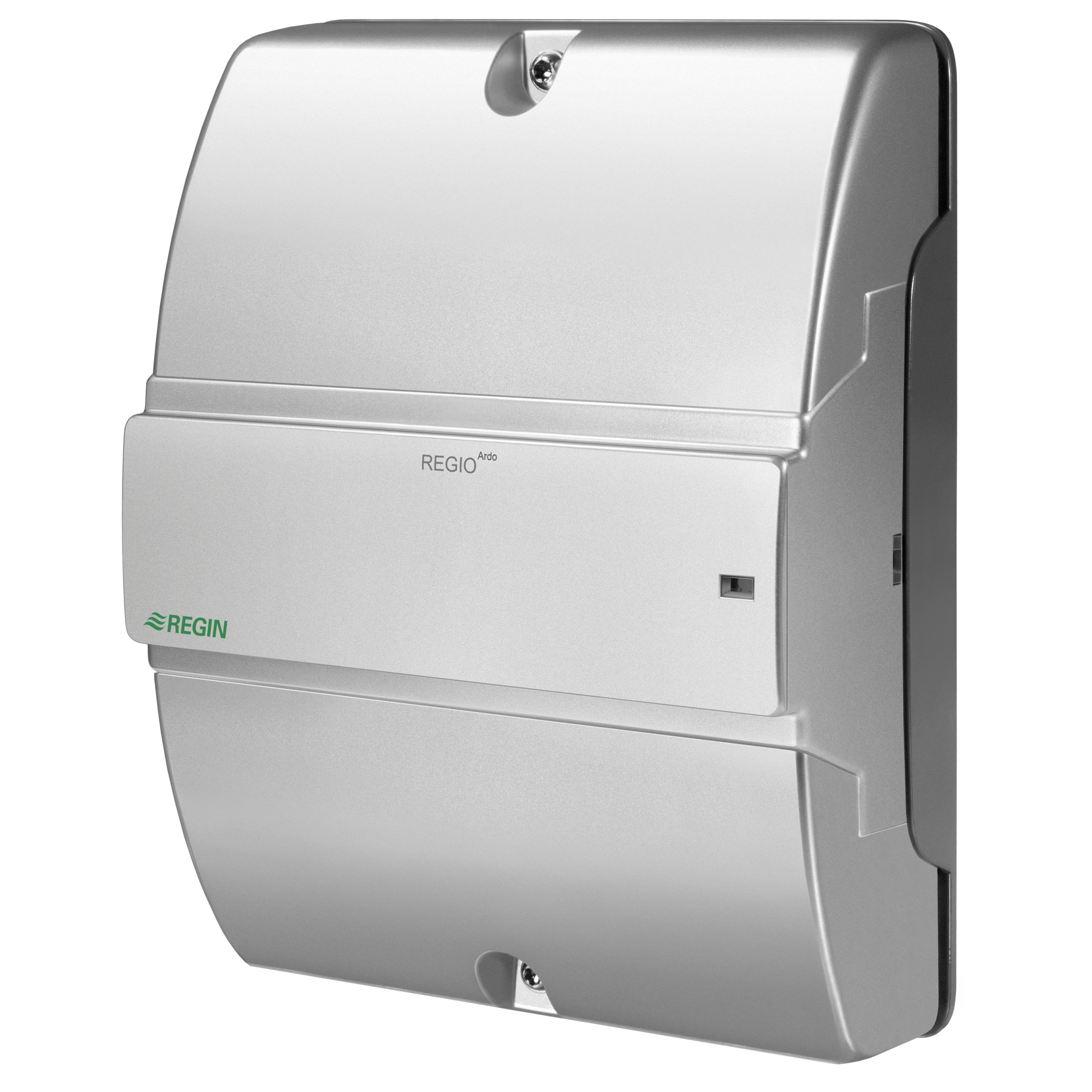

Region Ardo is a configurable 24 V zone controller. One controller is able to control two different zones.It is quick and easy to commission. The I/O configuration and application setup for a VAV controlled room are predefined and the room units ED-RU are easily connected.The controller is compatible with other Regin products and can easily be integrated into larger systems.The controller can be used in systems with communication, e.g. EXOline, Modbus or BACnet (over RS485 or TCP/IP). It is installed in a ceiling void, on a junction box plate or on a DIN rail.

Productinformatie en datasheets →

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

Add to quote

SKU: RC-A203W-4-TP Category: Room Controllers Tag: Room Controllers

Beschrijving

Specifications

Specifications for RC-A203W-4-TP
Controller Type	Room Control
Power Supply	24V AC, 24V DC
Mounting	DIN rail, Wall mount
Display	No
Supported protocols	EXOline, Modbus, BACnet
Port type	Ethernet, RS-485, Display
Power Supply	24VAC (20...28 V AC 50/60Hz / ), 4.0 VA
Number of modules	8.5
RS485 ports	2
Ethernet ports	1
Display ports	1
AI	4
DI	4
CI	2
AO	4
DO	6
