PT100 3-wire with DIN-B housing incl. stainless steel separate immersion tube TL516

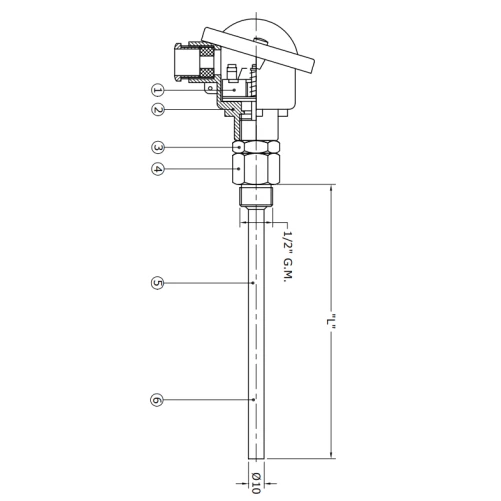

PT100 3-draads met DIN-B behuizing incl. RVS seperate dompelbuis TL516 - Image 2

PT100 3-wire with DIN-B housing incl. stainless steel separate immersion tube TL516

Original price was: €133,75.Current price is: €88,76.

Productinformatie en datasheets →

Range (°C)

Entrance

Tube length (mm)

Housing

Process Connection

Clear

Checking current stock status? Then contact us or use the live chat.

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

SKU: N/B Categories: Plug-in passive, Termotech

Beschrijving

Measuring range [°C] : -50...+400.0
Pt100 sensor: 3-wire, class B
Protective tube length: 65, 110, 150 or 200 mm,
other lengths on request
immersion tube material: 1.4435/316L
Thread: G1/2″ BSP
Housing : Alu epoxy coated IP65
Loose immersion tube stainless steel

Overview Termotech RTD thermometers

Rate this product

Extra informatie

Weight	1 kg
Range (°C)	-50 … +400
Entrance	PT100 3-wire
Tube length (mm)	110, 150, 200, 400, 65
Housing	DIN B head
Process Connection	G1/2"

Downloads

Product Documents

Datasheet TL516
