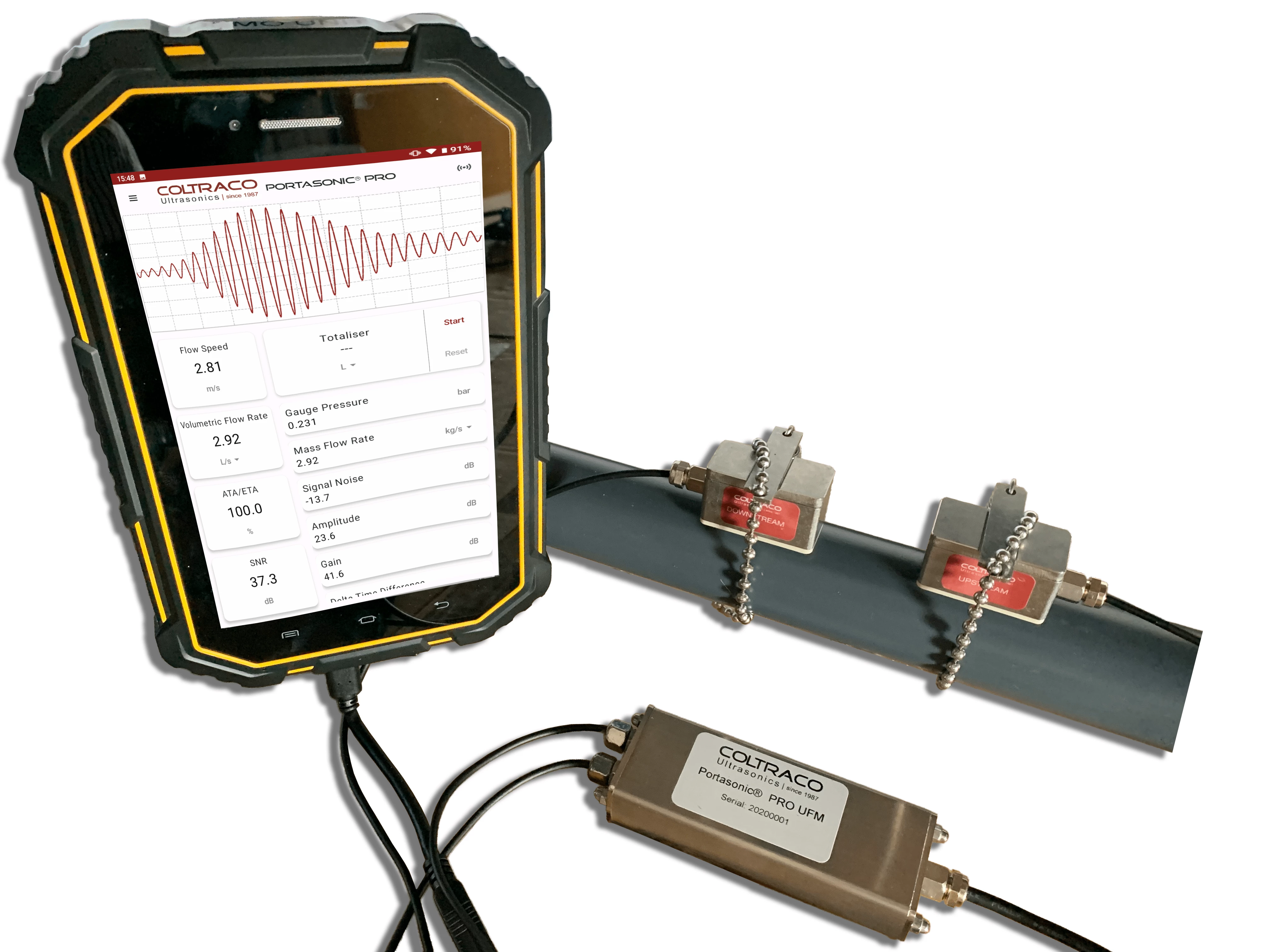

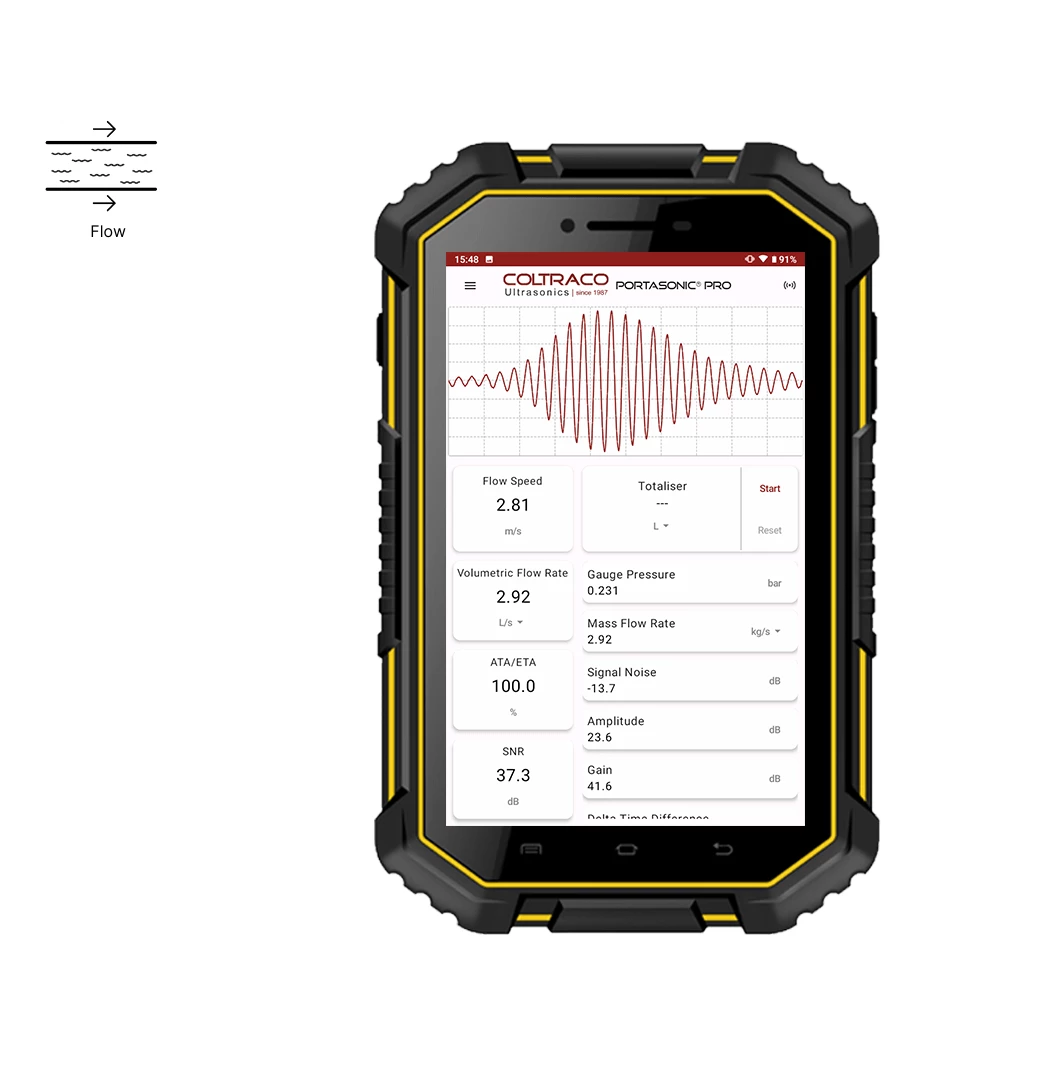

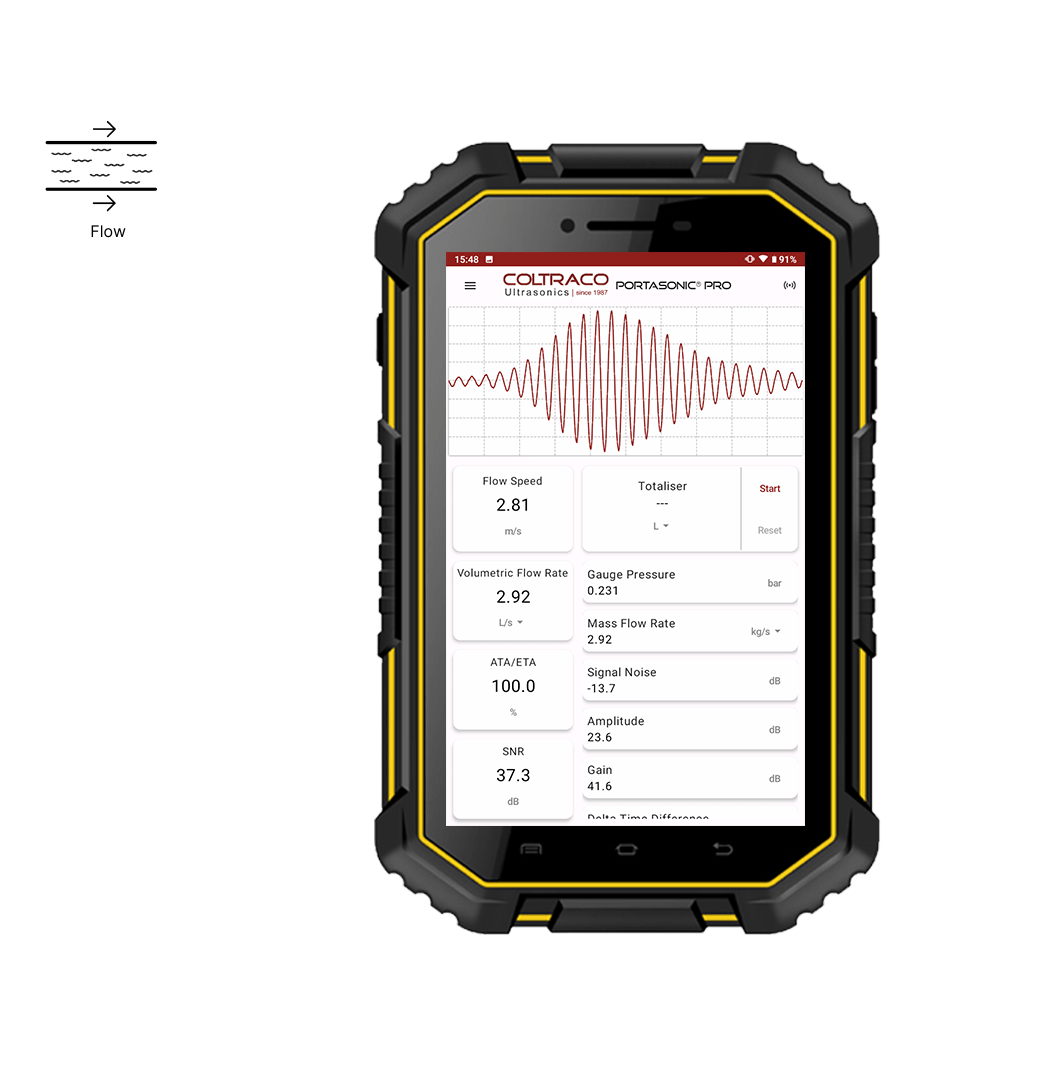

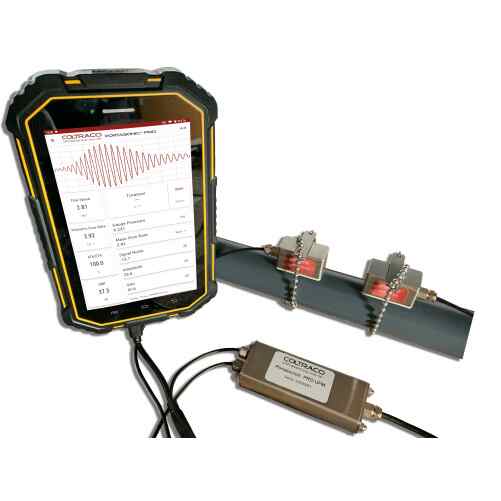

Portasonic® PRO | Handheld tablet-based ultrasonic clamp-on flowmeter with pressure prediction software

Combined ultrasonic clamp-on flow meter with internal pressure calculator

The Portasonic® PRO integrates the Portasonic® flow rate measurement with the Portasonic® CALCULATOR, a groundbreaking tool for determining internal pipe pressure using external flow technology.

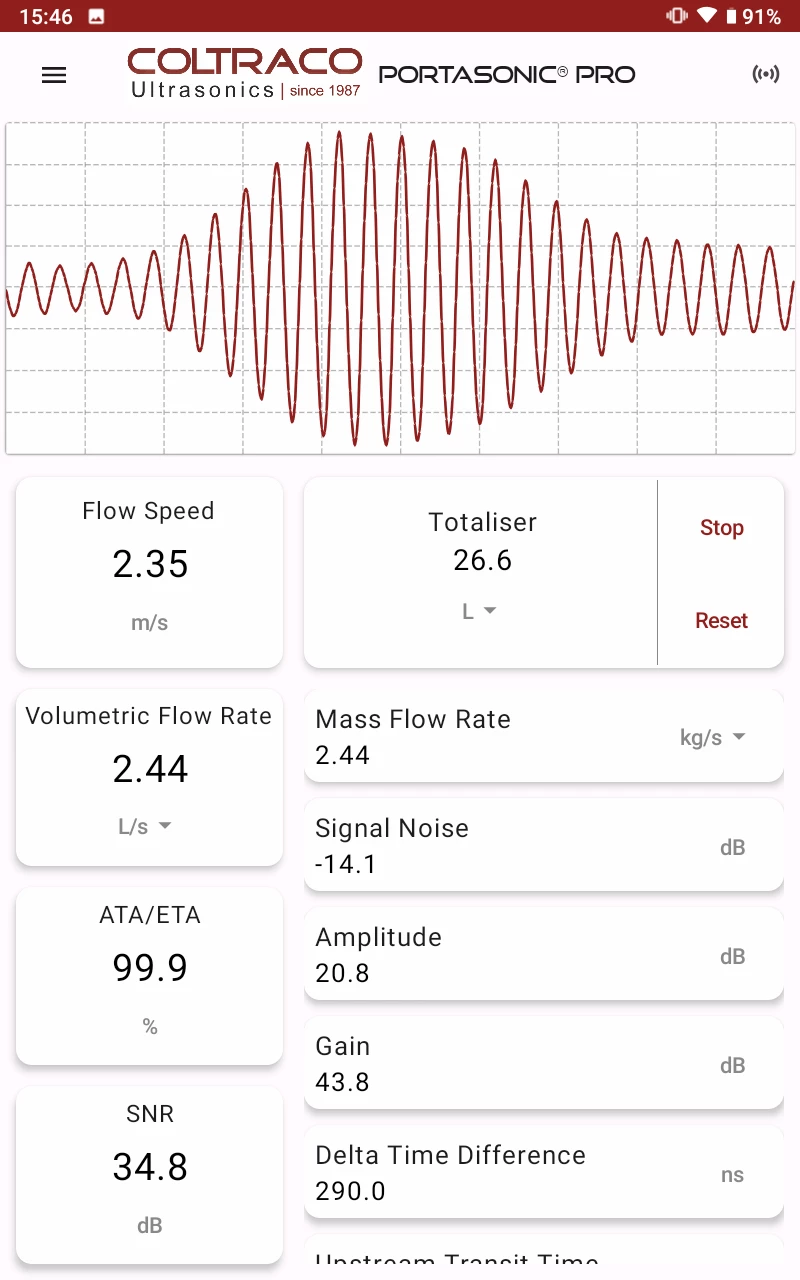

• Accurate Flow Measurement: Users can measure liquid flow rates non-invasively with industry-leading precision of 0.5%.
• ISO 17025 Verified: Flow measurement accuracies are independently verified at an ISO 17025 laboratory, ensuring reliability and trustworthiness.

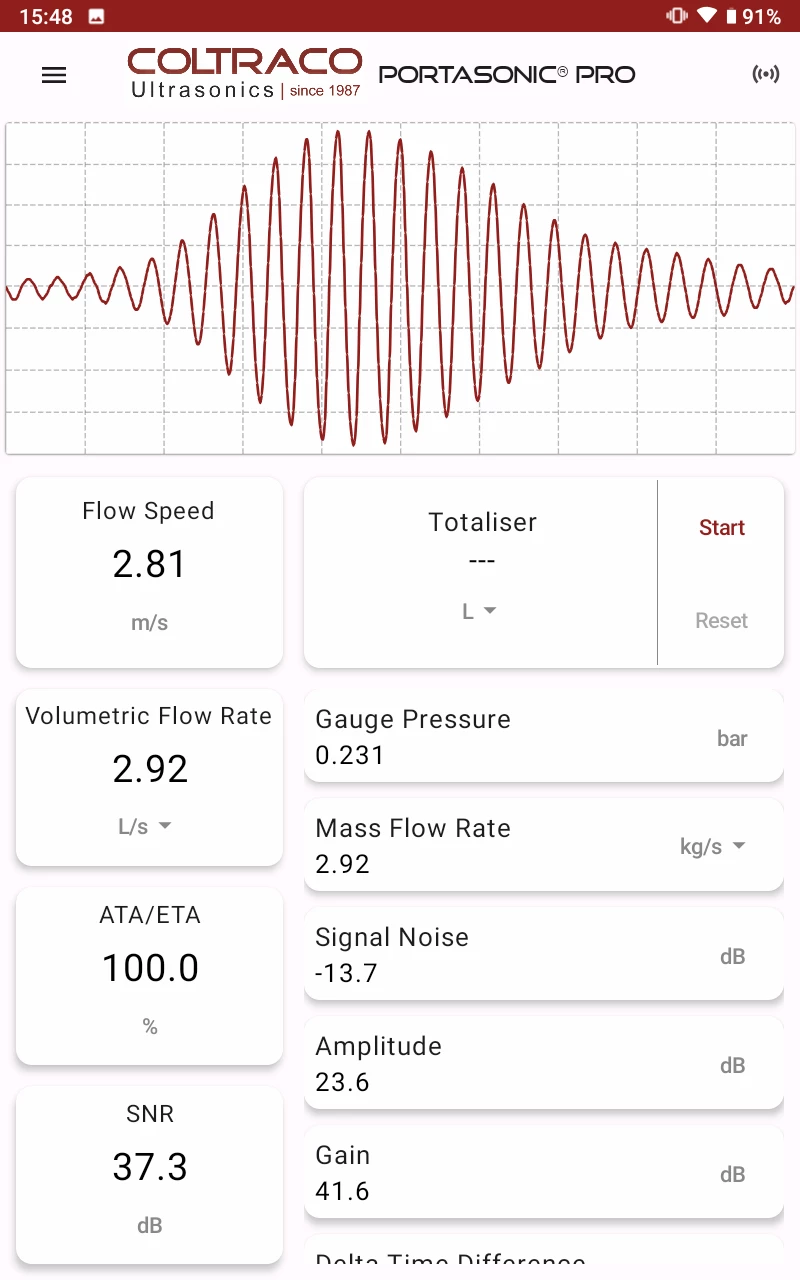

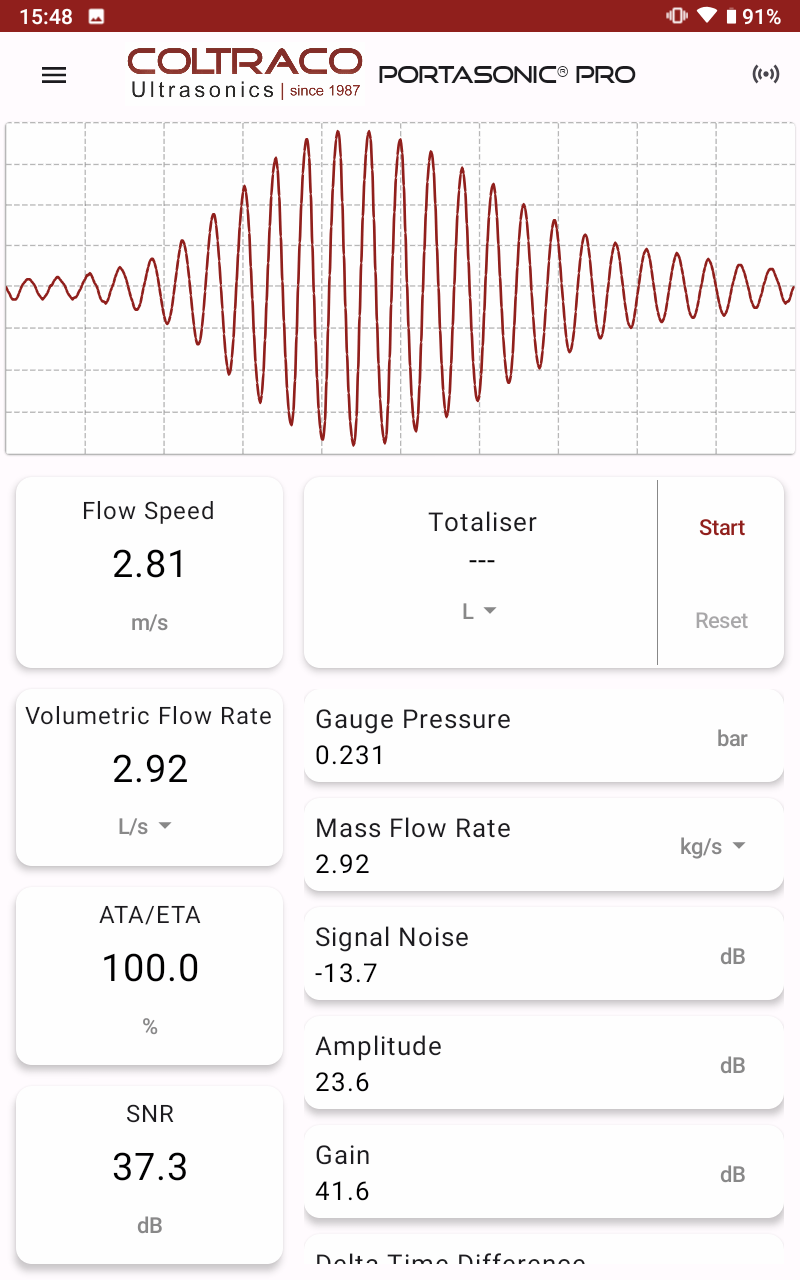

• Pressure Calculation: Activating pressure calculation displays both flow rate and calculated internal pipe pressures.
• Advanced Algorithms: The device utilizes empirical equations derived from fluid dynamics laws to calculate pressure with 5% accuracy.
• Fluid and Material Knowledge: Extensive knowledge of 19+ different fluids and 23 common pipe materials ensures accurate pressure calculations across various scenarios.

Advantages of Non-Invasive Ultrasonic Flow Measurement and Pressure Monitoring.

Choose non-invasive ultrasonic transit time technology over inline flow meters for its versatility and cost-effectiveness.

• The clamp-on, portable nature eliminates installation costs and downtime, as it doesn't require drilling into pipes.
• With no contact with the fluid, there's no risk of pressure loss or damage to the flowmeter, ensuring a longer lifespan and lower maintenance costs compared to inline meters.
• Monitoring internal pipe gauge pressure is crucial to prevent pipe failure, property damage, and risks to personnel.

Main Features of the Portasonic® PRO

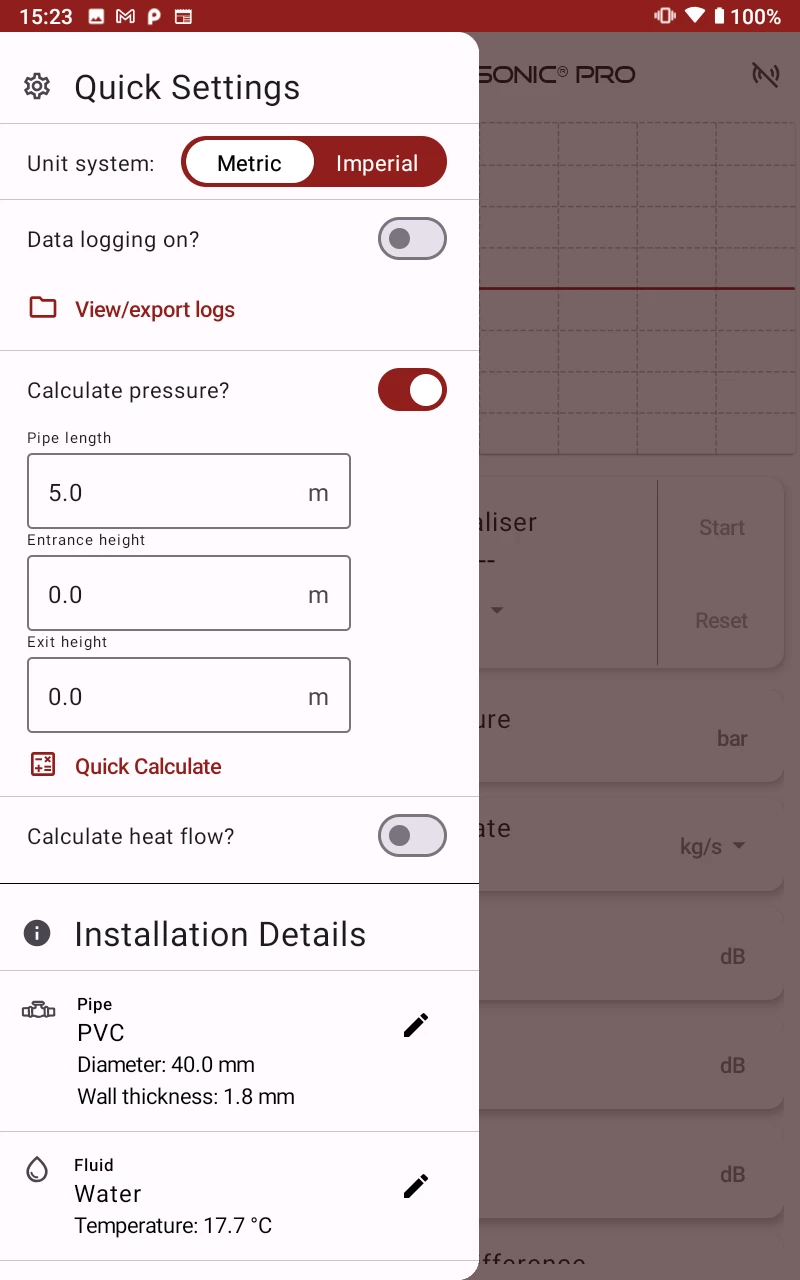

• Full Portasonic® CALCULATOR integration: Streamlined workflow, perform pipe pressure calculations without the need for additional applications, with real-time calculations
• Datalogging capabilities: Capture and store millions of flow and pressure data points
• Heat Flow Rate Calculation: Simple to achieve with user-inputted inlet/outlet temperatures
• Totaliser Capability: Keep track of cumulative flow measurements effortlessly
• Extensive Database: Database of 15+ pipe materials and fluid types
• Wide range of pipe diameter: Works up to a maximum pipe diameter of 750mm
• Improved, fully customized user interface and user experience layers
