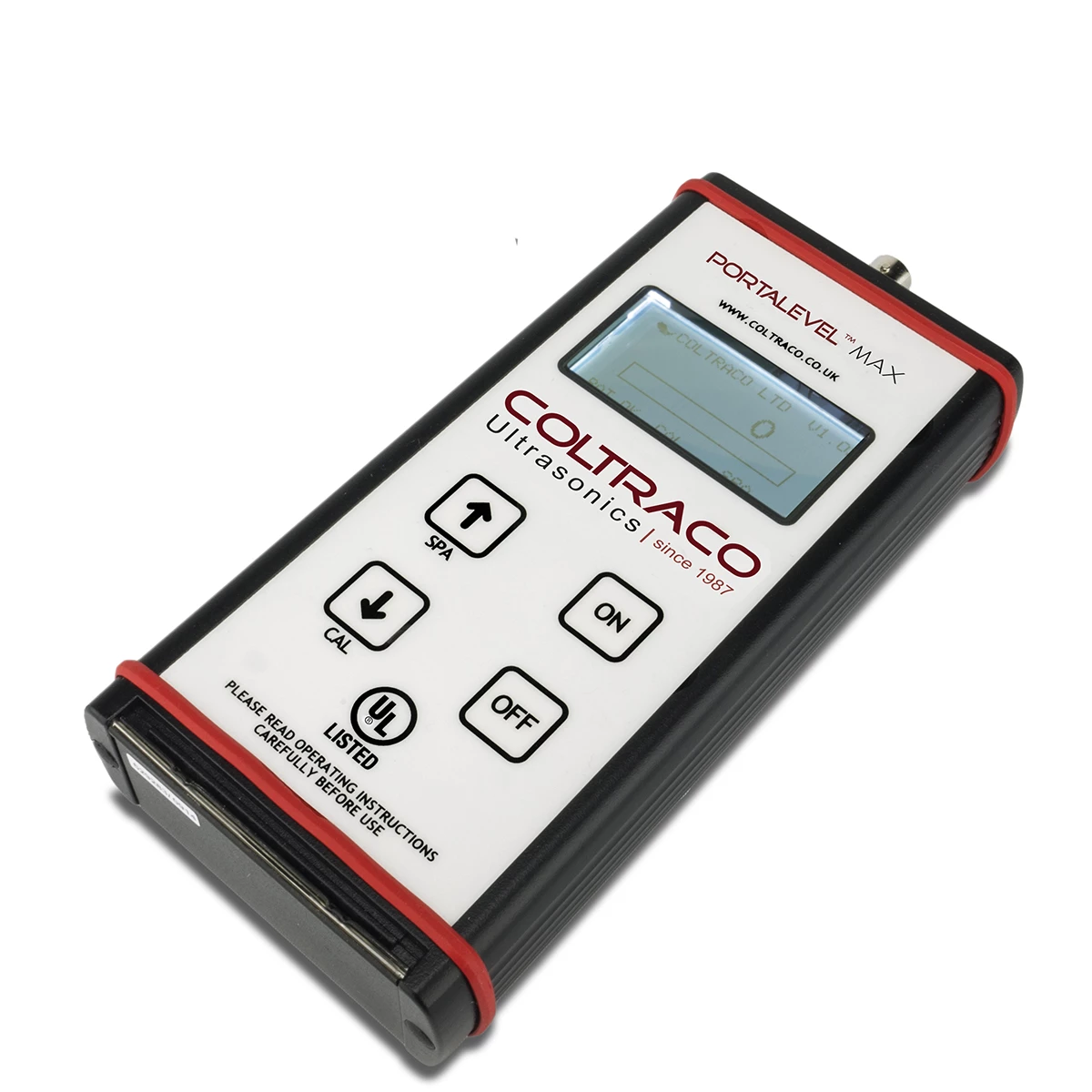

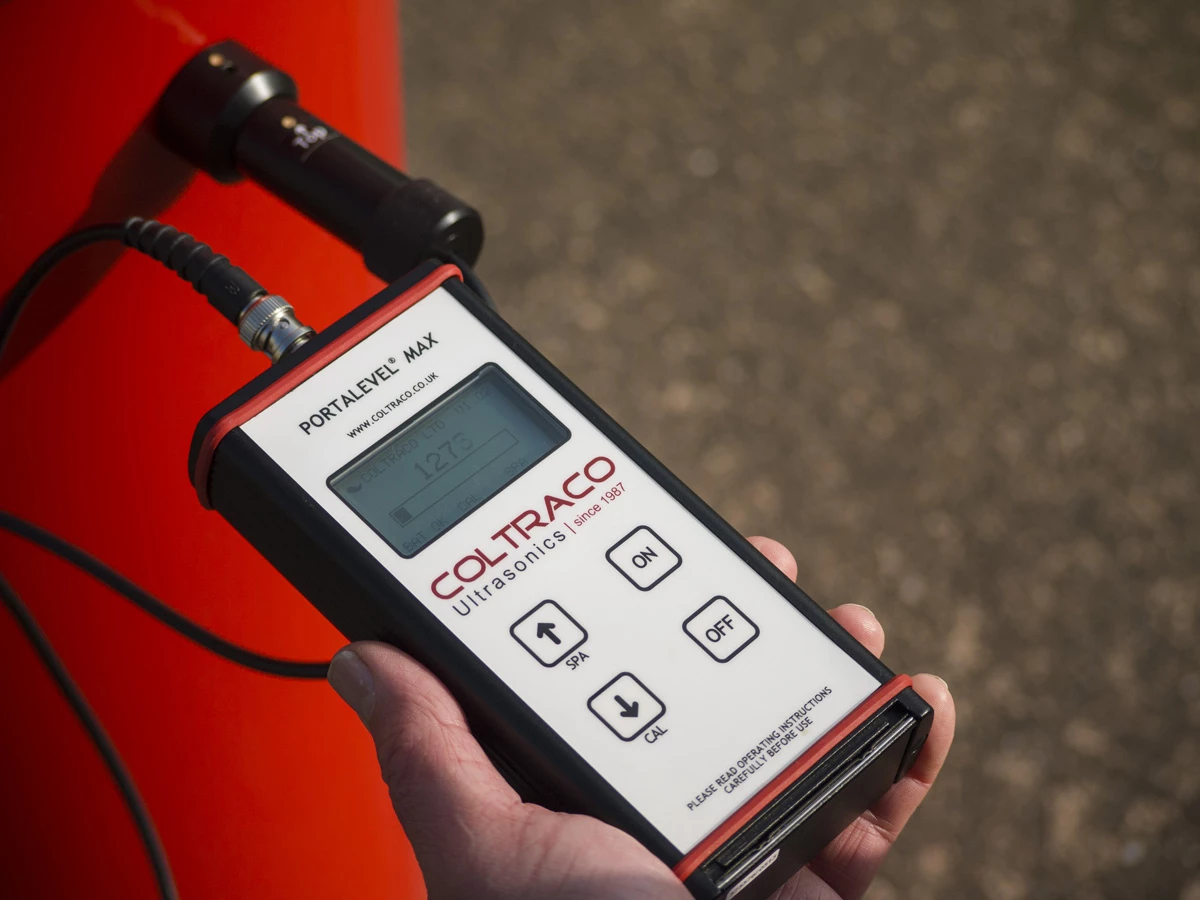

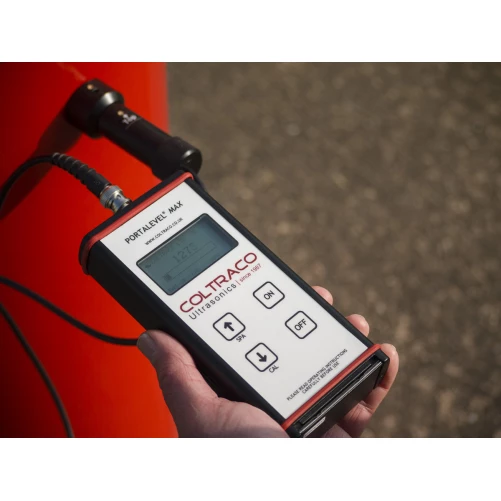

Portable ultrasonic level indicator Portalevel® MAX (2290334-COMX)

Portalevel® MAX is the fastest and most powerful level indicator produced by Coltraco Ultrasonics. With UL listing and full ABS type approval, the gauge is ideal for testing large cylinders aboard ships and offshore installations.

Gas level control and level indicator

The Portalevel® MAX is an ultrasonic liquid level indicator device designed specifically for determining the liquid level in large cylinders and high mass containers where UL approval is also required.

Quick and easy testing: the testing procedure is short and simple, making cylinder inspection incredibly fast. Each cylinder can be inspected in less than 30 seconds, with the 'cal' function automatically setting the unit for each cylinder at the touch of a button. This significantly reduces user error, makes the testing process very simple and requires minimal user training.

Powerful testing: the Portalevel® MAX also has 4 different power modes (SPA). The SPA function increases the sensitivity of the unit and increases the strength of the output signal. The SPA function is not only an ideal unit for level measurement of co2 bottles, but also allows it to continue working on very large tanks up to about 800 kg of agent or containers that show a lot of corrosion and pitting. Wide range of verifiable agents: including but not limited to common liquid gaseous fire extinguishers, e.g. Level measurement CO2 bottle, aluminum CO2, FM200 / HFC-227EA, NOVEC 1230 / FK-5-1-12, FE 25 / FE 13, FE 36, Halon 1301/1211, CEA410, NAF S III, refrigerants / R507 Save money, risk and time with the Portalevel® MAX.

Dimensions	Height: 160 mm (6.29 inches) Width: 82 mm (3.22 inches) Depth: 30 mm (1.18 inches) Weight: 300 grams (10.58 ounces)
Accuracy	+/-1.5mm (1/8 inch)
Verifiable Agents	CO2, FM-200®, NOVEC™ 1230, old Halons such as 1301 and 1211, FE-13™, FE-25™, FE-36™, HFC-225 & 227ea, NAF S 125. Please speak to our Sales team for the full range.
Sensor	TX/RX Dry Sensor 14 mm diameter head Contained within a magnetized sensor applicator; Connected to 1 m length cable with BNC connectors.
Power Supply	1 x PP3 9V battery (battery life 10 hours)
Display	Membrane control operated, LCD back-lit Display measuring 55 x 28 mm
Operating Temperature	-20°C to +70°C (68°F to 158°F)
Certificates	UL Listed ABS Type Approved Classification Society Accepted - RINA CE ISO 9001 & ISO 14001 Registered Company
Classifications	Enclosure IP Rating 65 NATO Stock Number: 6680-99-275-5292
Warranty	Main Unit: 3 Years Warranty Sensor: 1 Year Warranty Lifetime Customer Support
Package Contents	1 Portalevel® MAX unit 1 Dry Sensor 1 Portatherm Ultrasonic Gel 1 Hard Wearing Carrying Case Calibration Certificate

Weight	3 kg
Brand	Coltraco Ultrasonics
