Name: PDT25C-2
SKU: PDT25C-2
Availability: PreOrder

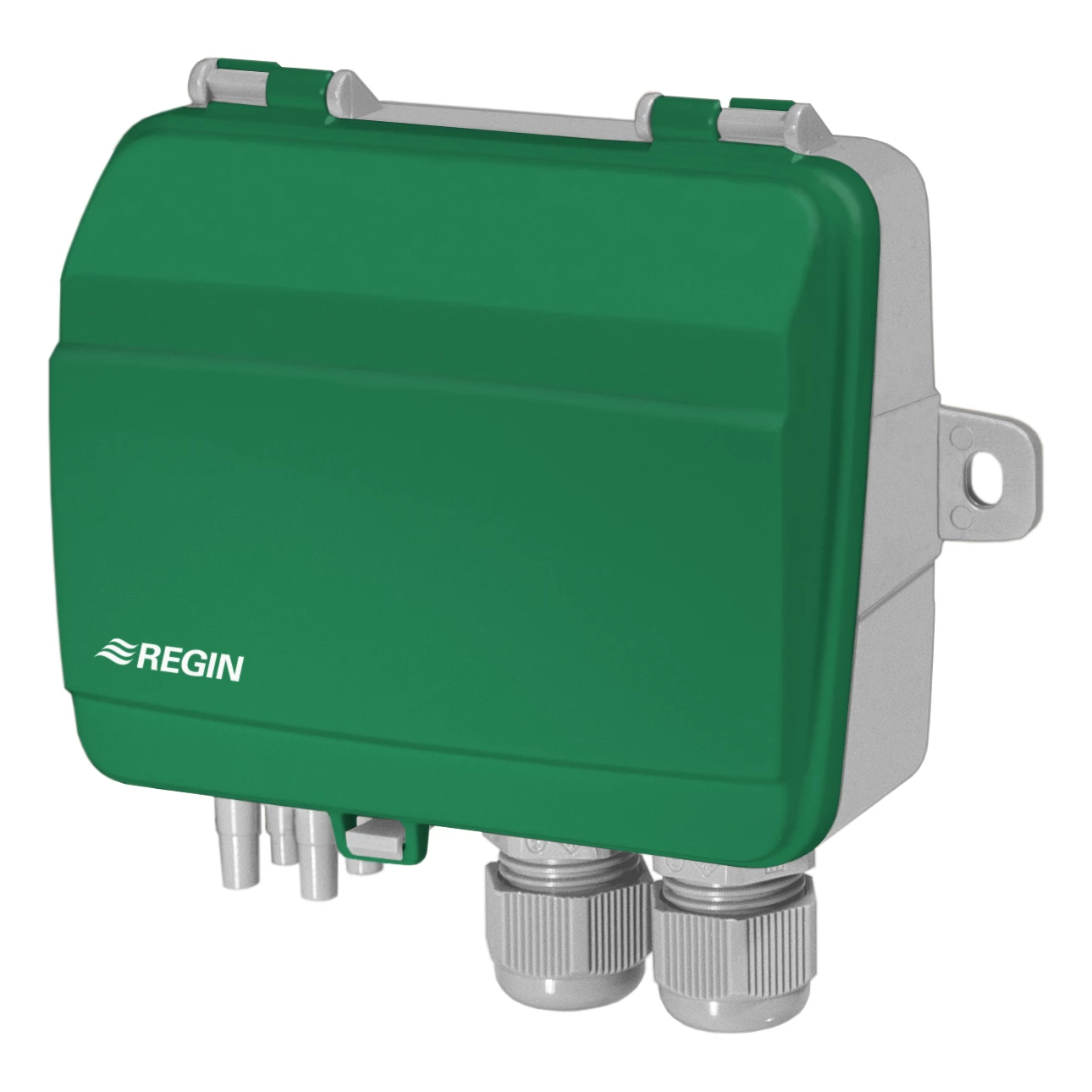

PDT25C-2

€236,25 (€285,86 incl. VAT)

On backorder, please contact us for the expected delivery date.

Differential pressure transmitters with two universal inputs and communication via EXOline or Modbus.

Product information and datasheets →

Available on backorder

Why buy from Sensors.nl:

Excellent rating: 96.42% had a good to very good experience

Personal customer service and advice

Extra discount possible for large quantities: Contact us

Specifications

Specifications for PDT25C-2
Power Supply	24VAC/DC (21...27 V AC 50Hz / 21...27 V DC), 2.0 VA
Dimensions, external (WxHxD)	120x40x112 mm
Supported protocols	Modbus
Max Overvoltage on any terminal	Max. ±18 V (referenced to GND) V
Analogue output load impedance 0...10v	Min. 10 kΩ
Pressure, range sensor	0...2500 Pa
Pressure, range sensor 2	0...2500 Pa
Accuracy, pressure sensor 1	≤ 1 % full scale %
Accuracy, pressure sensor 2	≤ 1 % full scale %
Max. allowed diff. Pressure sensor 1	50 kPa
Max. allowed diff. Pressure sensor 2	50 kPa
Damping (electronic)	settable 1...12 s
Unit. Range l/s	0...31000
Unit. Range m3/h	0...65000 (factory setting)
Unit. Range CFM [Ft3/min]	0...65000

Specifications for Presigo (PDT...-C) - Differential pressure transmitters with communication
Protection class	IP54
Ambient humidity (non-condensing)	0...95 % RH
Mounting	Wall
Media	Air, non-combustible and non-aggressive gases
Universal input type (UI).	PT1000*, Ni1000 (6180 ppm/K), 0...10 V, Digital input
Pressure, range sensor	0...1250 Pa
Cable gland	M16x1.5
Terminal type	Screw Terminal
Terminal wire size	1.5 mm²
Material, housing	Polycarbonate (PC)
Material, cover	Polycarbonate (PC)
Material, base	Polycarbonate (PC)
Material cable	Polycarbonate (PC)
