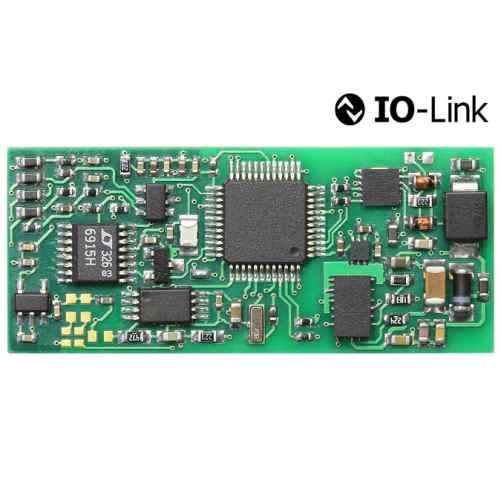

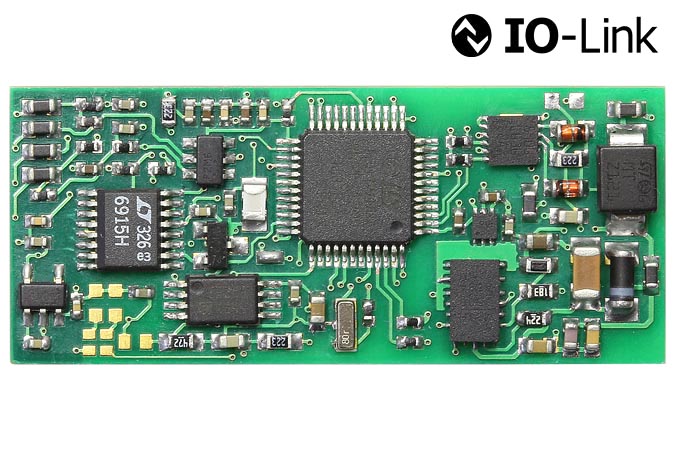

OEM transmitter 1-channel IO-Link | Type: MCUT-E

OEM transmitter 1-channel IO-Link | Type: MCUT-E

Link IODDfinder

On request!

96.42% Has a good to very good experience with SENSORS.NL
Personalized customer service
Spacious assortment with a wide range of top brands
Need an additional discount for quantities? Please contact us

Categories: IO-link, Müller IE, Sensors, Signal conditioning

Description
Downloads

Input: DMS full bridge
Filter setting: 0.5 s
Output: IO-Link interface
Resolution: 16 bit
Accuracy: max. 0.05% of nominal range
Operating temperature: -20 ... + 85 ° C
Connection: solder pads
Protection rating: IP00
Material: FR4, PBT
Dimensions: 40x17x8.25 mm
Power supply: 24 VDC

Rate this product

Product Documents

Datasheet
