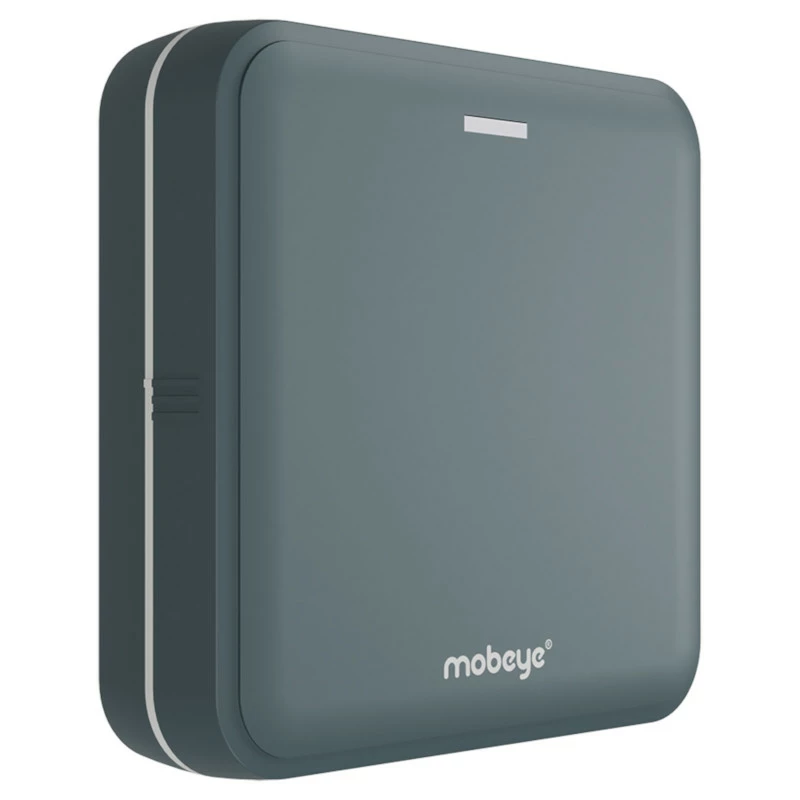

Mobeye CM-Guard TwinLog CML4055

The Mobeye CM-Guard TwinLog CML4055 is a compact measuring instrument for monitoring analog values.
With two inputs for measuring values between 0V and 48V, it is ideally suited as a battery monitor. The built-in communication module can connect to both 4G LTE-M and 2G networks.

CML4055 - Technical data.

Content

• CML4055
• 2x CR123 batteries
• sim card

(Alarm) messages

• voltage alarm, input alarm (NO/NC), power failure, alarm recovery, low battery voltage, test report (missed)
• to private contacts via app, call, text and/or email; local piezo siren

Report

• voltage values, status, settings list, event history, network strength and position based on Cell ID

Setting options

• analog limits per sensor, log interval (in min.), data synchronization interval (in hours), contacts (unlimited number) for alarm and service notifications, notification texts, repeat cycles, input type, recovery notifications, alarm delay times, test interval (keep-alive), etc.

Operation

• switching on and off via button, time schedules and SMS

Entries

• 2x input, analog or NO/NC (potential-free)
  voltage values 0-48V with peak voltage adjustable up to 64V
• 1x 12-24V DC (+/- 2V)

Output

• open collector (at external voltage), max. 200mA. Switches on alarm or after incoming SMS/call

Power supply

• 2x CR123 lithium batteries, or
• 12-24V DC (regulated) + 2x CR123 lithium

Battery life

• > 1 year with normal use (battery operated)
• > 3 years under normal use (externally powered)

Dimensions

• 94 x 94 x 28 mm

Connectivity

• 4G LTE-M (worldwide) + 2G EGSM Quad band
  the Mobeye SIM card and Internet Portal ensure full functionality and optimal security. The 4G LTE-M network is highly reliable and provides strong penetration at low power consumption. 2G is available as a fallback
• 2G EGSM Quad band (850/900/1800/1900 MHz)
  When using your own SIM card, the device works (only) on 2G. The operation is "stand-alone", without use of the Mobeye Portal and without log function. Alarms are sent via SMS and phone call to (max.) 5 contacts.
  Programming is via (simple) SMS commands

Accessories (not included)

• power adapter
• external antenna

Mobeye SIM, Portal & App service.

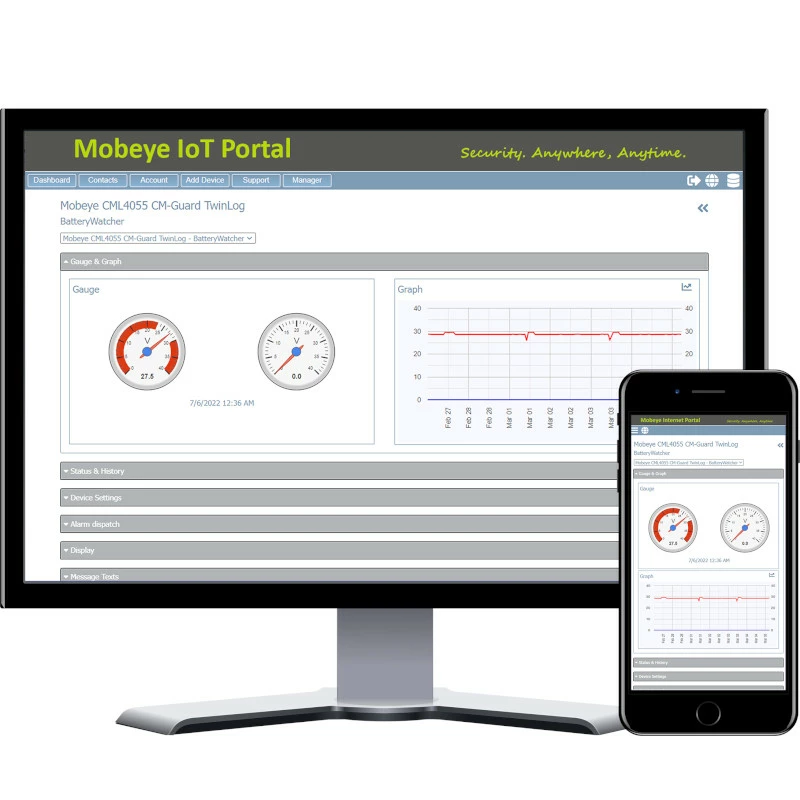

The Mobeye Internet Portal offers a clear dashboard and essential functions such as graphs and log values, history, status and position (Cell-Id), online programming, message setting and push notifications by app. The "keep-alive" monitor provides additional security by monitoring the receipt of test messages. You can activate the included Mobeye SIM card online.
