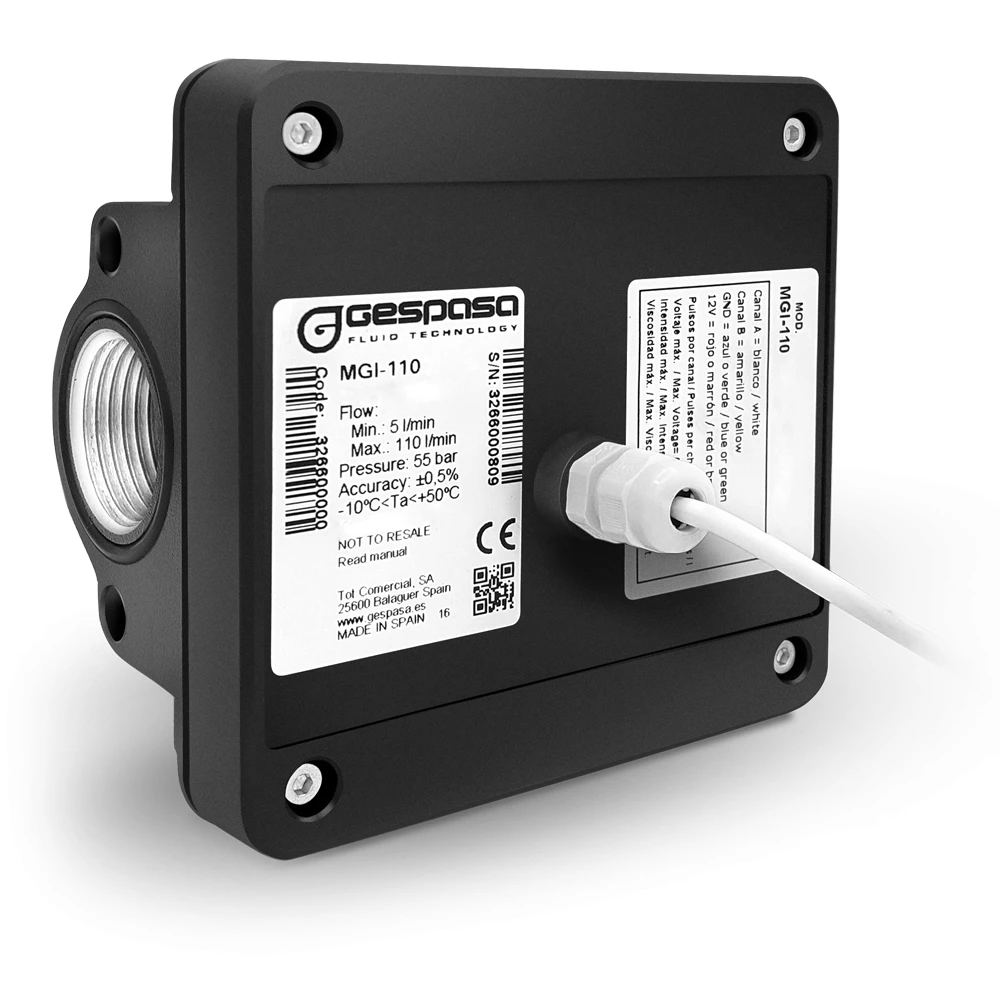

MGI-110 - PULSER

Name: MGI-110 - PULSER
SKU: 32650
Availability: InStock

€171,00 (€206,91 incl. VAT)

Waarom kopen bij Sensors.nl:

SKU: 32650 Categories: Gespasa, Meters Tag: Meters

±0.5% - F1″ BSP

MGI-110 - Pulser - 180º Reed (standard model)

- Max. voltage: 28 VDC

- Max. power: 8 W

- Max. intensity: 100 mA

Pulser for its in-line assembly, making easier the exact information of the fluid management and control systems.
For private use
It gives pulses to an external electronics.
Suitable for diesel and lubricant measurement

Technical data:

Flow (approx.):
- 5-110 l/min (diesel)
- 5-80 l/min (lubricant)
Viscosity: 2-2000 cSt
Accuracy: ±0.5 %
Max. pressure loss: 0.3 bar (diesel)
Max. pressure: 55 bar
Min./max. temperature with Reeds: -10 ºC / +90 ºC
Min./max. temperature with Hall Effect: -10 ºC / +50 ºC
Maximum Humidity: 95 H.R.
Noise level: LeqA < 70 dBA
Two channels: 41 pulses per litre and channel
Connection through thread or flange: F1″ BSP. Direct connection to the GESPASA pumps. Optional: flanges with thread of 1″
