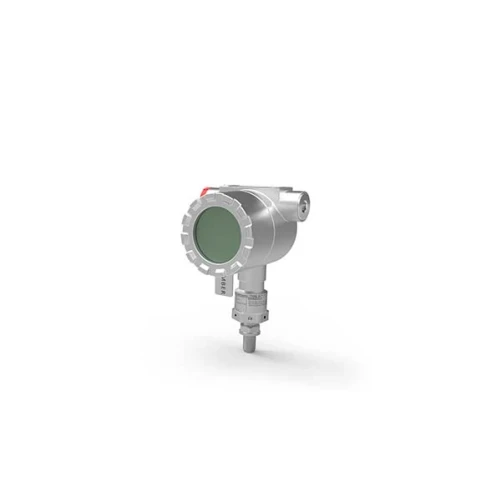

Local Display (FlowPod) with HART and Exd certification

Local Display (FlowPod) with HART and Exd certification - Image 2

Local Display (FlowPod) with HART and Exd certification - Image 3

Local Display (FlowPod) with HART and Exd certification

Technical Data

Carrier frequency, inductive or Reed switch input
Analog Output: 4 to 20 mA passive (2-wire)
HART 7 interface
2x configurable switch outputs for alarm, pulse or batch
Operating Temperature: -20 °C up to +75 °C [-4 °F up to +167 °F].
20+ point linearization of the measured value
Ingress Protection: IP66/68 - NEMA 4X
ATEX, IECEx

Features

Explosion-proof (Exd/XP)
Lightweight DIN 1.4401 [AISI 316] stainless steel housing
Screwless design for quick and easy on-site installation
Calibration data transmission by memory card
FRAM memory

Productinformatie en datasheets →

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

Add to quote

Categories: Evaluation Electronics, Kem Küeppers Tag: update2026

Beschrijving

The FlowPod display analysis unit is a high-precision 2- or 4-wire 4 - 20 mA display. All units in the series feature a graphical interface, intuitive user guidance, an adjustable 4 - 20 mA output, a linearization option and a digital output for flow, limit and batch. Since K-factor and size are freely selectable, they can be adapted to any flowmeter and for any application.

The FlowPod display also has a memory card interface that allows easy transfer of calibration data in the field without removing the FlowPod.

The display can be mounted directly or remotely with a suitable armored signal cable. The standard specification includes the HART 7 protocol on a 2- or 4-wire 24 V DC powered system.
