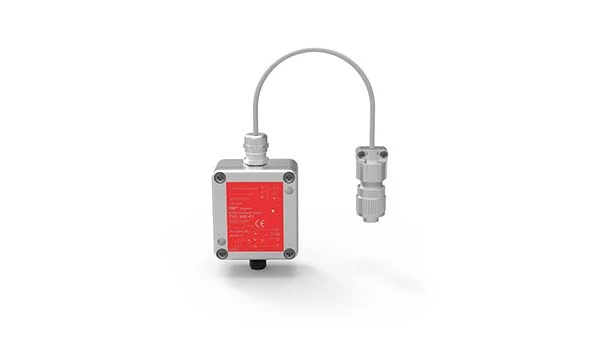

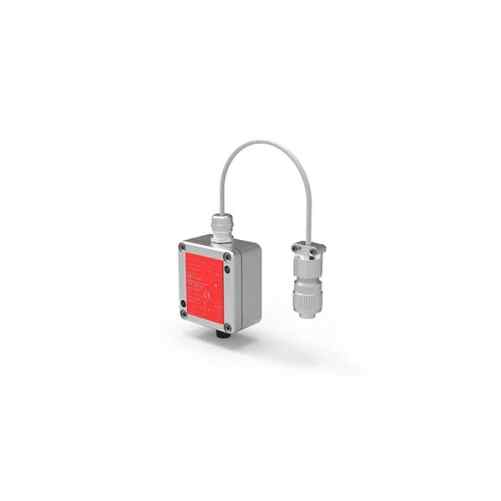

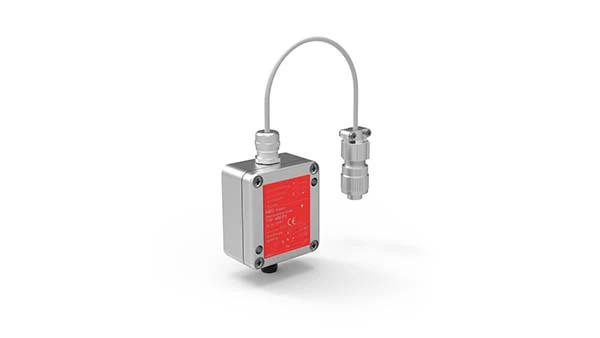

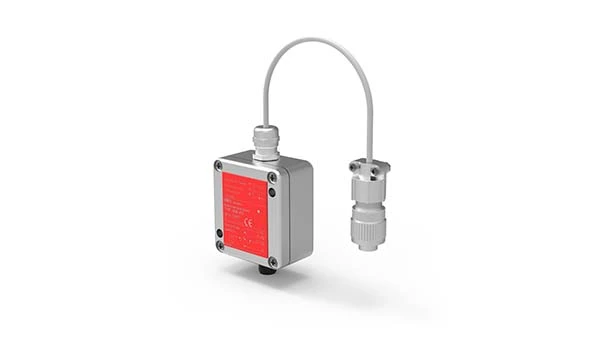

Local Converters (WIE) programmable and with interface
On backorder, please contact us for the expected delivery date.
The converters are passive 4 - 20 mA sensors with inductive input stage. Both analog and frequency output can be linearized with up to 10 points.
The inductive transducers are recommended for higher medium temperatures up to +350 °C [+662 °F].
The integral interface and the KEM EasyControl software allow for free programming.
- Excellent rating: 96.42% had a good to very good experience
- Personal customer service and advice
- Extra discount possible for large quantities: Contact us
Description
Output Signal4 - 20 mA, 2-wire (passive)
Supply Voltage12 - 30 V, regulated
Frequency Range1 up to 5,000 Hz depending on flow meter
Allowable Load20 mA, max. 800 Ω
Response Time250 ms (for input frequencies > 7 Hz)
Ambient Temperature-40 °C up to +70 °C [-40 °F up to +158 °F].
Medium Temperature-20 °C up to +350 °C [-4 °F up to +662 °F].
