- Shock and vibration resistant
- Robust and long life

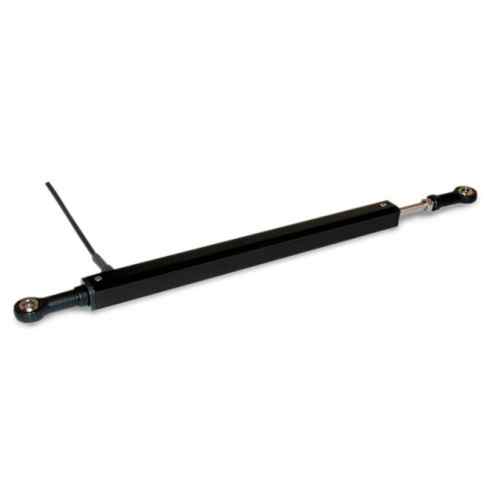

The VLP linear potentiometer series is designed for applications with high technical requirements. These linear transducers have a 15 mm diameter, good sealing and are available in stroke lengths from 25 mm to 290 mm. Proven track and wiper technology ensures longer life, which can also withstand temperatures up to 175 °C.
The VLP is mounted with rod head bearings, allowing it to be used in a number of applications.
Specifications:
life cycles | >25 million euros |
repeatability | < ± 0.01 mm |
Operating speed: | Maximum 10 m/s. |
Shockproof | 50G, 10ms |
Temperature range | -40 o C do +150 o C ciągłe do +175 o C short-term |
Max. excitation voltage: | 42 VDC |
Mech. stroke | electric stroke + 1.5 mm |
Track type: | Conductive plastic |
Wire size | M5 |
Cable length: | 600 mm |
Cable Type | Raychem 55, 24 AWG |
