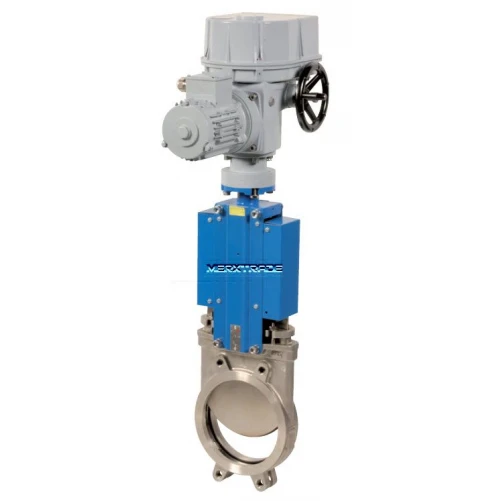

Knife gate valve electric actuated 230V AC IP67 DN150 Knife gate valve metal seat Iron, on-off MT 230V

Knife gate valve electric actuated 230V AC IP67 DN150 Knife gate valve metal seat Iron, on-off MT 230V

€3.838,90 (€4.645,07 incl. VAT)

96.42% Has a good to very good experience with SENSORS.NL
Personalized customer service
Spacious assortment with a wide range of top brands
Need an additional discount for quantities? Please contact us

SKU: 94446009027100 Categories: Sensors.nl, Servomotors NON-Ex Tags: electric valve, Knife gate valve electric

Beschrijving
Downloads

Model:	Knife valve	Size range	DN 50-300 mm
Disc type:	Gate UNI-Directional	Material body:	CF8M
Connection:	Wafer with bolt holes	Material disc:	Stainless steel 316
Operation:	Electric multi turn	Material seat:	Metal
Pressure rating:	DN50-200=10bar 250=8bar 300=6bar	Temperature:	0 °C / + 100 °C.
Flange connect	PN10	Actuator fire:	Regada
Actuation:	230V AC IP67	Safety overdrive:	Handwheel
Actuator model:	SO2=DN50-150 MO3=DN200-300	Protection rate:	IP67

Rate this product

Product Documents

Datasheet
