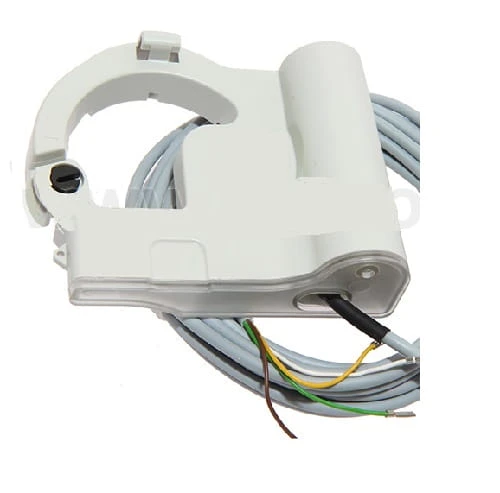

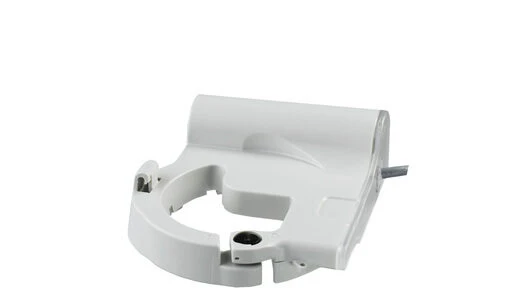

IZAR PULSE i V5 3-wire 1.5m (option for Altair V4), 1 pulse per 10 liters
€78,00 (€94,38 incl. VAT)
- Cable length 1.5 m (3-wires version)
- Power supply Lithium battery 3.6 V
- Battery lifetime Up to 15 years **
- Output Maximum current values : 50 mA
- Maximum voltage values : 30V
- Pulse duration 50 ... 500 ms
- Pulse ratio 1:1 litre
- Maximum frequency Hz 8
- Open collector output
- impedance > 1MΩ
- Standards 2014/30/UE Directive, CE
Available on backorder
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
IZAR PULSE i is a pulse transmitter that can be connected to all water meters of the Diehl Metering inductive modular series (Ti).
The IZAR PULSE i generates pulses to manage water volume and features fraud alarms. It can be connected to remote readout or consumption analysis systems.
Characteristics:
- A clamping ring for secure attachment and easy re-mounting on another meter.
- Compatible with inductive modularity "Ti" 3- and 4-wire versions available
- Multiple configurations available upon request
- Management of flow direction Sabotage alarms
- Open collector output
- Available in dry contact version
- Specific pulses possible and optional with 3 outputs
- Lifetime up to 15 years
