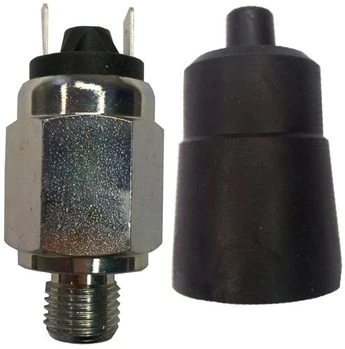

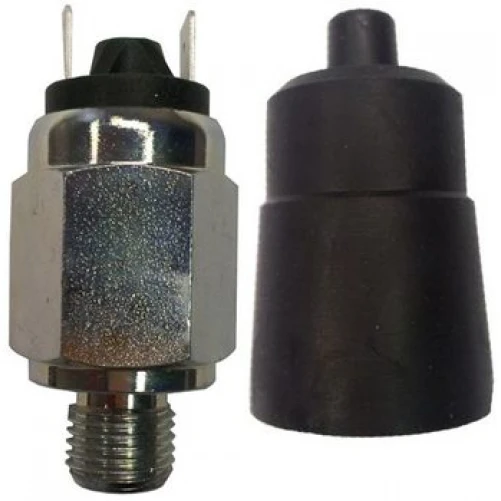

Adjustable pressure switch type PF244

Electromechanically adjustable high voltage pressure switch (max. 250 volts), normally open or normally closed contacts, electrical connection to faston 6.3 x 0.8 IP00. Key hexagonal housing 24. IP54 electrical protection with CP54 protective cover is supplied separately. Threaded process connections.

Pressure range (Bar)	0,1..1, 0,2..2, 1,5..10, 15..50, 40..300, 40..80, 9..20
Overpressure max.	600, 300
Max supply	220 V
Brand	Sensors.nl
