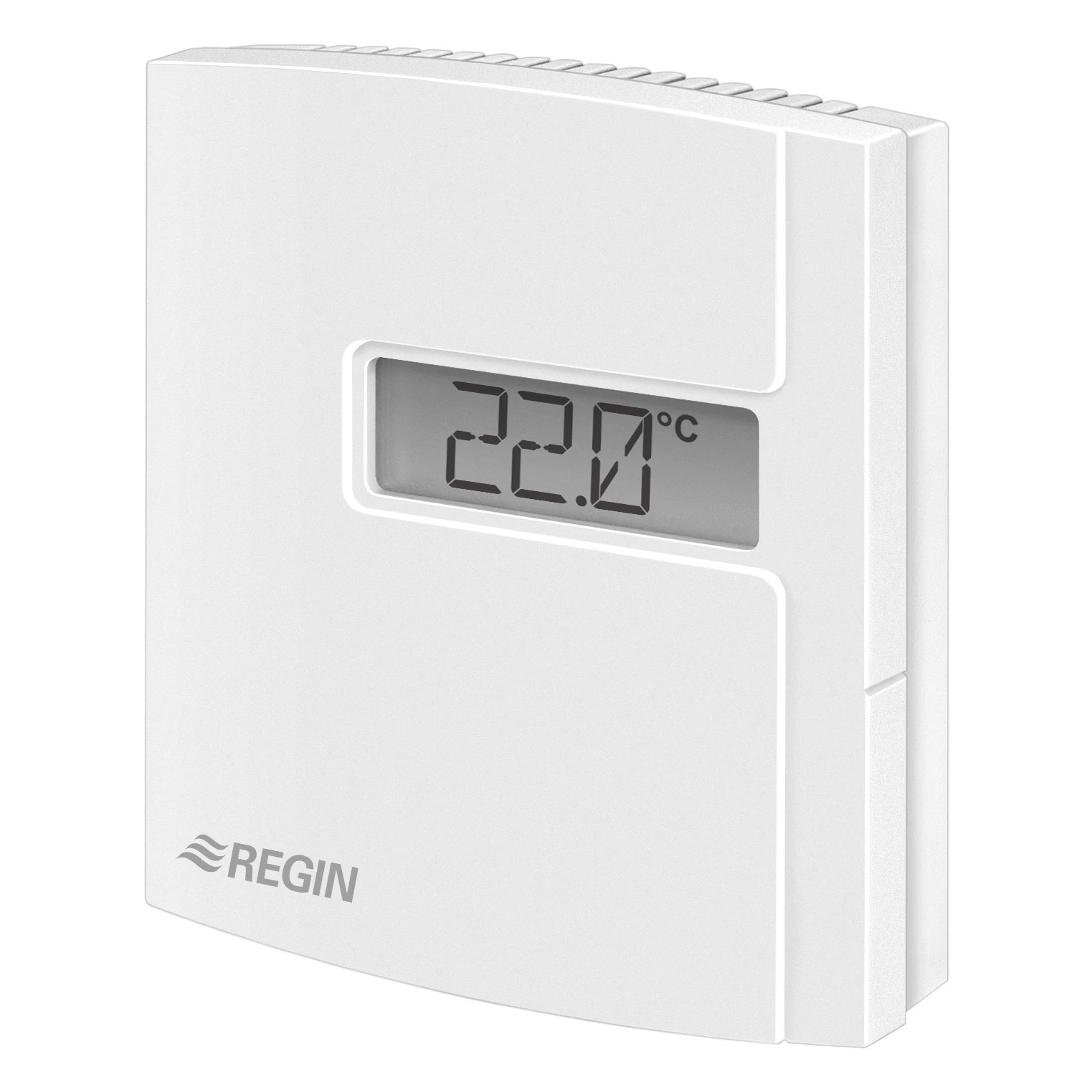

HTRC10-D
€283,50 (€343,03 incl. VAT)
On backorder, please contact us for the expected delivery date.
RH + °C
Available on backorder
Why buy from Sensors.nl:- Excellent rating: 96.42% had a good to very good experience
- Personal customer service and advice
- Extra discount possible for large quantities: Contact us
Description
Specifications
| Power Supply | 24VAC/DC (22...26 V AC 50Hz / 15...35 V DC), 2.0 VA |
|---|---|
| Dimensions, external (WxHxD) | 100x85x30 mm |
| Display | Yes |
| Supported protocols | Modbus |
| Measuring range, temp | 0...50 °C |
| Output temperature | Modbus |
| Measuring range, humidity | 0...100 % RH |
| Output humidity | Modbus |
| Accuracy, humidity 1 | ± % RH @ 0...100 |
| Protection class | IP30 |
|---|---|
| Ambient humidity (non-condensing) | 10...90 % RH |
| Storage temperature | -25...60 °C |
| Mounting | Room |
| Accuracy, temperature 1 | ±0.2 °K @ 20...20 °C |
| Terminal type | Screw Terminal |
| Terminal wire size | 1.5 mm² |
| Material, housing | Polycarbonate (PC) |
| Color, housing | Signal white RAL 9003 |
