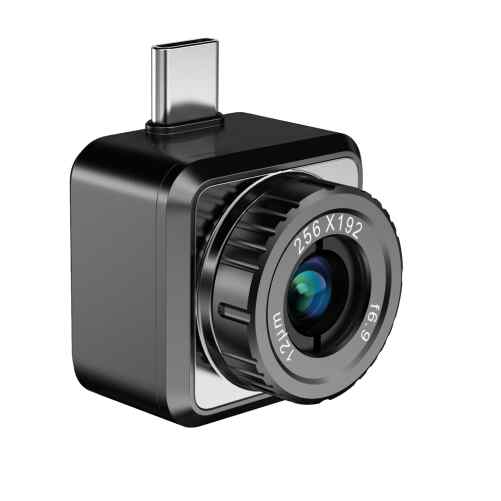

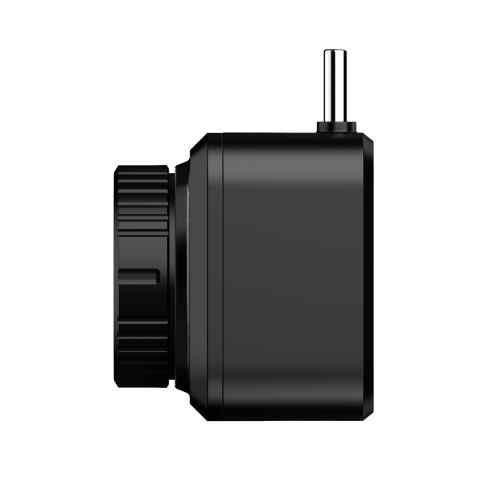

HIKMICRO Thermal Imaging Camera 256x192 Thermal pixels, Focusable, 25Hz, USB-C | Mini2Plus

HIKMICRO Warmtebeeldcamera 256x192 Thermische pixels, Focus baar, 25Hz, USB-C | Mini2Plus - Image 2

HIKMICRO Warmtebeeldcamera 256x192 Thermische pixels, Focus baar, 25Hz, USB-C | Mini2Plus - Image 3

HIKMICRO Warmtebeeldcamera 256x192 Thermische pixels, Focus baar, 25Hz, USB-C | Mini2Plus - Image 4

HIKMICRO Warmtebeeldcamera 256x192 Thermische pixels, Focus baar, 25Hz, USB-C | Mini2Plus - Image 5

HIKMICRO Warmtebeeldcamera 256x192 Thermische pixels, Focus baar, 25Hz, USB-C | Mini2Plus - Image 6

HIKMICRO Warmtebeeldcamera 256x192 Thermische pixels, Focus baar, 25Hz, USB-C | Mini2Plus - Image 7

HIKMICRO Warmtebeeldcamera 256x192 Thermische pixels, Focus baar, 25Hz, USB-C | Mini2Plus - Image 8

HIKMICRO Thermal Imaging Camera 256×192 Thermal pixels, Focusable, 25Hz, USB-C | Mini2Plus

Name: HIKMICRO Thermal Imaging Camera 256x192 Thermal pixels, Focusable, 25Hz, USB-C | Mini2Plus
SKU: HIKMICRO Mini2plus
Availability: InStock

€229,00 (€277,09 incl. VAT)

In stock, ready to ship

Make your phone smarter with the HIKMICRO thermal camera Mini2

What's in the box:

Infrared camera
USB adapter
Extension cable
Protective cover
Manual

Product information and datasheets →

1 in stockOrdered before 3:00 PM, shipped the same business day.

Why buy from Sensors.nl:

Excellent rating: 96.42% had a good to very good experience
Personal customer service and advice
Extra discount possible for large quantities: Contact us

Add to quote

SKU: HIKMICRO Mini2plus Categories: Deals, Portable measurement, Hikmicro, Infrared camera, Thermal imaging camera Android, Thermal imaging cameras Tag: update2026

Description

Measuring only 42 x 22.5 x 11.2 mm (1.65 x 0.89 x 0.44 inches) and weighing only 20 g (0.71 oz), it fits in your pocket, tool bag or anywhere else for quick and easy access.

The Mini2plus USB-C Camera for Smartphone is a compact thermal imaging camera with very high resolution, and a wide temperature range from -20°C to 350°C.

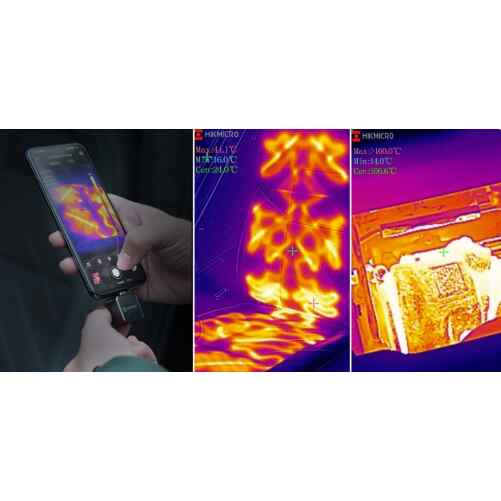

Quickly and accurately locate temperature problems that cannot be seen with the naked eye.

You'll find air leaks, plumbing problems, hot relays and fuses, insulation problems, and more.

The Mini Series thermal camera is a cost-effective and powerful tool for any job.

Infrared image
IR resolution	256 × 192 (49,152 pixels)
NETD	< 40 mK (at 25 °C, F#=1.0)
Image frequency	25 Hz
Detector distance	12 μm
Spectral range	7.5 to 14 μm
Focal length	6.9 mm
F-number	F1.0
Field of view (FOV).	50° × 37.2°
Focus mode	Manual focus
Min. Focus distance	0.1 m (0.33 ft)
Display
Image modes	Thermal/Fusion
Color Palettes	Whitehot, Blackhot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined
Measurement and analysis
Temperature range object	-20°C to 350°C (-4°F to 662°F)
Accuracy	Max (±2°C/ ±2%), for ambient temperature 15°C to 35°C and object temperature above 0°C.
Measuring instruments	Center Spot, Hot Spot, Cold Spot User-adjustable: 3 spots and 3 rectangles.
Level and range mode	Auto/Manual
General
Power consumption	360 mW
Protection level	IP40
Drop test height	1 m (3.28 ft)
Operating Temperature Range	-10°C to 50°C (14°F to 122°F )
Storage temperature range	-20°C to 60°C (-4°F to 140°F )
weight	Approx. 24 g (0.044 lb)
Dimensions	26.6 × 26.6 × 25 mm (1.05 × 1.05 × 0.98 in)
EAN Code	6974004642426
