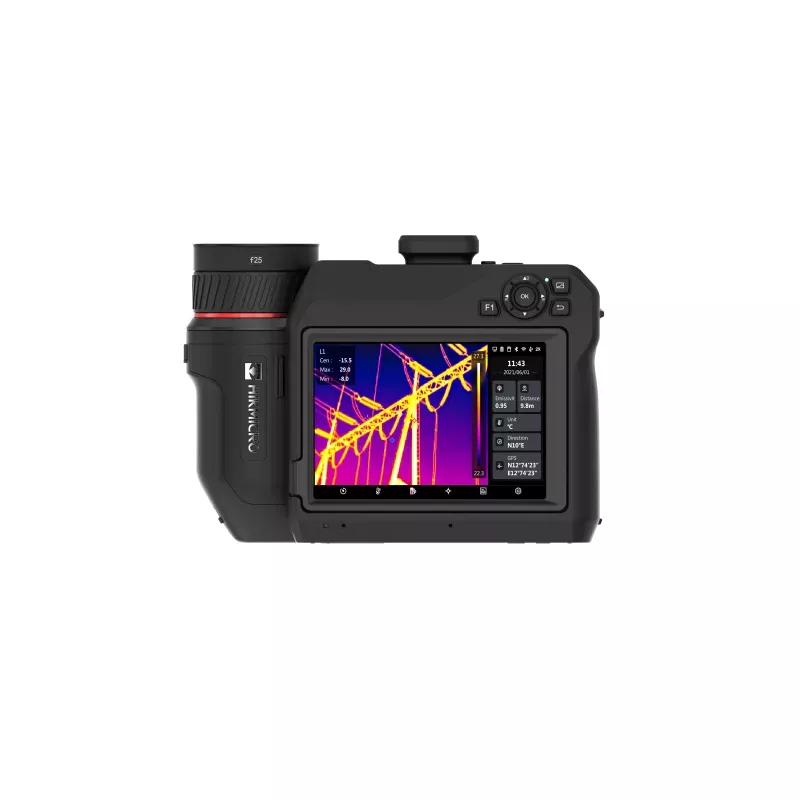

Hikmicro SP120H-L25

The new Mega-Pixel camera from HIKMICRO at an absolute bang for the buck:
This high-end high-temperature camera with a top resolution of 1280 x 1024 pixels measures temperatures from -40 to +2200°C with an extremely high sensitivity of less than 0.02°C (20mK). Here the variant with the 25° lens.

The high-quality housing with rotatable, very large touchscreen, additional viewfinder for working in sunlight and fully interchangeable lenses ensure perfect deployment in any working environment. As with all of HIKMICRO's high-quality thermal imaging cameras, the SP120 allows live image transfer to a smartphone or tablet (iOS or Android) and full control of the camera via the accompanying app.

A live image including simple analysis capabilities can now also be displayed via HIKMICRO's new, free Analyzer software starting with version 1.5.

In addition, due to the autofocus, optionally via laser distance or contrast detection with simultaneous manual correction option, this camera offers additional comfort in daily work. A dust protection glass for the lens is included for harsh environments, in addition, two batteries, an external charger and, of course, a robust transport case are already included.

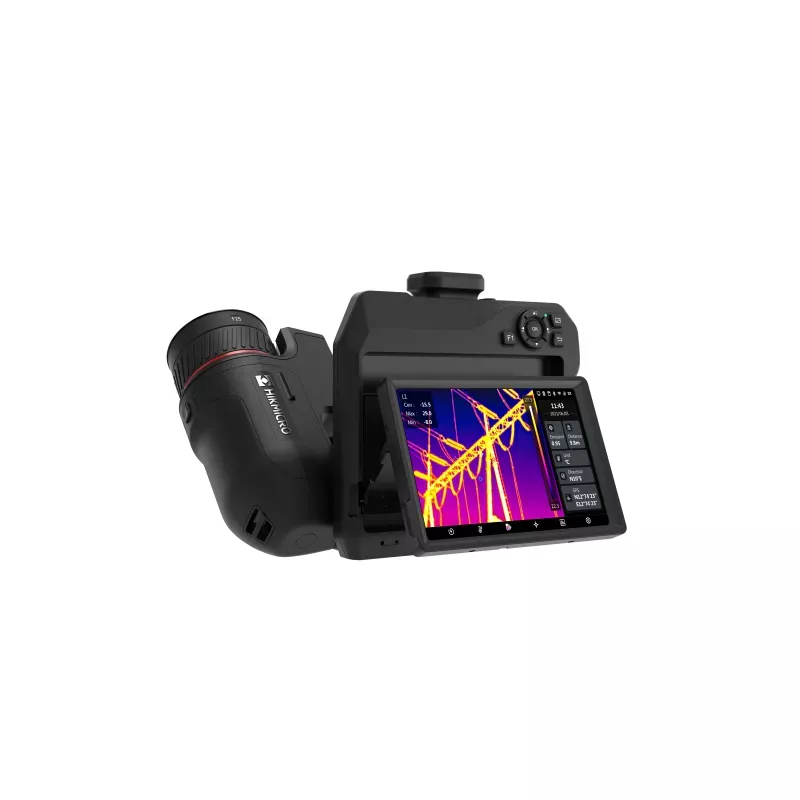

The large, rotatable display with full touch operation, quick adjustment of level and range and voice recording optionally via the integrated microphone or an optional Bluetooth headset together with the extremely robust construction (tested drop height of 2m) make this camera the perfect tool for the thermography professional. The second battery and the external charger for two batteries are included for free with the camera as well as the professional analysis software.

The optionally available additional lenses have integrated calibration data that is automatically loaded onto the camera when set up. A recalibration of the camera when lenses are purchased later is therefore not necessary.

Technical data:
- Infrared sensor: 1280 x 1024 pixels, 17µm pixel size
- Measuring range: -40° to +2200°C
- Sensitivity: NETD <20mK
- Accuracy: +/- 1°C or +/- 1% in the range 0 - 150°C, otherwise +/- 2°C or +/- 2% v.Mw.
- Minimum distance: 0.2m
- Measurement point: IFOV 0.34mrad (25° lens)
- Focus: Manual focus, laser autofocus, contrast autofocus, continuous autofocus
- Picture frequency: 30 Hz
- Real-image camera: integrated with 13MP, 64° x 51° lens
- Display: Thermography, real-image, fusion or picture-in-picture
- LED lighting: integrated
- Laser pointer: yes, with integrated rangefinder, displaying the real laser point in thermography
- Integrated GPS and compass function for precise location determination of shots
- Palettes: 7

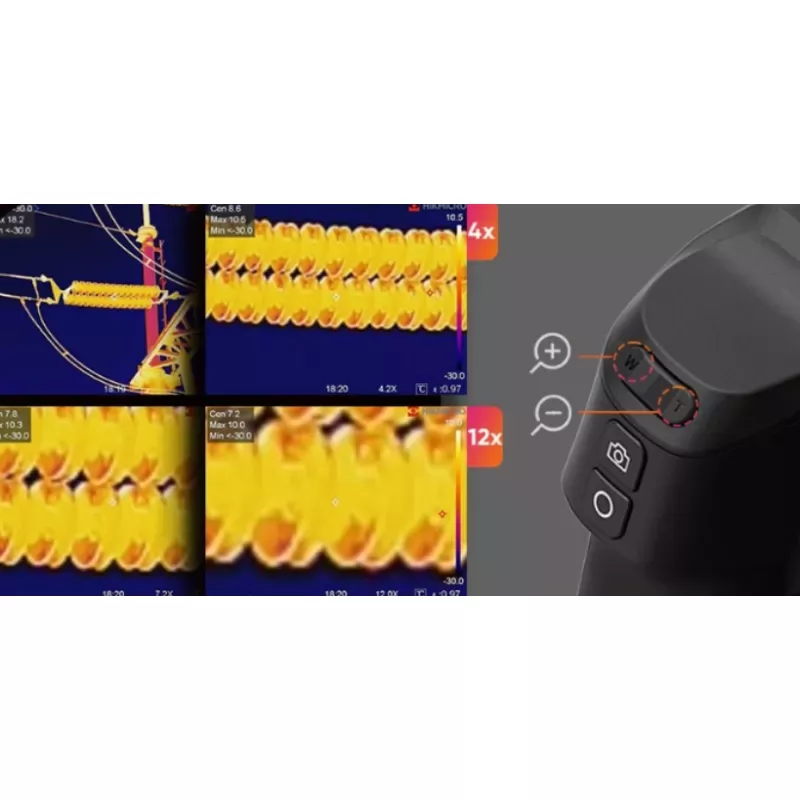

- Digital zoom: 1x - 12x
- Measurement functions: Center, hot- and coldspot, 10 x variable point, 1 x variable line and 3 x variable planes
- Voice recording: Yes, up to 60 seconds per image
- Headset connection: yes, via Bluetooth
- Text commentary: Yes, max. 200 characters per image
- Screen: 5″ with 1920 x 1080 pixels OLED, touch controls
- Viewfinder: built-in with 1280 x 768 pixels
- Storage: removable Micro SD card with 128GB
- Recording:

Single image: fully radiometric recording, approx. 60,000 images
Video: non-radiometric MP4 recording, up to 60 hours
- Connections: Bluetooth 4.2 + WiFi 802.11b/g/n (2.4GHz) + USB Type C + HDMI-D
- Battery: replaceable LiIon battery with 4 hours of operating time
- Splashproof: IP54
- Shockproof: Designed for drop heights up to 2m
- Dimensions: 205x150x88mm
- Weight: 1590g with battery
- Tripod connection: UNC 1/4″ (standard tripod connection)
Delivery Scope:
- Camera SP120H

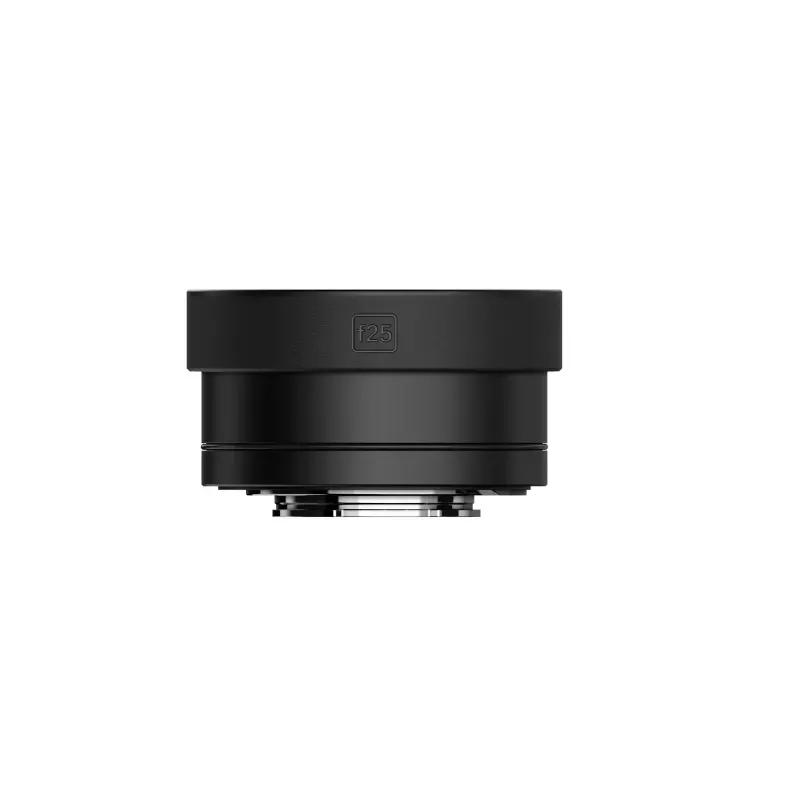

- Lens L25
- Protective glass
- USB cable
- HDMI cable
- Mains adapter
- Hand strap
- 2 x interchangeable battery
- External charger for 2 batteries
- Hard-shell case
- Printed quick start guide
- Analyzer software to download
