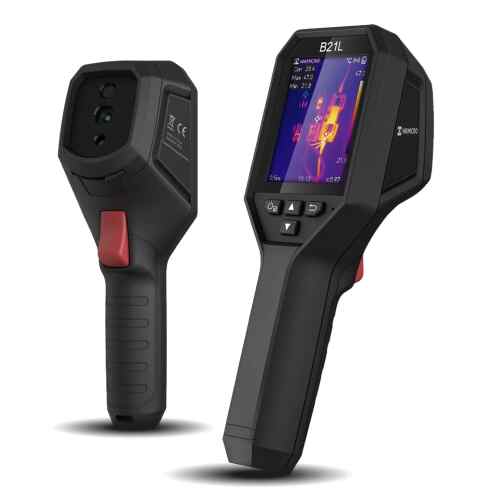

Hikmicro B21L | 256 x 192 pixels

Pixel spacing 12 μm
Spectral range 7.5 - 14 μm
NETD < 40 mK (@25°C), F#=1.0
Focal length 3.6 mm
FOV (field of view) 37.2°× 50°
Image frequency 25 Hz
Fixed focus
IFOV (spatial resolution) 3.3 mrad
Aperture F1.0
Minimum focusing distance 0.3 meters
Color palettes White hot, Black hot, Rainbow, Ironbow

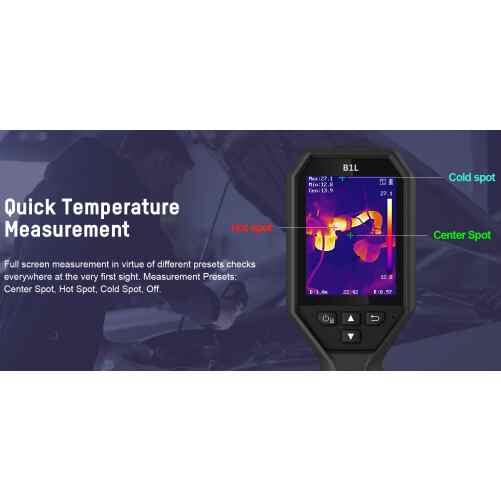

Presets measurement Center Spot, Hot Spot, Cold Spot, Point Presets, Off
High temperature alarm Sound warning
Image storage capacity 90,000 images
Image file format JPEG with measurement data

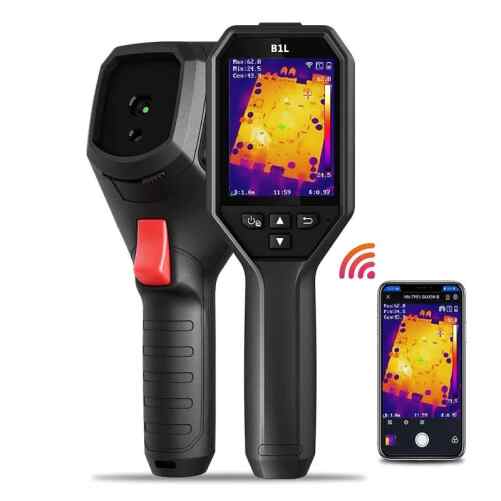

Wi-Fi 802.11 b/g/n (2.4 GHz)
Interface USB Type-C

Delivery Scope:

• Hikmicro B21L
• Charger
• USB cable
• Wristband
• Quick Start Guide
