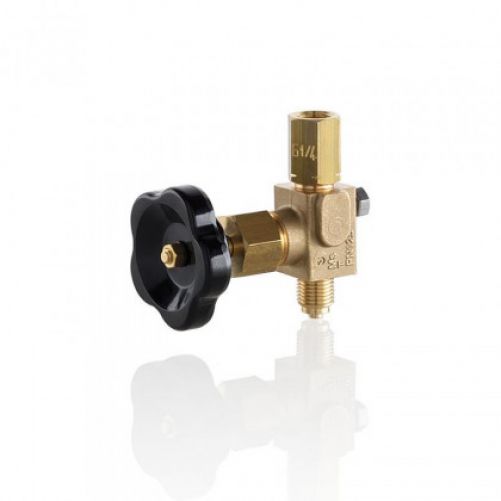

Gauge Valves Special types G 1/4

In stock, ready to ship

Why buy from Sensors.nl:

Excellent rating: 96.42% had a good to very good experience
Personal customer service and advice
Extra discount possible for large quantities: Contact us

SKU: N/B Categories: AS-Schneider, Instrumentation valves - manifolds - valve blocks, Gauge valves and pressure gauges Tag: update2026

Description

The size of the AS-Schneider Gauge Valves G 1/4 is smaller compared to the standard gauge valves, especially the brass types. Carbon steel and stainless steel components are identical to the standard gauge valves. The components of the brass types are smaller and the valve stem is a one-piece design. The valves are applicable for a max. allowable (Working) Pressure (PS) of 125 bar (1,813 psi) (brass) respectively 250 bar (3,626 psi) (carbon steel and stainless steel) and a max. allowable Temperature (TS) of 200°C (392°F) (brass types) / 232°C (450°F) (carbon steel and stainless steel) for liquids, gas or vapors.

Please consider the requirement that valves and above all measuring instruments need to be protected against heating by hot media. This can be achieved by syphons or by instrument impulse lines with sufficient length.
