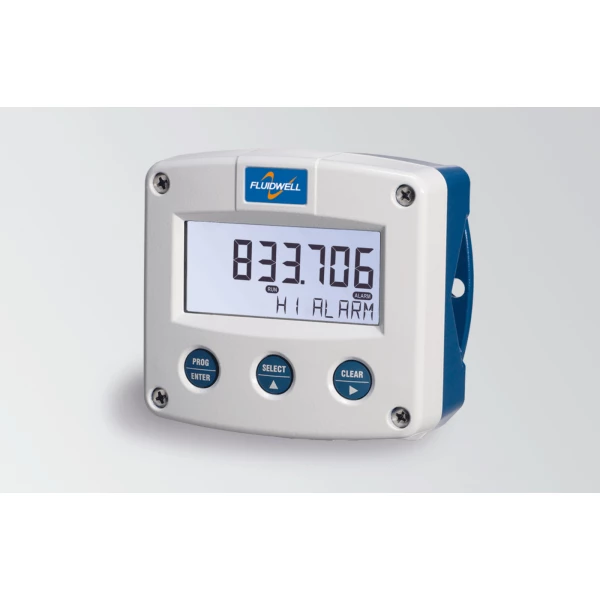

Fluidwell F Series - F190 Intrinsically Safe - Multi Purpose Monitor
With analog and high / low alarm outputs.
- Displays actual value, % and measuring unit.
- 4 alarm values can be entered: low-low, low, high and high-high alarm.

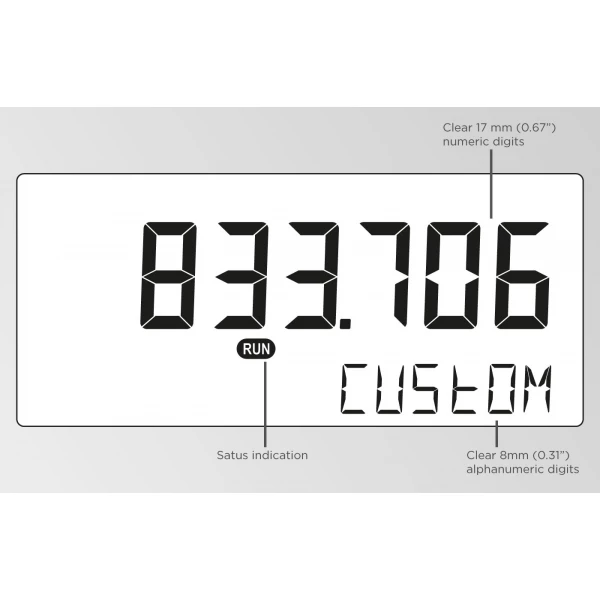

- Large 17mm (0.67″) digits.
- Wide range of engineering units for e.g. level, temperature and pressure and other applications
- Custom measuring unit with max. 8 characters.
- Full Modbus communication RS232/485/TTL.
- Loop or battery powered, 8 - 24V AC/DC or 115 - 230V AC power supply.
- Sensor supply 3 / 8.2 / 12 / 24V DC.
- Red flashing LED backlight in case of alarm.
- Intrinsically safe according to ATEX and IECEx.
- GRP, Aluminum or high grade stainless steel enclosure.
- Ambient temperature: -40°C to +80°C (-40°F to 176°F).
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
The F190 is a versatile general/multi purpose indicator with continuous monitoring feature. Beside the focus on level, temperature and pressure applications, it also contains a range of other measuring units and even the possibility to create a custom unit with max. 8 characters.
It offers the facility to set two low level and two high alarm values. If desired, an ignore function can be set up to allow for an incorrect measurement for a certain period of time.
Advantages
- Robust aluminum or stainless steel 316L field enclosure (IP66, IP67 / NEMA Type4X) .
It is so rugged, a truck can even stand on it! - Intrinsically Safe available - ATEX and IECEx approval for gas and dust applications.
- Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation.
- Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.
Product Documents
