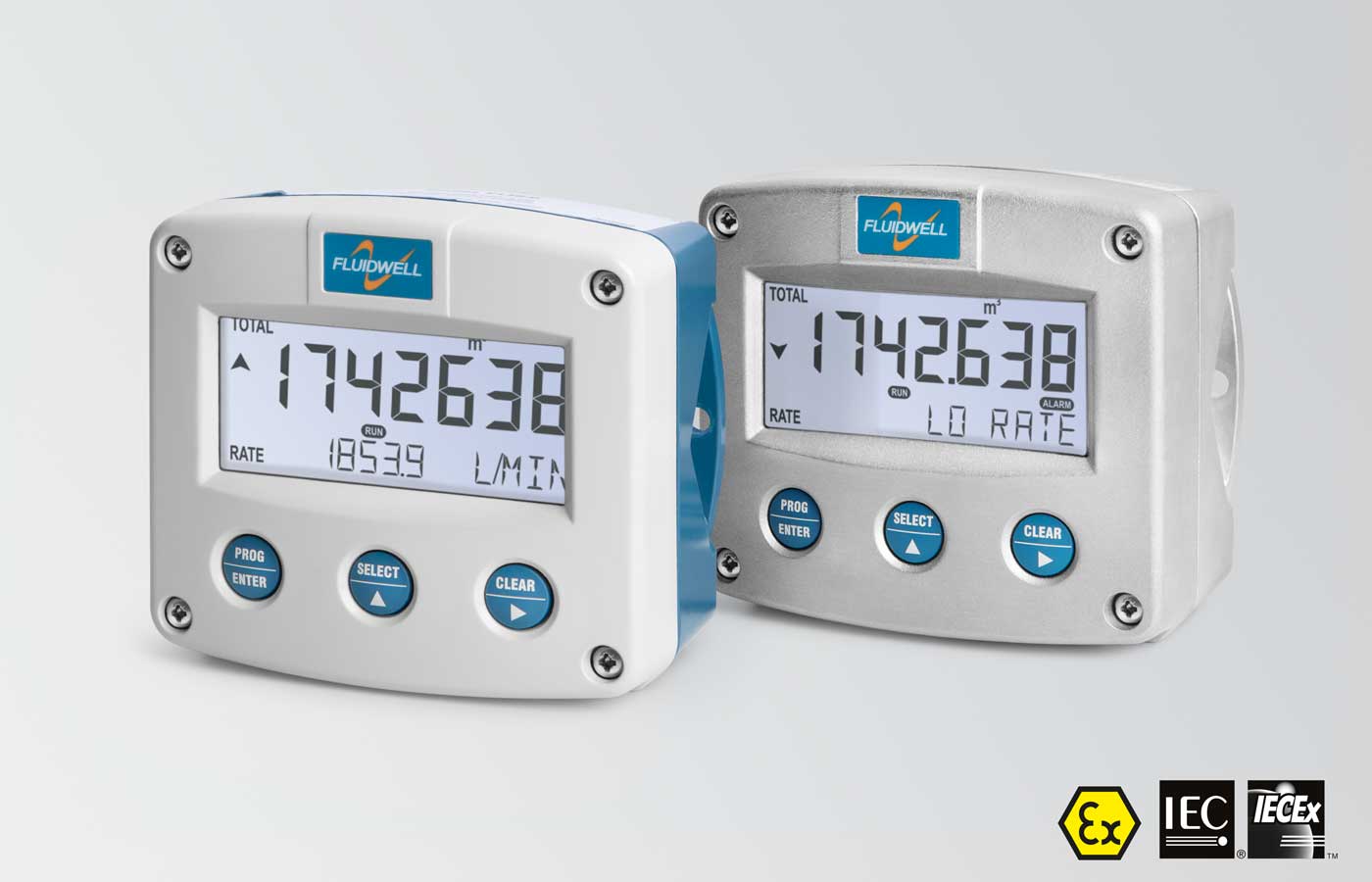

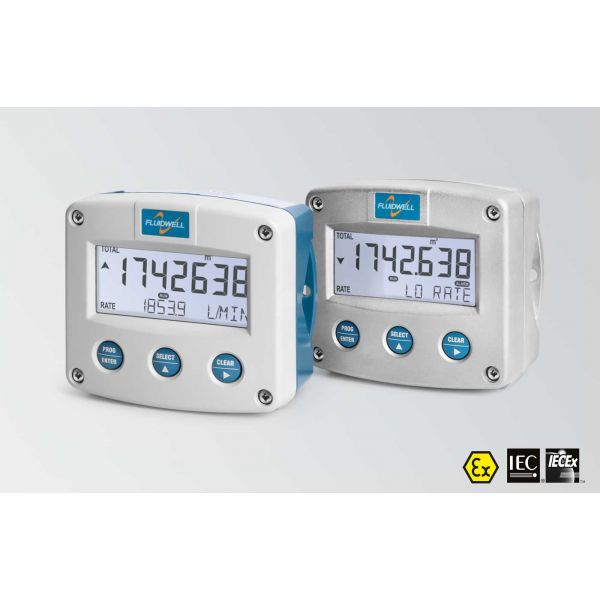

Fluidwell F Series - F118 Intrinsically Safe - Flow Rate Monitor / Totalizer
With linearization, high / low alarms, analog and pulse outputs.
- Ten point linearization of the flow curve - with interpolation.
- Flow rate monitoring: two alarm values can be set: low and high flow rate alarm.
- Alarm values can be changed by the operator or they can be password protected.
- Analog and pulse outputs.

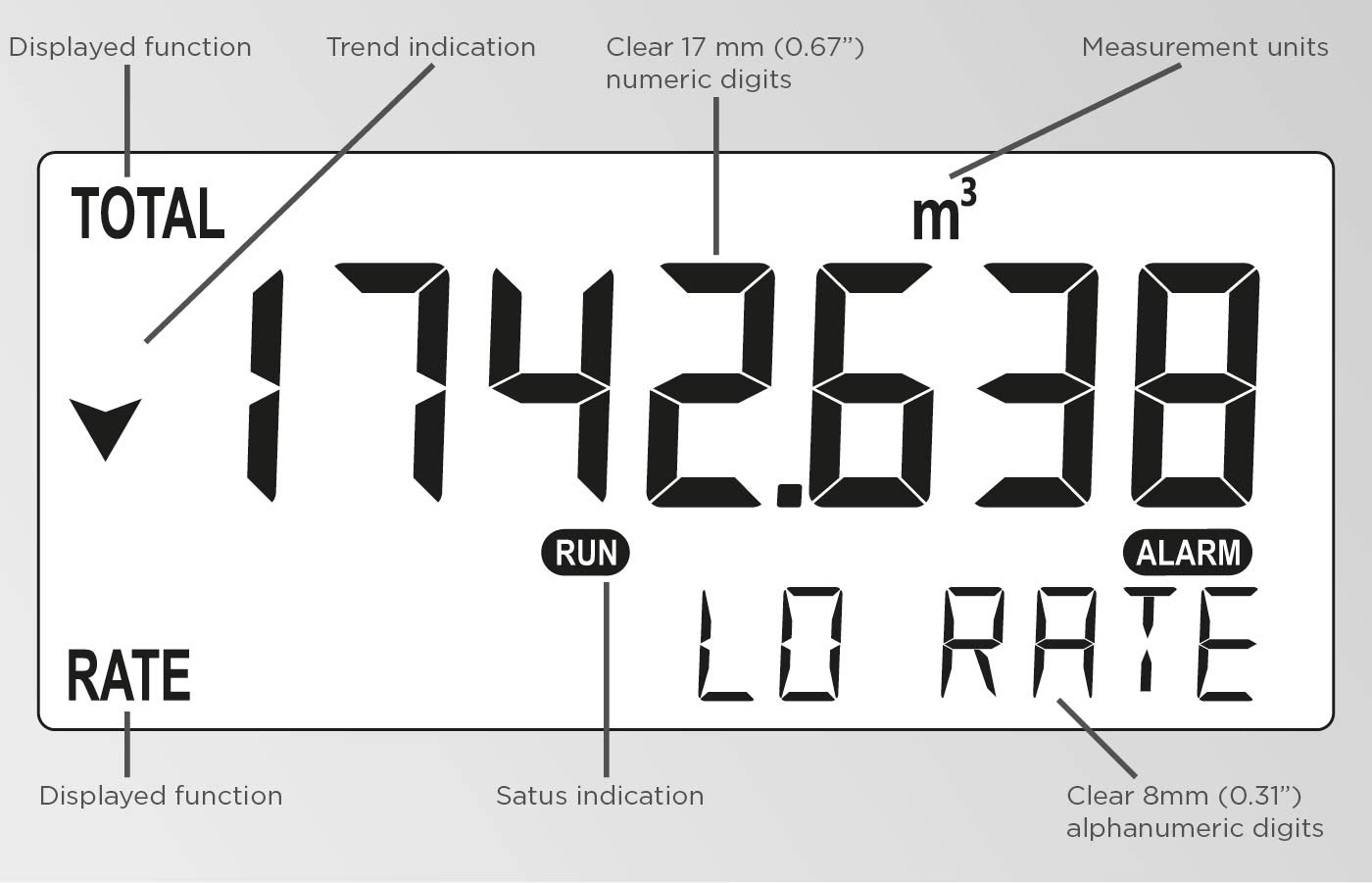

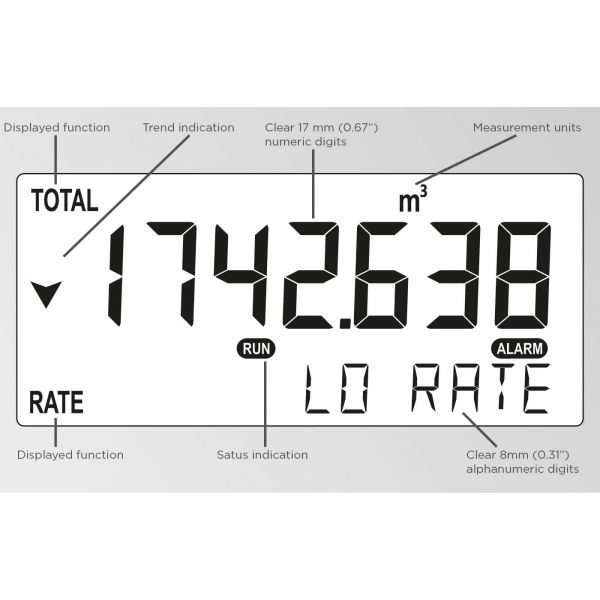

- Displays total and flow rate simultaneously.
- Flow rate: seven 8mm (0.31″) digits.
- Total - resettable: seven 17mm (0.67″) digits.
- Accumulated total - not resettable: eleven 8mm (0.31″) digits.
- Separate engineering units for flow rate and total on the display.
- Up to three configurable alarm or scaled pulse outputs.
- Displays clear alarm messages.
- LED backlight.
- Intrinsically safe according to ATEX and IECEx.
- GRP, Aluminum or high grade stainless steel enclosure.
- Auto backup of settings and running totals in EEPROM memory.
- Ambient temperature: -40°C to +80°C (-40°F to 176°F).
- Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
- Persoonlijke klantenservice en advies
- Extra korting bij grote aantallen mogelijk: Neem contact op
Beschrijving

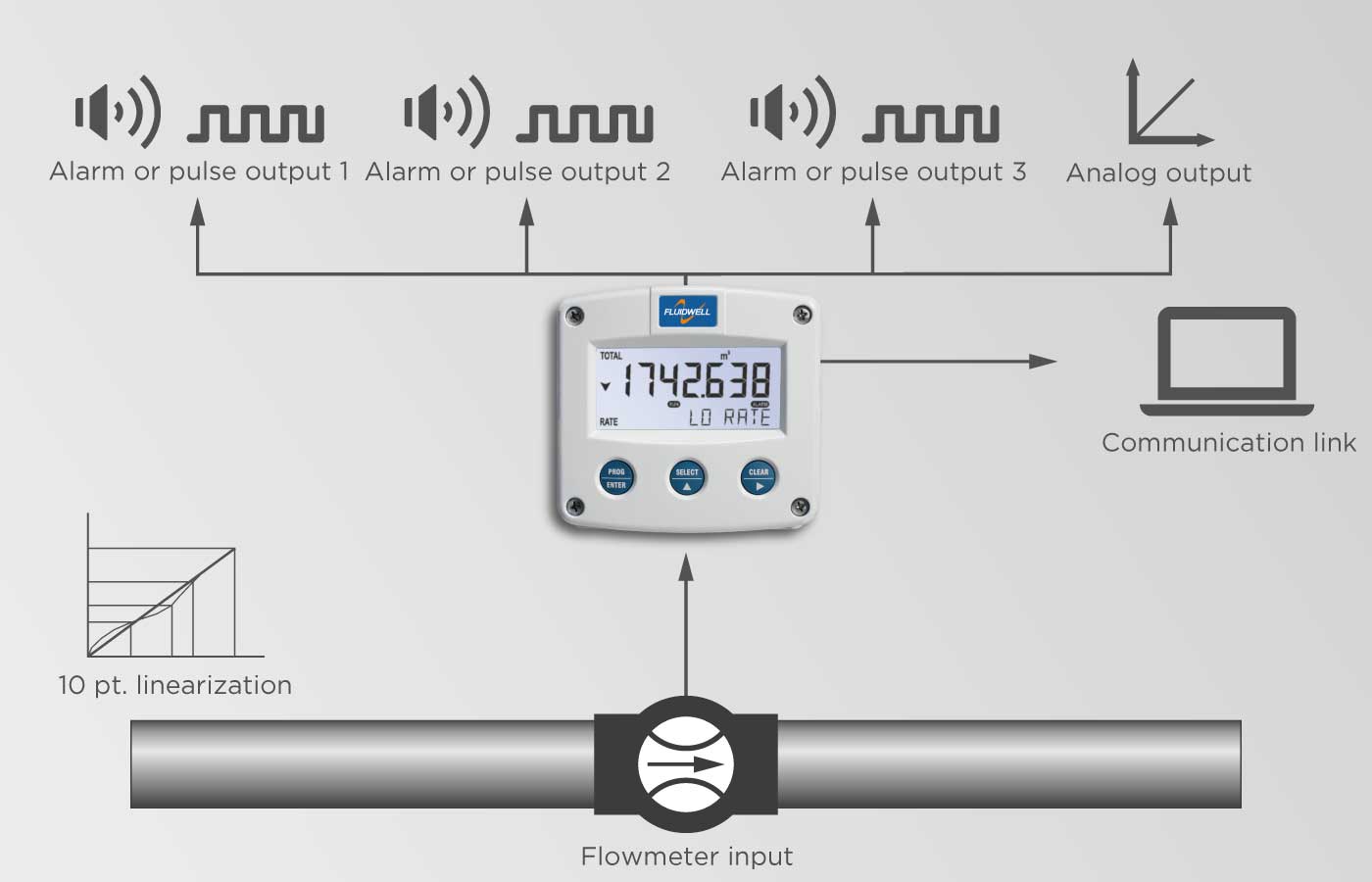

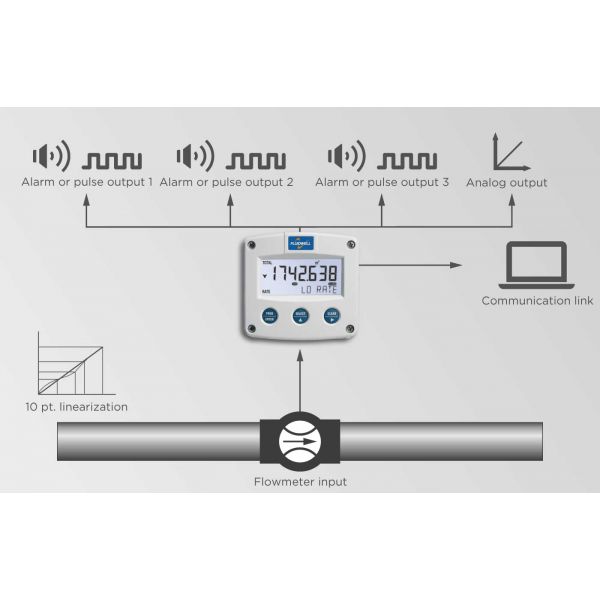

The F118 is a versatile flow rate indicator / transmitter and totalizer with the ability to precisely linearize the flowmeter signal. In addition to the average K-Factor or Span, ten linearization points can be entered with their frequencies or values. The unit will interpolate between these points, greatly enhancing accuracy in any flow range, even for very low frequency applications. Moreover, a continuous flow rate monitoring feature is available with high and low flow rate alarm values and up to three alarm outputs.
Flow rate and total are transmitted with an analog and scaled pulse output. The display shows flow rate, total, accumulated total, alarm values, alarm messages and status. On-screen engineering units are easily configured from a comprehensive selection.
Advantages
- Robust aluminum or stainless steel 316L field enclosure (IP66, IP67 / NEMA Type4X) .
It is so rugged, a truck can even stand on it! - Intrinsically Safe available - ATEX and IECEx approval for gas and dust applications.
- Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation.
- Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.
