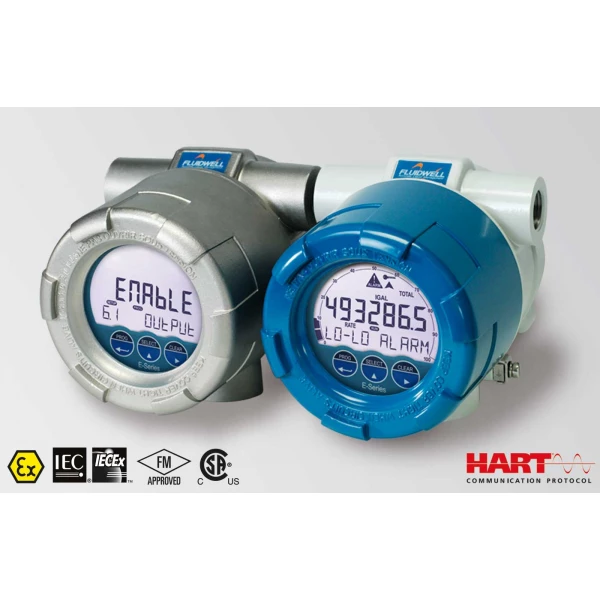

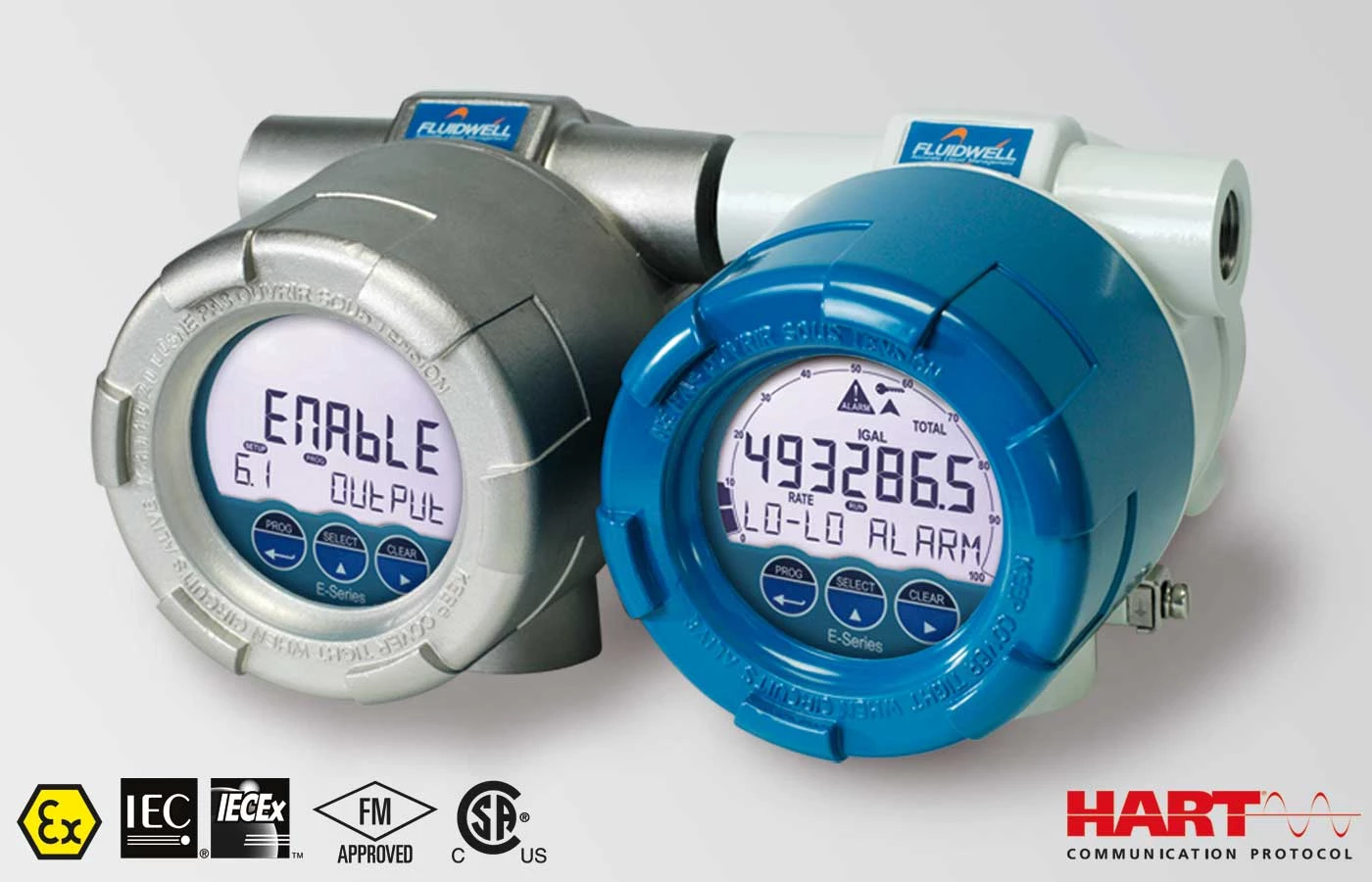

Fluidwell E Series - E018 Explosion proof - Flow rate Monitor / Totalizer

Fluidwell E Series – E018 Explosion proof - Flow rate Monitor / Totalizer - Image 2

Fluidwell E Series – E018 Explosion proof - Flow rate Monitor / Totalizer - Image 3

Fluidwell E Series – E018 Explosion proof - Flow rate Monitor / Totalizer - Image 4

Fluidwell E Series - E018 Explosion proof - Flow rate Monitor / Totalizer

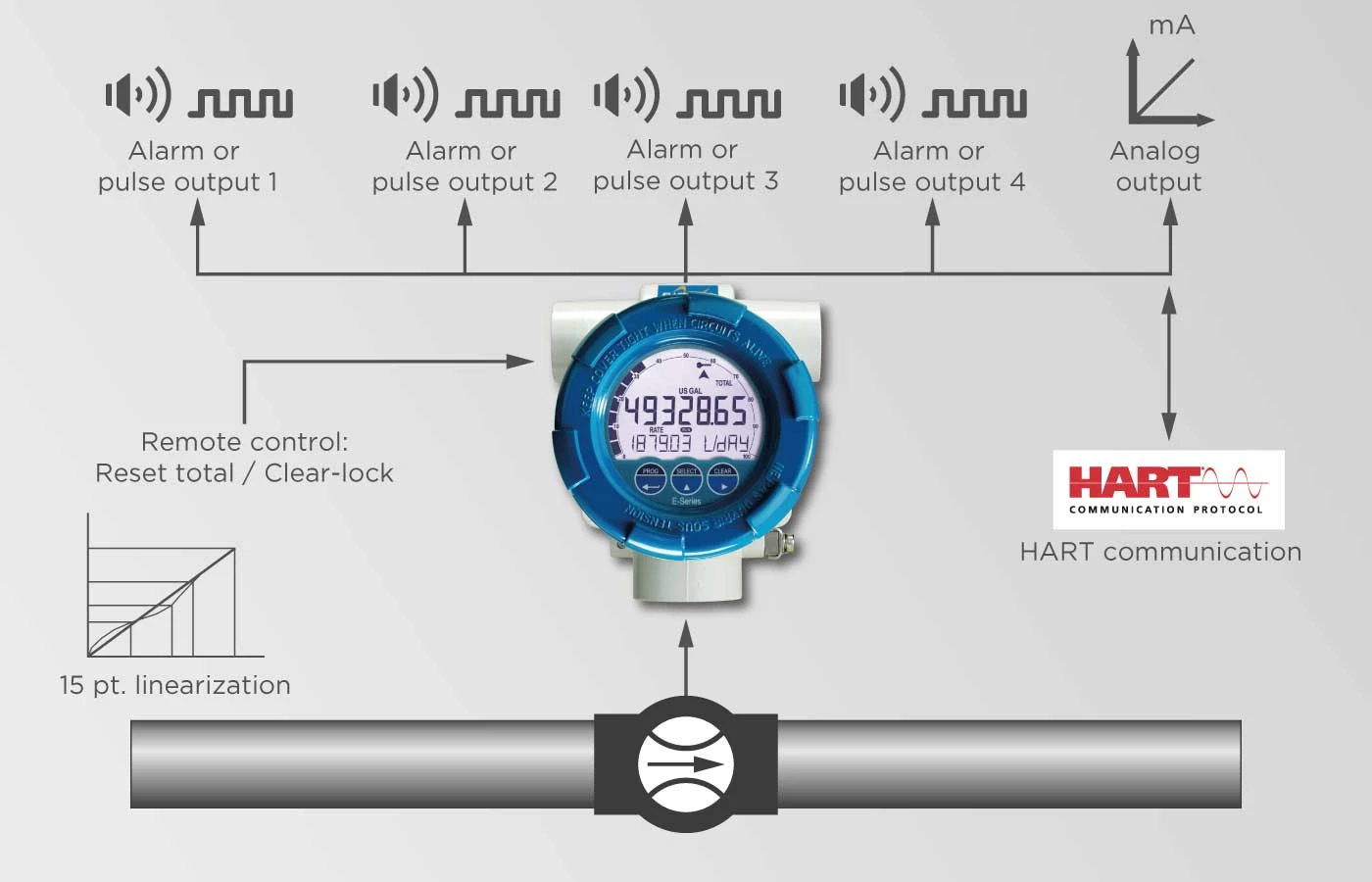

With linearization, high / low alarms, analog and pulse signal outputs and HART Communication.

Explosion proof according to ATEX, IECEx, FM and CSA C-US.
Aluminum or high grade stainless steel Ex d enclosure.
Easy installation with the spacious chamber and plug & play connectors.
Cost saving with an easy to install, 1" NPT thread for direct flowmeter mounting.

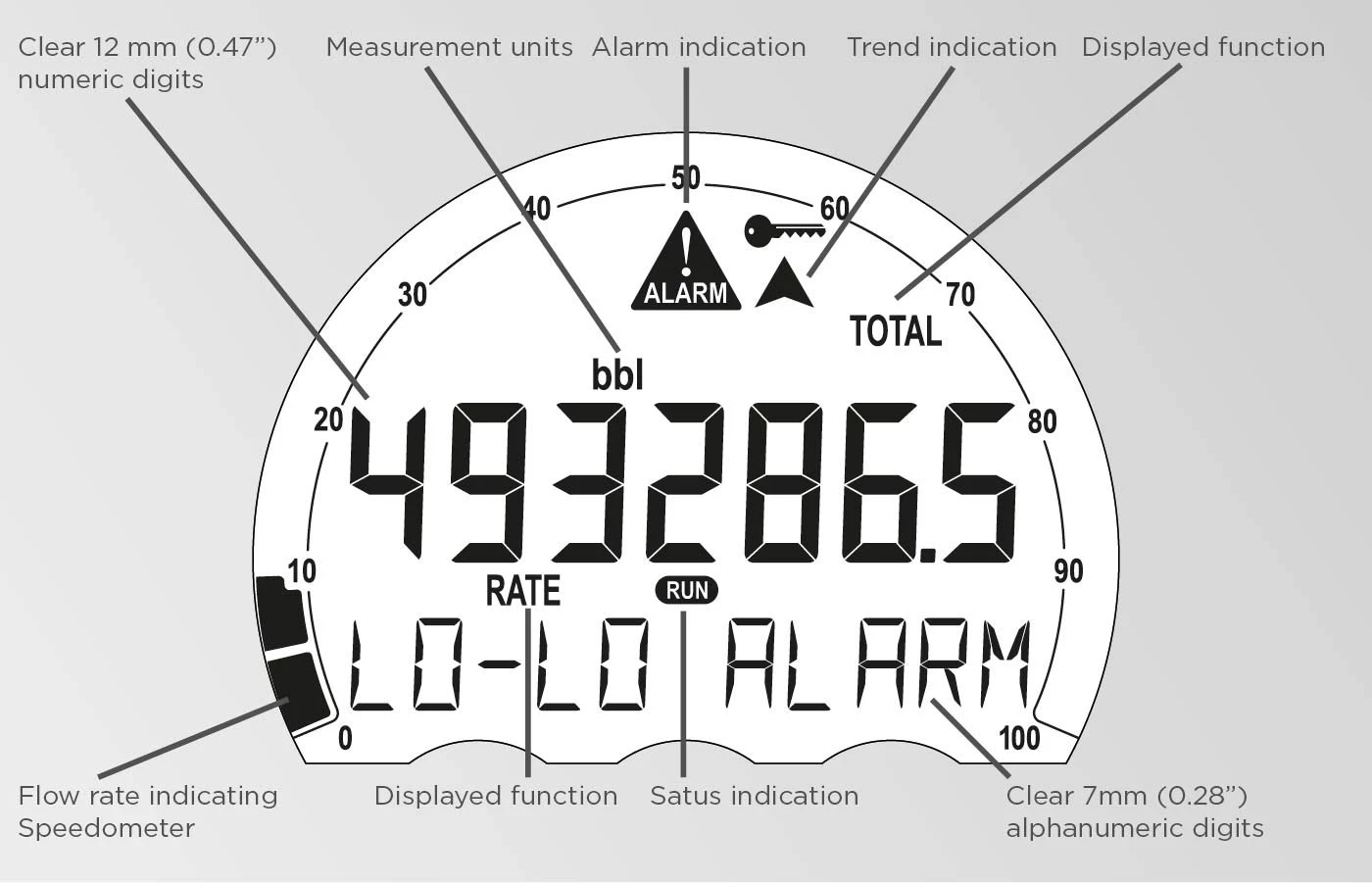

Key information at a glance as the display shows flow rate, total, measuring units and a flow rate indicating speedometer.
High and low flow rate alarm monitoring.
15 point linearization of the flow curve - with interpolation.
7 digit flow rate / total and 11 digit accumulated total.

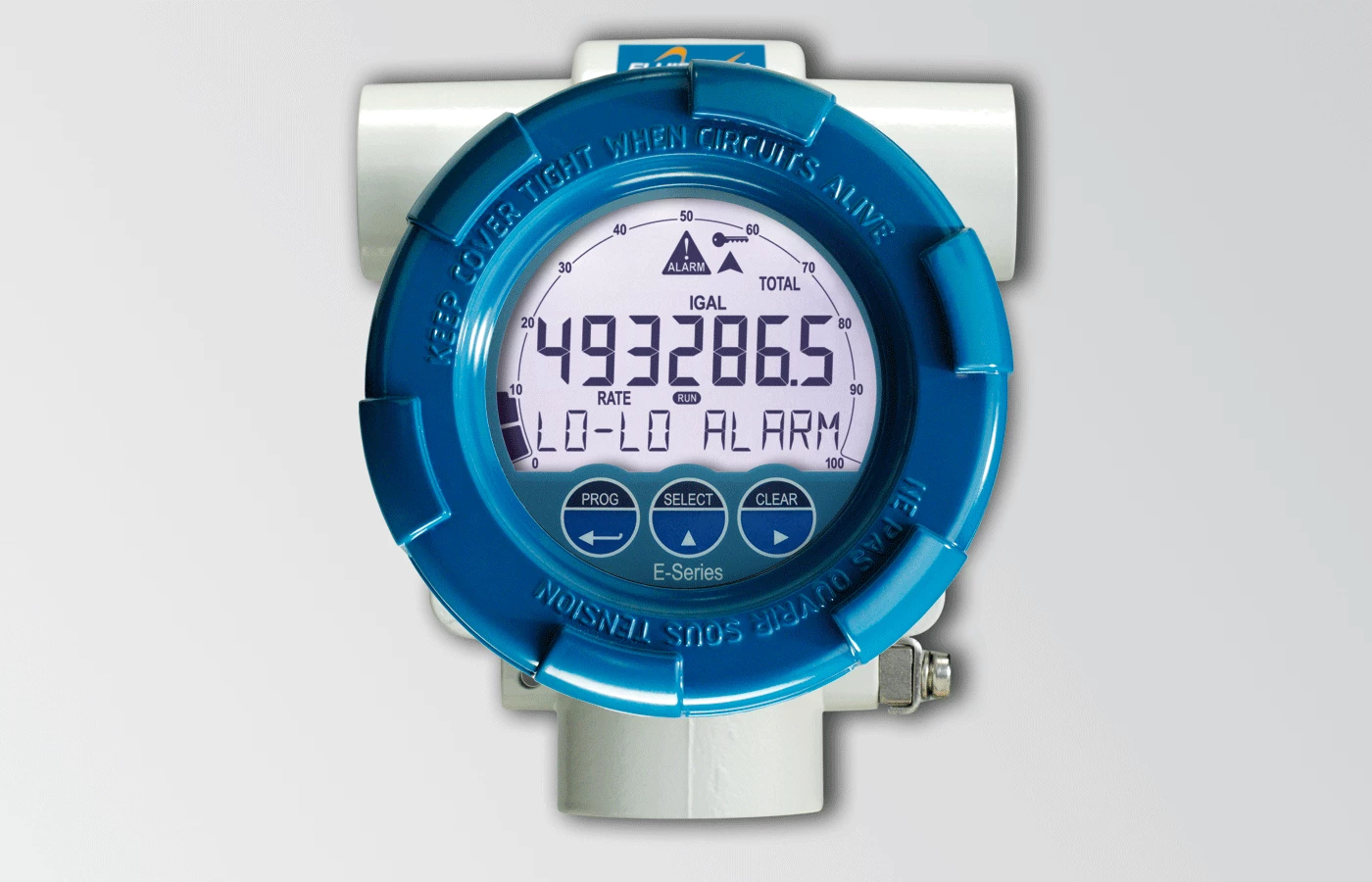

Clear flashing LED backlight in case of an alarm.
Auto backup of settings and running totals.
Ambient temperature: -40°C to +70°C (-40°F to 158°F).
Various accessories are available for this product.

Productinformatie en datasheets →

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

Add to quote

Categories: Displays, Fluidwell, Fluidwell E-series, Brands, UPDATE

Beschrijving

The E018 is one of the top models in our range of explosion proof flow computers. In addition to the average K-Factor, 16 linearization points can be entered. The unit will interpolate between these points greatly enhancing accuracy in any flow range. Moreover, a continuous flow rate monitoring feature is available with high and low flow rate alarm values and four alarm outputs. The E-series is distinguished by its high quality manufacturing and its functionality driven European design.

Ruggedness and reliability is where Fluidwell stands for and it is now available in a comprehensive well designed and purpose driven Explosion proof flow monitor / totalizer.

Advantages

Saves time and improves flexibility with the through-glass keypad: no need to open the front cover.
Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation.
Durable high-grade stainless steel 316L Ex d enclosure withstanding extreme (maritime) conditions.
