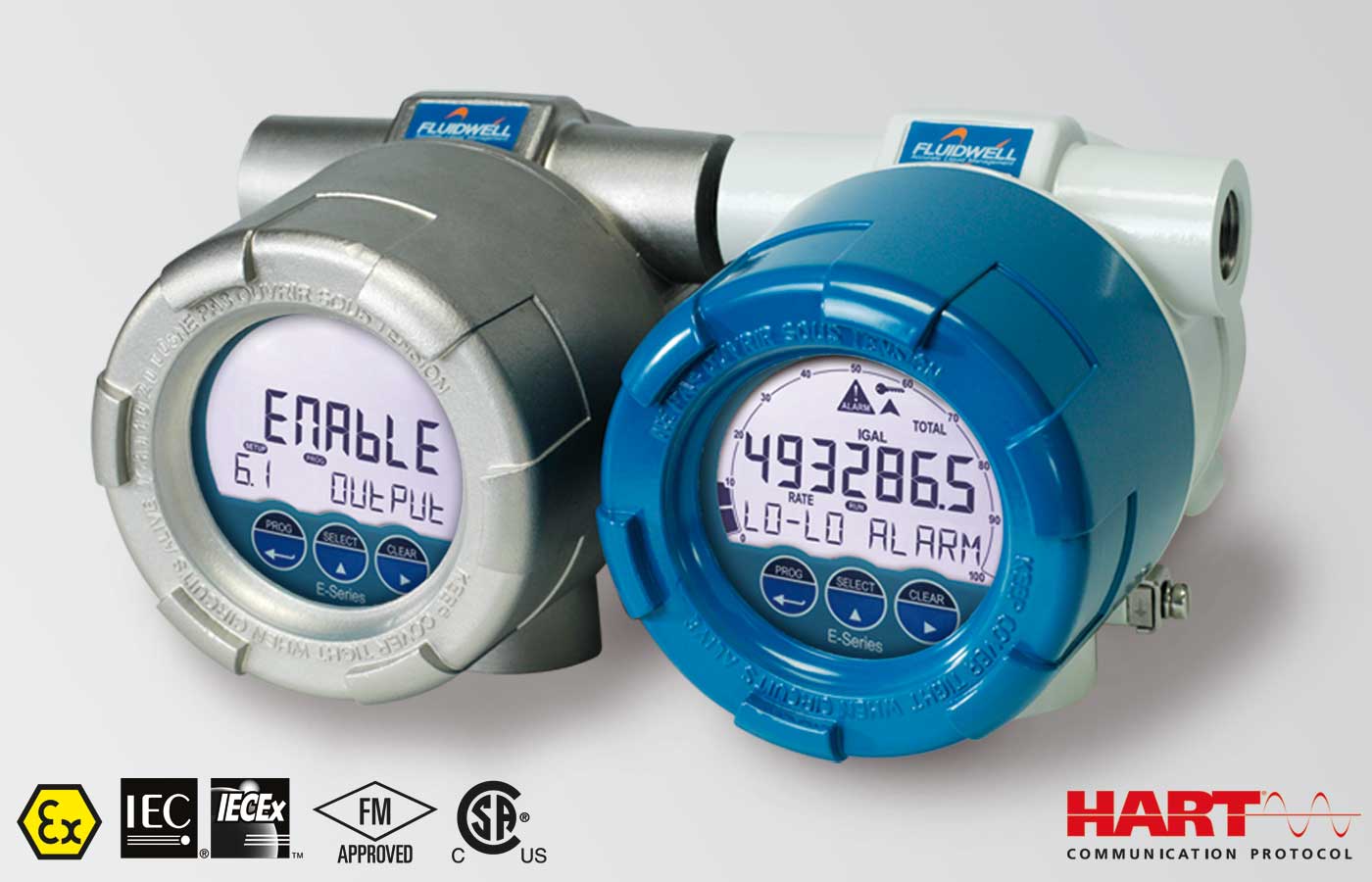

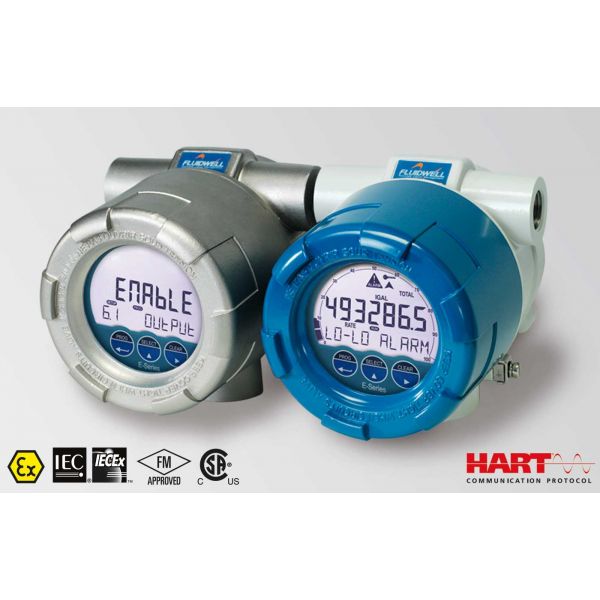

Fluidwell E Series – E018 Explosion proof – Flow rate Monitor / Totalizer

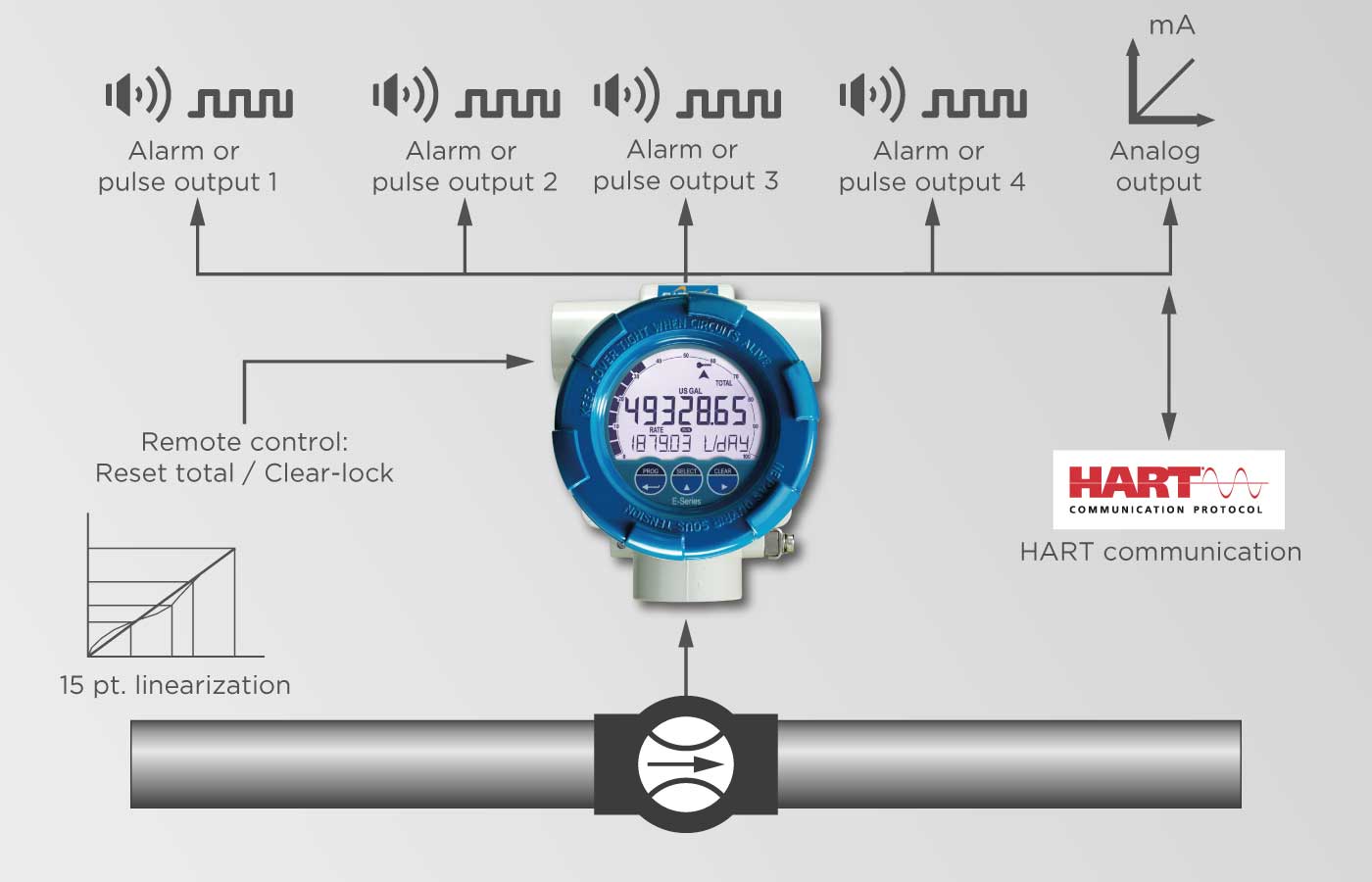

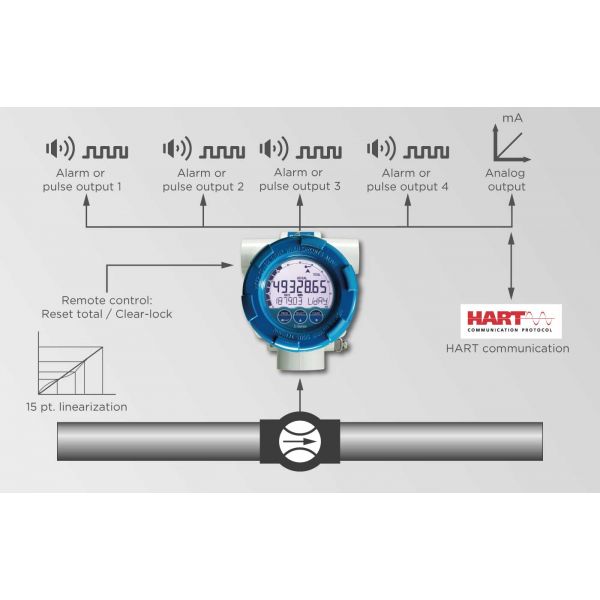

With linearization, high / low alarms, analog and pulse signal outputs and HART Communication.

  • Explosion proof according ATEX, IECEx, FM and CSA C-US.
  • Aluminum or high grade stainless steel Ex d enclosure.
  • Easy installation with the spacious chamber and plug & play connectors.
  • Cost saving with an easy to install, 1” NPT thread for direct flowmeter mounting.

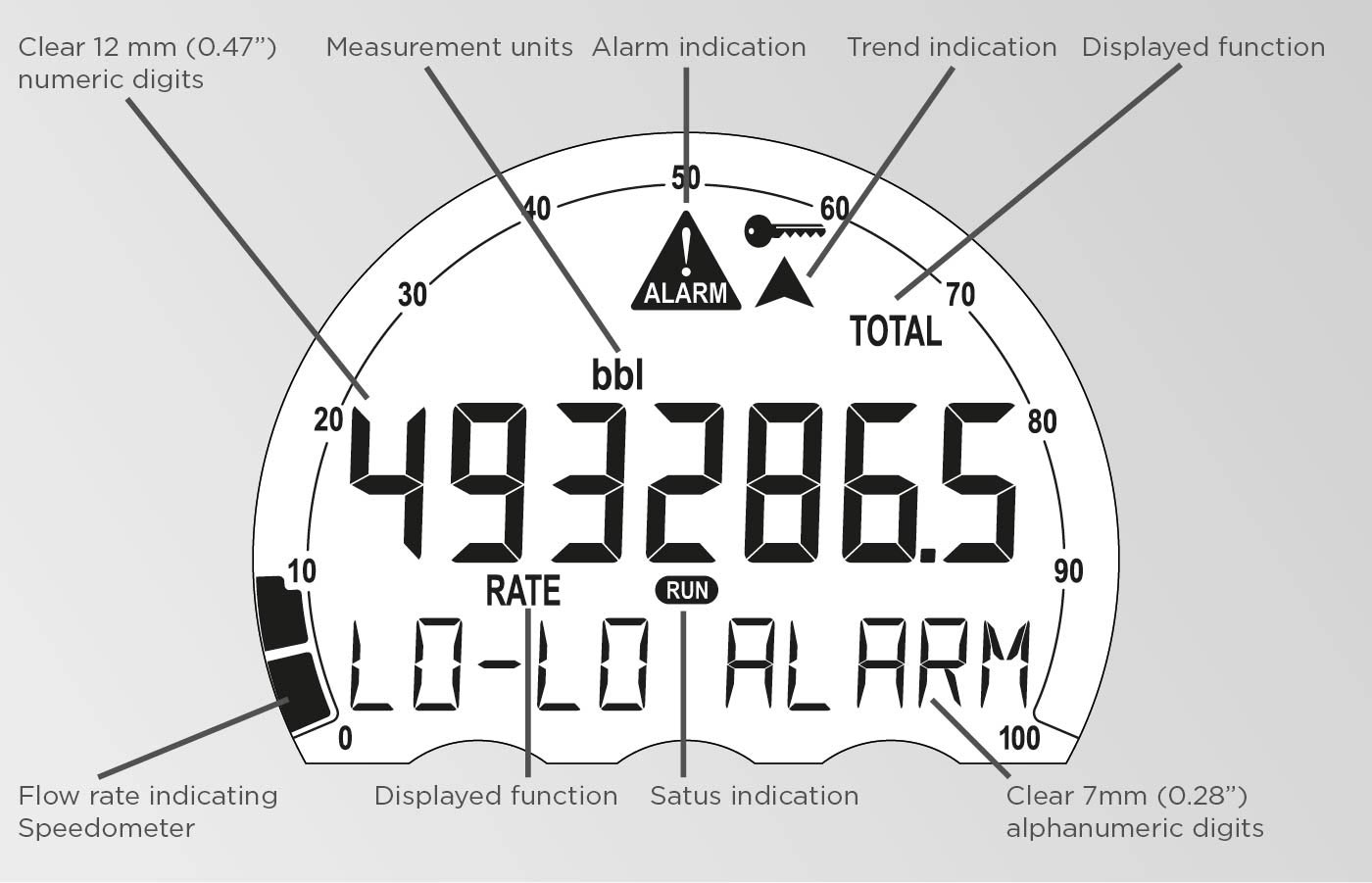

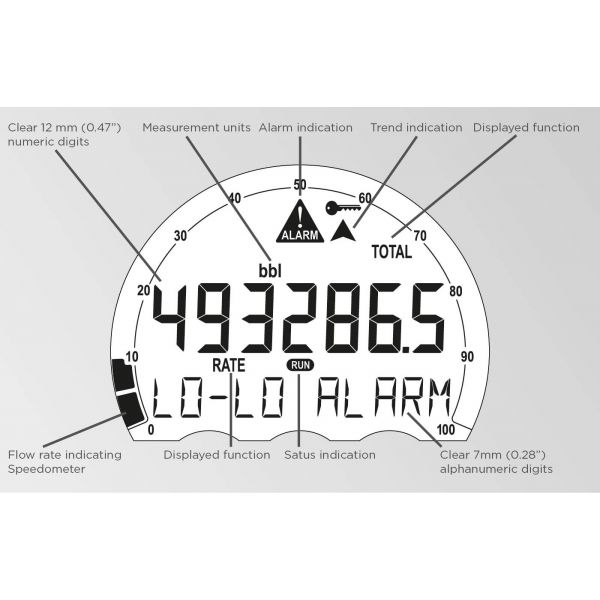

  • Key information at a glance as the display shows flow rate, total, measuring units and a flow rate indicating speedometer.
  • High and low flow rate alarm monitoring.
  • 15 point linearization of the flow curve – with interpolation.
  • 7 digit flow rate / total and 11 digit accumulated total.

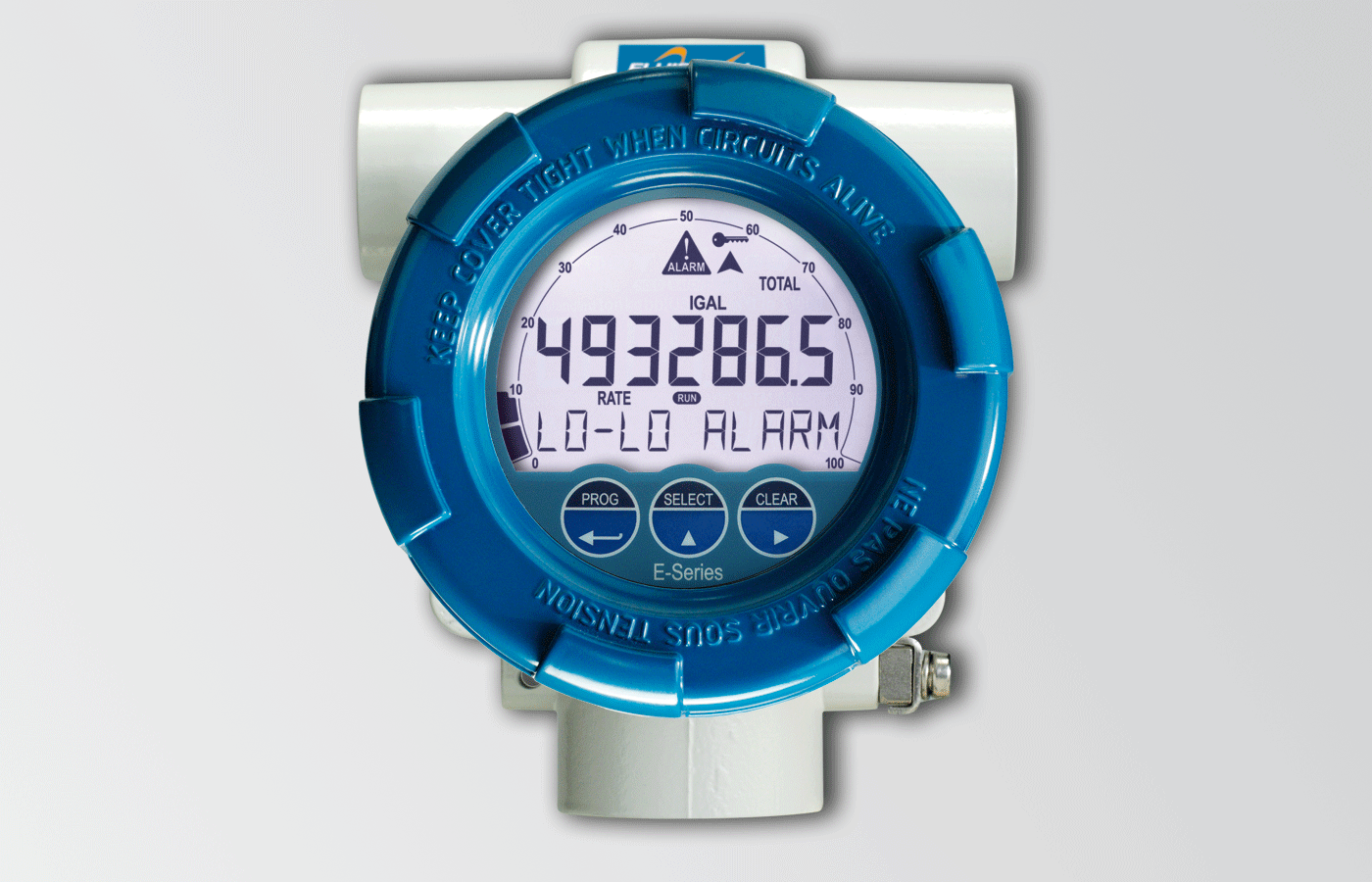

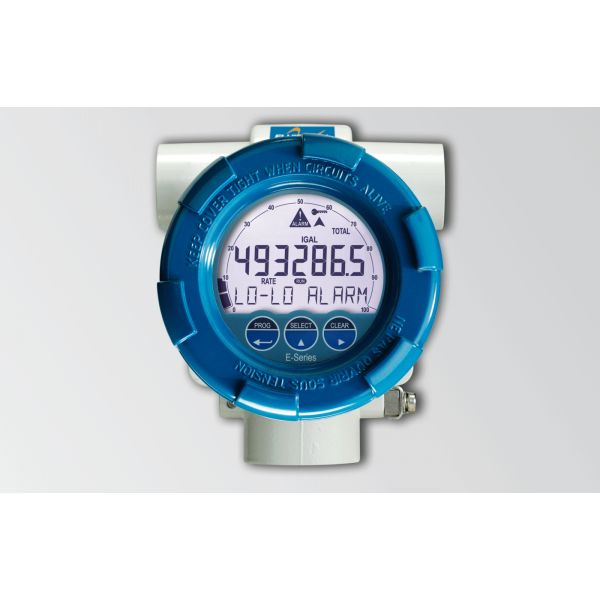

  • Clear flashing LED backlight in case of an alarm.
  • Auto backup of settings and running totals.
  • Ambient temperature: -40°C to +70°C (-40°F to 158°F).
  • Various accessories are available for this product.
