Explosion-proof
IO-link

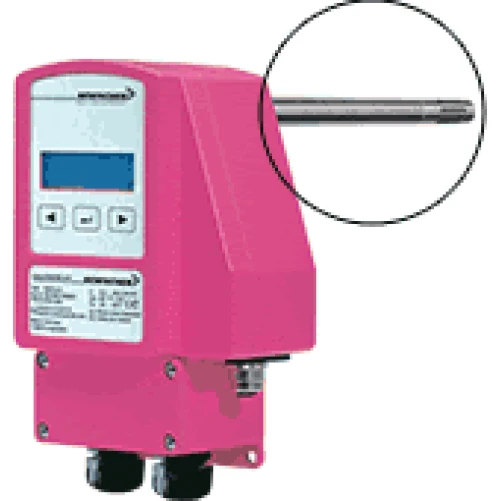

The RedCos-D is an explosion-proof temperature/humidity transmitter from Rotork-Schischek. This model is specially designed for measuring temperature and/or humidity for HVAC systems and rooms in hazardous areas, among others. Together with the ExPro-C sensor, the RedCos-D is certified for use in Zone 2 (gas) and 22 (dust) hazardous areas. Its compact size, IP66 protection and universal functions ensure safe operation even under extreme conditions. The RedCos-D is easy to program on-site without additional measure and or tools.
| Weight | 1 kg |
|---|---|
| Brand | Rotork-Schischek, Schischek |
| Range (°C) | -40 ... +80, -40 ... 125, Not desired |
| Range (%RV) | 0 ... 100, Not desired |
| Output | (0) 4 ... 20 mA / 0 ... 10 V |
| Nutrition | 24 VAC / DC |
| Assembly | Channel (rear sensor), Channel and room (both), Room (bottom sensor) |
| Tube length (mm) | 100, 150, 200, 50, Not desired |
