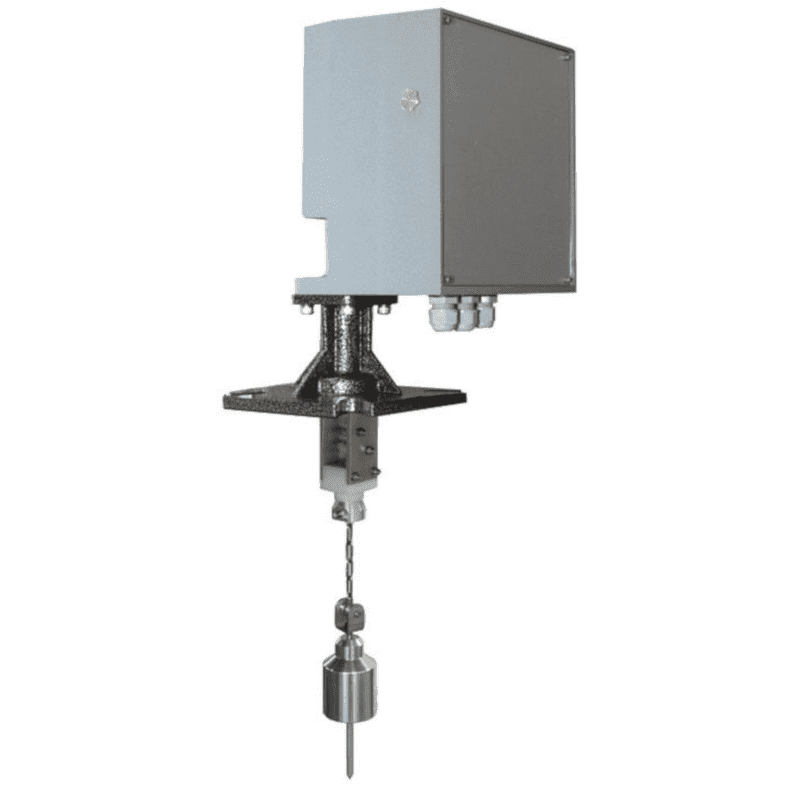

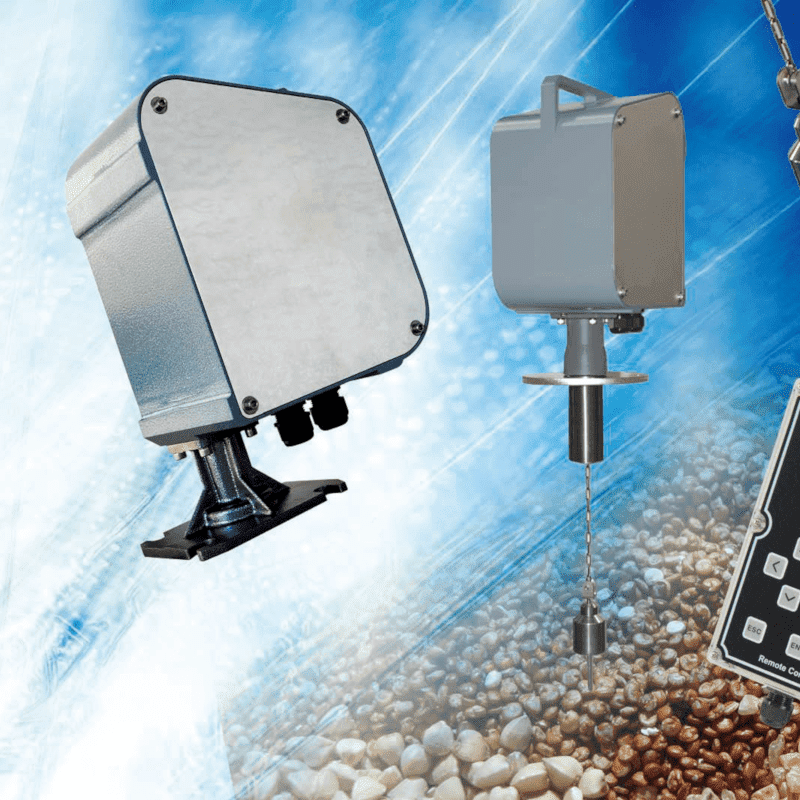

Electromechanical level measuring system EE300 series

Features:

• Regulated by a microprocessor, it is multifunctional and easy to implement.
• It can be set for two alarm signals, for high and low. The output contact is 3A/250V SPDT.
• The LED display can show the level position or the percentage of material in the container. The upper display shows the percentage; tons/ meters. The lower display shows the height of the material level in the container; meters/inch/foot.
• One fixed 4~20mA analog output.
• Broken cable alarm: if the cable breaks, the inverter will stop the motor and this will be indicated on the inverter.
• Cover alarm: If the measuring weight and wire rope are covered by incoming material, the control panel will automatically indicate it.
• Manual Start Mode or Automatic Timer Start Mode.
• LED display value can be set to show actual storage amount or remaining tank capacity.
• The measurement weight will be retracted at the preset zero point (tank bottom), to prevent the measurement weight from sliding into the tank drain and causing equipment damage.
• Upper display can be used to show different units proportionally (such as ton/liter/height, etc...)
