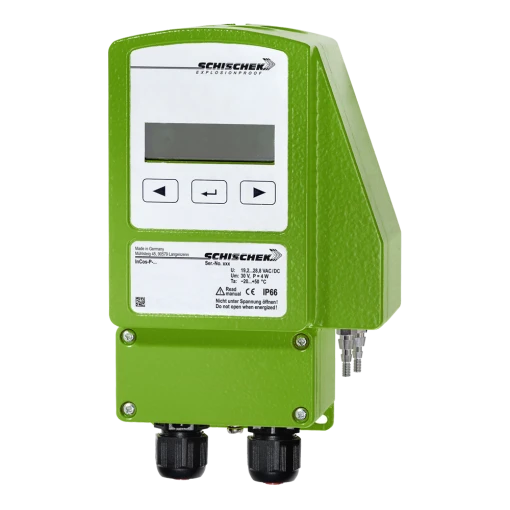

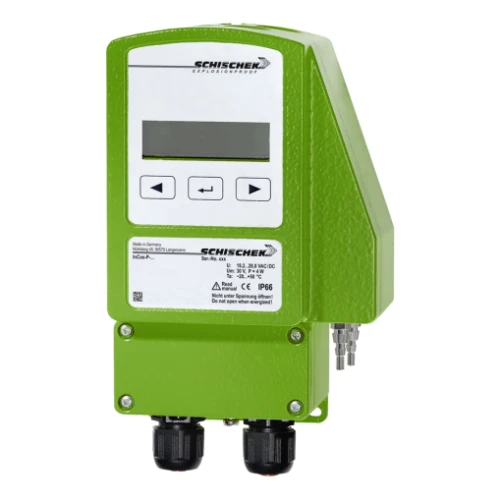

Pressure transducer 20 Pa ... 7,500 Pa INCOS series

⚠️ Due to the implementation of a new ERP system and production issues, delivery times for Schischek Rotork explosion-proof products are significantly delayed. Please contact us for more information.

€1.020,33

The Rotork-Schischek InCos-P differential pressure transmitter is the ideal solution for measurements in very low pressure ranges (with sensors from 100 Pa (0.001 Bar) to 7,500 Pa (0.075 Bar). This InCos-P model is perfect for measurements in HVAC systems.

Productinformatie en datasheets →

Pressure range (Pascal)

Output

Nutrition

Electrical connection

Clear

Checking current stock status? Then contact us or use the live chat.

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

Add to quote

SKU: InCos-P Categories: Differential pressure transmitters air side, Brands, Schischek Tag: InCos-D Series

Beschrijving

Analog differential pressure transmitter InCos

For HVAC systems and overall industry
All parameters adjustable on site without additional tools
Display 2×16 digits, indication of measured value, illuminated, switchable
Integrated terminal box
Robust aluminum housing with IP66 protection class
Optionally available in stainless steel or with offshore / marine coating

Accessories:

Mounting bracket MKR for round air ducts (diameter up to 600mm) - € 32,50
2 meters of pressure hose (inner diameter 6 mm) and 2 plastic fittings - € 16.00

5/5 - (1 stemmen)

Extra informatie

Weight	1 kg
Pressure range (Pascal)	100, 1250, 250, 2500, 500, 5000, 7500
Brand	Rotork-Schischek, Schischek
Output	(0) 4 ... 20 mA / 0 ... 10 V
Nutrition	24 VAC / DC
Electrical connection	2 x M16 x 1.5

Downloads

Product Documents

Documents

Data sheet
