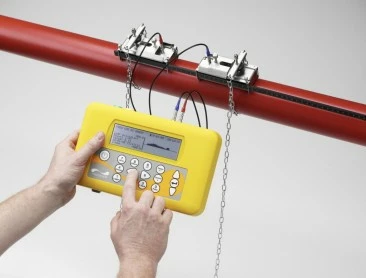

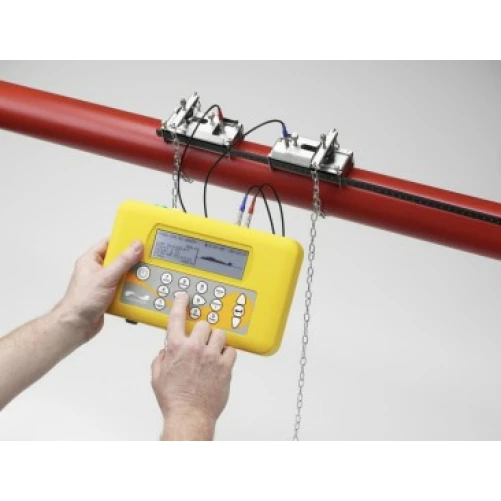

PORTAFLOW: Clampable portable ultrasonic flow and energy meter 13-2000 mm
For measurements of water and other liquids, works on batteries
Portable ultrasonic flowmeter - Liquids

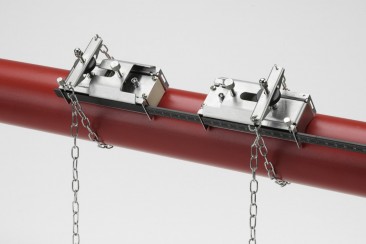

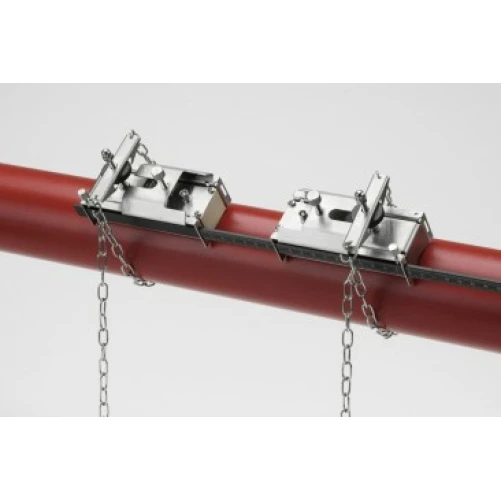

- Transducers: pipes with an outer diameter of 13 mm to 2000 mm in magnetic guide rail
- Pulse, 4-20 mA and USB outputs.
- Battery operated with integrated data logger
 Features:

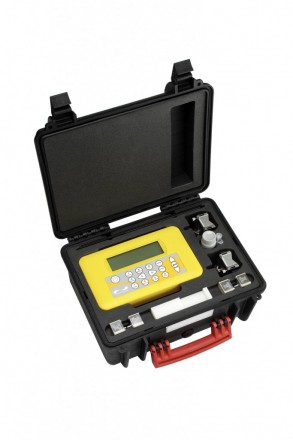

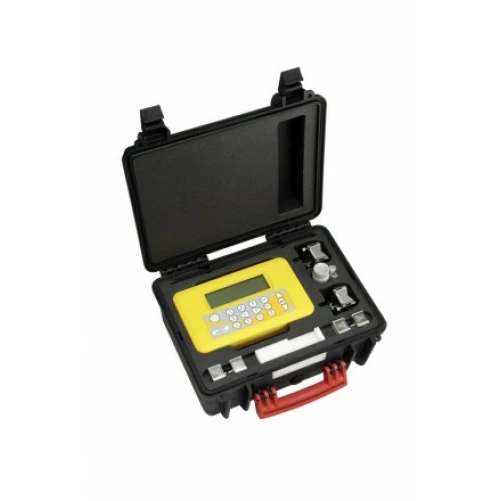

♦ Carrying case: - The PF330 comes in a wear-resistant IP67 carrying case.
♦ Current range - 0.1 m/sec to 20 m/sec bi-directional
♦ Screen - Graphic screen of 64 x 240 pixels
♦ Programming via control panel with 16 keys
♦ Battery or mains power rechargeable battery
♦ Battery life - 14 hours from fully charged battery, depending on load
♦ Power supply - 110 - 240VAC +/-10% power supply via PSU
♦ 4 user-selectable languages
♦ CE approved
♦ Lightweight, hand-held instrument with large, easy-to-read graphic display
♦ Two types of transducers; A and B
'A' transducers: tubes with outside diameters from 13 mm to 115 mm.
'B' transducers: pipes with outside diameters from 50 mm to 2000 mm.

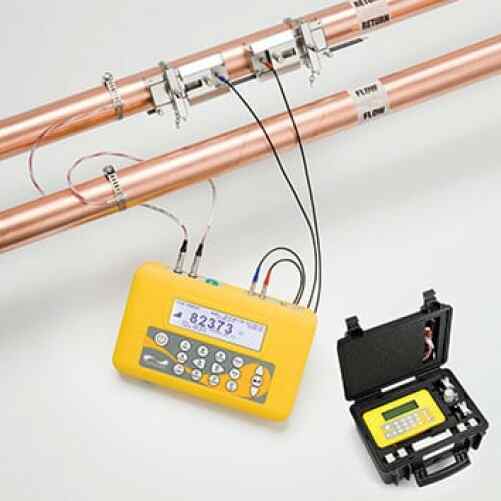

♦ Clamp on PT100 temperature sensors, 0°C - 200°C
♦ USB for downloading logged data to PC
♦ Live data logging available via USB output
♦ Rechargeable battery with an operating time of up to 14 hours
